Specifications
Model Number :
KM-PP16-H10
Warranty :
One Year
Product Type :
Plain Plug Gauge
Measurement Object :
Inner Hole Size
Gauge Type :
GO and NOGO Gauge
Material :
Tool Steel
Surface Treatment :
Precision ground and lapped
Usage :
for Working and Inspection
Package :
ABS Box
Brand Name :
KM
Certification :
ISO DIN GB RoHS
Place of Origin :
Shaanxi, China
Payment Terms :
T/T,L/C,D/P,D/A,PayPal,etc.
Supply Ability :
50000pieces/Month
Delivery Time :
Within 15days
Packaging Details :
ABS Box 10*2*1.5cm/Piece 0.22kg/Piece
Description

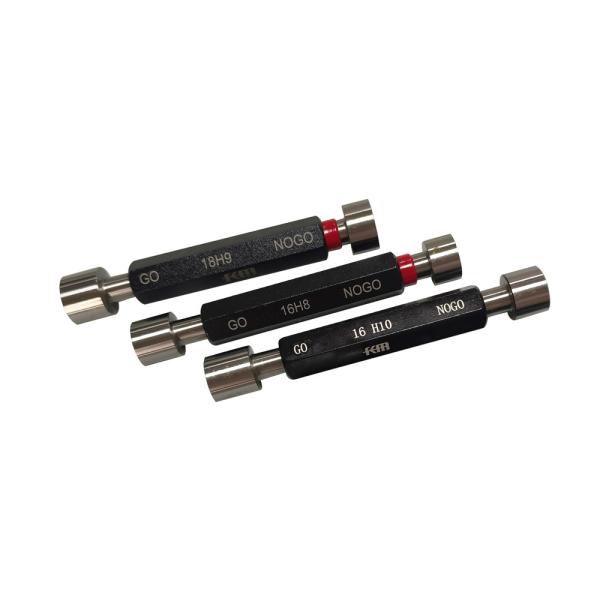

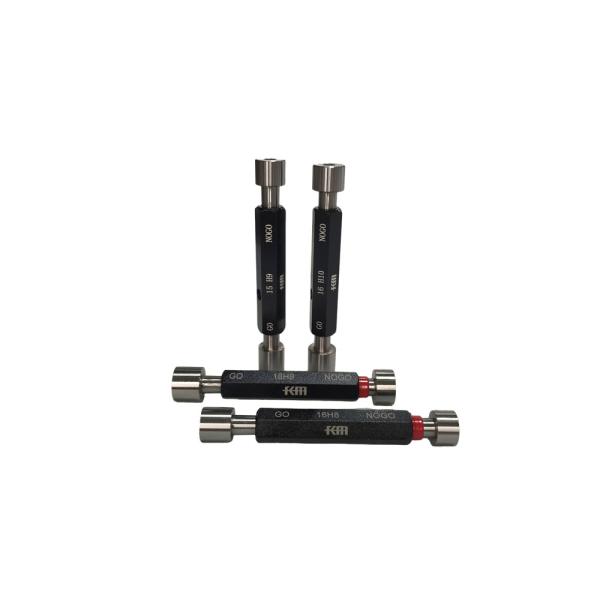

Precision Plain Plug Gauge GO and NOGO Set for Hole Size Inspection

Smooth plug gauges can be customized in various specifications according to user needs. These precision measuring tools serve as dimensional benchmarks and comparative measurements. The structure is simple, typically consisting of solid forms with accurate size and shape, such as cylinders or cones.

When ordering, please specify requirements (example: 8 plug gauge 6H GO and NOGO).

Deko Corp provides a complete line of smooth plug gauges available in sizes from 1.8 to 300. These tools are used to measure the inner hole size of workpieces. Each set includes both maximum limit size (NOGO end) and minimum limit size (GO end) components.

Key Features
  • Smooth plug gauge design for precise measurements.
  • Available in multiple accuracy grades: H6, H7, H8.
  • GO, NO GO, and combination GO/NOGO types available.
  • Conforms to DIN7162 standard.
  • Wear-resistant and corrosion-resistant construction.
  • Stable structure for reliable performance.

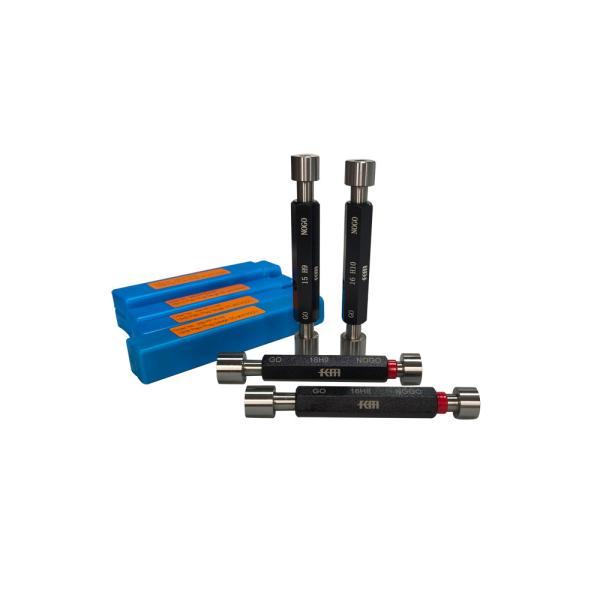

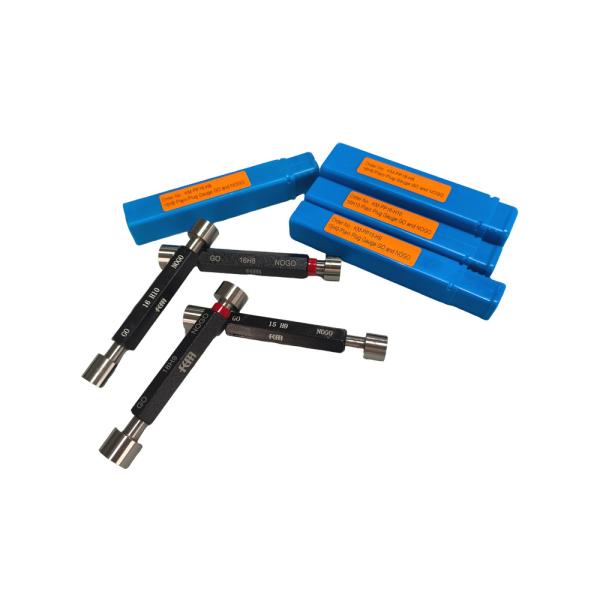

  • Supplied in protective fitted case.
Specifications
Size Accuracy
1.8




H6


H7


H8
2.0
2.5
3.0
3.5
4.0
4.5
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
…..
300
Applications
  • Hole inspection: Primary use for inspecting workpiece hole sizes to ensure compliance with design specifications.
  • Quality control: Essential tool in production quality control to verify dimensional accuracy.
  • Standardized production: Ensures consistency across production batches, improving efficiency and product quality.
Usage Precautions
  • Inspect gauge surfaces for cleanliness and defects before use - ensure markings are clearly visible.
  • Use only during valid calibration period with proper certification.
  • Maintain measurement environment at approximately 20°C.
  • Apply minimal force - avoid pushing, rotating, or tilting the gauge.
  • Insert/remove gauge along hole axis only.
  • Clean thoroughly after each use to maintain accuracy.
Frequently Asked Questions
Who are we?

Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.

What products do we carry?

Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges,

bevel protractors, gauge blocks, levels, and more.

How about after-sales service?

All products come with a one-year warranty. We replace any defective components upon receipt. Our strict calibration and inspection

processes ensure reliable product quality.
