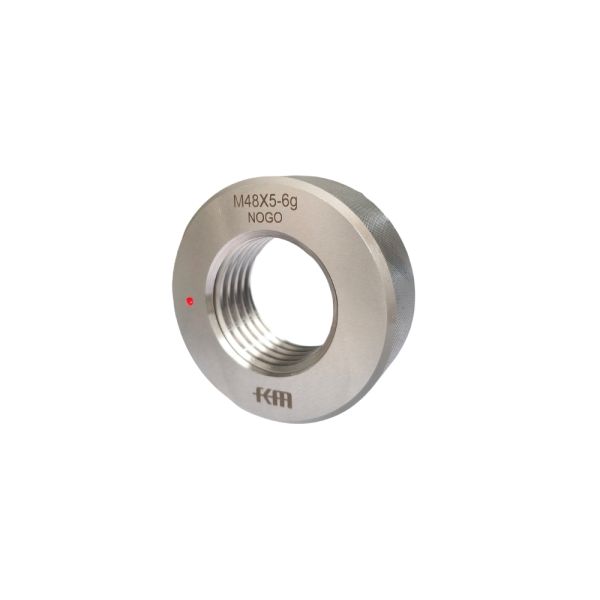

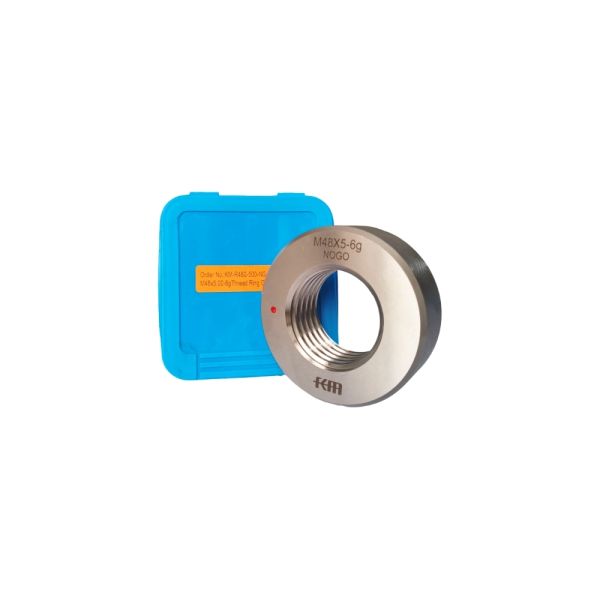

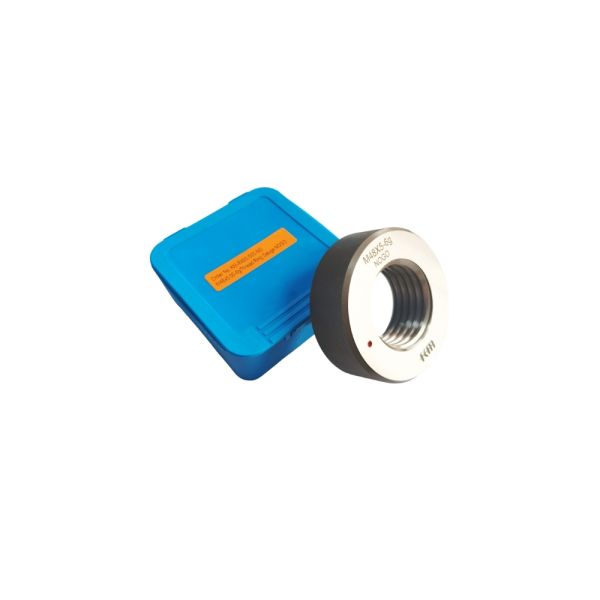

NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
Specifications
Brand Name :
KM
Model Number :
KM-R480-500-NG
Certification :
ISO DIN GB RoHS
Place of Origin :
Shaanxi, China
Payment Terms :
L/C,D/A,D/P,T/T,etc.
Supply Ability :
50000pieces/Month
Delivery Time :
Within 15days
Packaging Details :
ABS Box 10*10*5cm/Piece 1.08kg/Piece
Warranty :
One Year
Type :
Thread Ring Gauge
Standard :
DIN13, DIN2280-89
Measurement :
Metric
Thread specification :
M48x5-6g NOGO
Shape :
Round
Measurement Object :
External Product Threads on Screws, Bolts
Usage :
for Working and Inspection
Accuracy :
6g,6h,7g,7h,8g,8h, etc.
Package :
ABS Box
Description
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
Metric thread ring gauges are precision inspection tools used for checking the thread of outside diameter on screws, bolts and threaded rods. These gauges typically have normal accuracy classifications including 6g, 6h, 7g, 7h, 8g, and 8h.
We utilize first-grade thread machining centers and measuring equipment to provide high precision thread ring gauges to customers worldwide.
Gauge Types
Thread ring gauges come in GO and NOGO types. The GO ring gauge is machined to a minus tolerance for verification at maximum material limit, while the NOGO thread ring gauge is machined to a plus tolerance for verification at minimum material limit.
Key Features
  • Metric thread ring gauge system
  • Multiple accuracy options: 6g, 6h, 7g, 7h, 8g, 8h
  • Available in GO and NOGO types
  • Conforms to DIN13 and DIN2280-89 standards
  • Wear-resistant and corrosion-resistant construction
  • Stable structure for easy operation
  • Includes protective fitted case
Product Specifications
Order No. Size Coarse Fine Accuracy
KM-R001 M1.0 0.25 0.20 3h 4h 5g6g 5h4h 5h6h 6e 6f 6g 6h 7g6g 7h6h 8g 8h
KM-R011 M1.1 0.25 0.20
KM-R012 M1.2 0.25 0.20
KM-R014 M1.4 0.30 0.20
KM-R016 M1.6 0.35 0.20
KM-R018 M1.8 0.35 0.20
KM-R020 M2.0 0.40 0.25
KM-R022 M2.2 0.45 0.25
KM-R025 M2.5 0.45 0.35
KM-R030 M3.0 0.50 0.35
KM-R035 M3.5 0.60 0.35
KM-R040 M4.0 0.70 0.50
KM-R050 M5.0 0.80 0.50
KM-R060 M6.0 1.00 0.75 0.50
KM-R080 M8.0 1.25 1.00 0.75
KM-R100 M10.0 1.50 1.25 1.00
KM-R120 M12.0 1.75 1.50 1.25
KM-R140 M14.0 2.00 1.50 1.25
KM-R160 M16.0 2.00 1.50 1.00
KM-R180 M18.0 2.50 2.00 1.50
KM-R320 M320


Applications
These threaded ring gauges are primarily used to measure thread diameter and pitch with high precision. Featuring wide measurement range and simple operation, they are widely used in machinery manufacturing, aerospace, automotive production, and other industrial fields.
Usage Precautions
  • Avoid touching the working surface with bare hands to prevent rust
  • Store properly on stable surfaces - not on machine tool holders or guide rails
  • Inspect regularly for damage, rust, or deformation
  • If rust appears, soak in gasoline, wipe carefully, and apply anti-rust oil
  • Never store working surfaces together to prevent adhesion damage
  • Clean thoroughly after use and store in dry conditions
Packing & Shipping
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
Company Profile
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
Frequently Asked Questions
1) Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China.
2) What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
3) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and etc..
4) Do we accept customization?
Yes, OEM services are available.
