Specifications
Type :
Special Calipers
Model Number :
KM-DOGF-300-1
Measurement Object :
Measuring External Narrow Dimensions
Package :
ABS Box
Delivery Time :
Within 15days
Range :
0-300mm/0-12"
Application :
Measuring Narrow, Deep and Tiny Exter
Payment Terms :
T/T,L/C,D/P,D/A,PayPal,etc.
Anvil :
Flat Anvil
Supply Ability :
50000pieces/Month
Measure Method :
Automatic
Feature :
LCD Display for Easy-Reading
Customized :
Available
Packaging Details :
ABS Box 50*25*10cm/Piece 3.00kg/Piece
Warranty :
One Year
Brand Name :
KM
Material :
Stainless Steel
Certification :
ISO DIN GB RoHS
Measurement :
Metric/Inch
Place of Origin :
Shaanxi, China
Description

0-300mm/0-12" Flat Head External Groove Digital Caliper Special Digital Caliper 0.01mm/0.0005" High Resolution


Description:

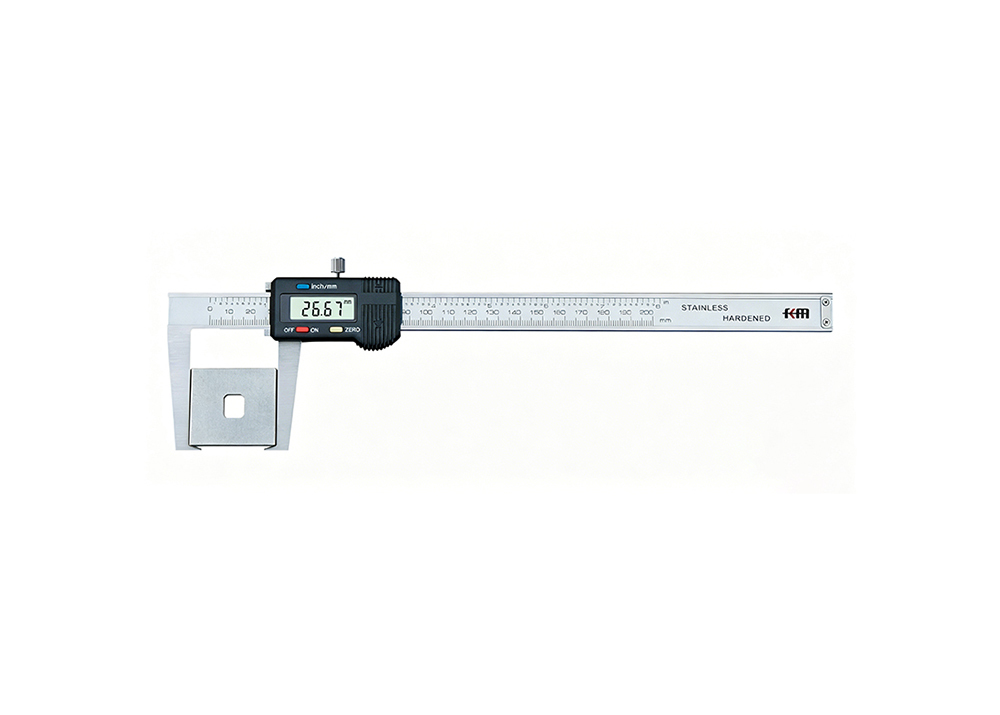

Flat head external groove caliper is professionally used for precise measurement of external groove diameter, external groove width, outer recess depth, shaft groove size, outer step distance and outer wall thickness of various machined workpieces.


Flat tip External Groove Digital Caliper features with a high-resolution LCD screen with 0.01mm / 0.0005”, the caliper supports essential practical functions including ABS, pre+,pre-, mm/inch unit conversion, zero reset, and auto power-off.


Digital Outer Diameter Groove Gauge with flat tip solves the measurement difficulties of narrow outer grooves and tiny outer gaps that ordinary measuring calipers fail to detect, providing precise dimensional data for precision mechanical parts, shaft parts and grooved components.


Quick Detail:

1. Measure external groove dimensions and cavity wall thickness of the work piece

2. ON/OFF, mm/in, Zero setting function buttons.

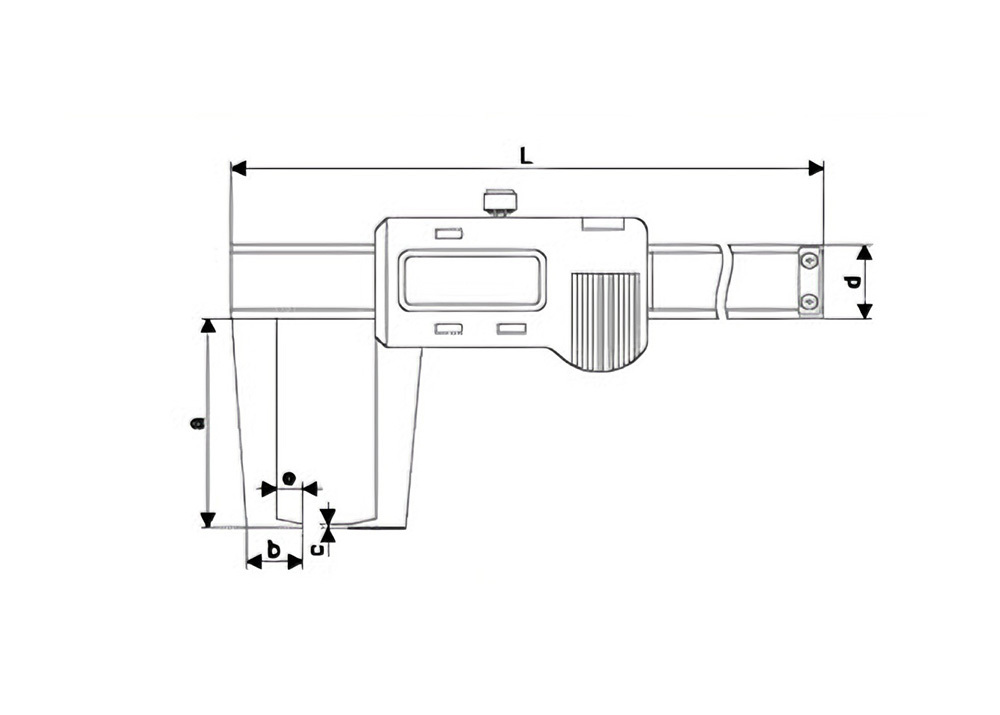

Specification:

Order No.

Range

Resolution

Accuracy

L

a

b

c

d

e

KM-DOGF-150

0-150mm/0-6''

0.01mm/0.0005''

±0.03mm

250

40

15

1

16

KM-DOGF-150-1

0-150mm/0-6''

0.01mm/0.0005''

±0.04mm

250

70

20

2

16

7

KM-DOGF-150-2

0-150mm/0-6''

0.01mm/0.0005''

±0.05mm

290

100

30

2

20

10

KM-DOGF-200

0-200mm/0-8''

0.01mm/0.0005''

±0.04mm

300

50

19

1

16

7

KM-DOGF-200-1

0-200mm/0-8''

0.01mm/0.0005''

±0.04mm

300

80

23

1.5

16

9

KM-DOGF-200-2

0-200mm/0-8''

0.01mm/0.0005''

±0.05mm

340

110

34

2

20

12

KM-DOGF-300

0-300mm/0-12''

0.01mm/0.0005''

±0.04mm

410

60

21

1.5

17

8

KM-DOGF-300-1

0-300mm/0-12''

0.01mm/0.0005''

±0.05mm

440

100

30

2

20

10

KM-DOGF-300-2

0-300mm/0-12''

0.01mm/0.0005''

±0.05mm

480

150

32

2

24

12

KM-DOGF-500

0-500mm/0-20''

0.01mm/0.0005''

±0.06mm

680

100

34

2

24

12

KM-DOGF-500-1

0-500mm/0-20''

0.01mm/0.0005''

±0.07mm

680

150

36

2

24

12

KM-DOGF-500-2

0-500mm/0-20''

0.01mm/0.0005''

±0.08mm

680

200

36

2

24

12
















Applications:

Measuring narrow, deep and tiny external grooves, small gaps and fine slots on shaft and outer surface.


FAQ:

Q1: Is the reading stable when measuring tiny shallow outer grooves?

A: Yes. The flat thin tip structure fits shallow outer grooves perfectly. Combined with high-precision digital sensor and clear LCD screen, it delivers stable, repeatable readings for shallow outer groove measurement.

Q2: Does this caliper support auto power-off to save battery?

A: Yes. The digital external groove caliper adopts auto power-off design. If there is no operation for a period of time, it will automatically power off to extend battery service life.

Q3: Can I switch freely between millimeter and inch units?

A: Sure. Built-in mm/inch conversion button, you can switch measuring units anytime according to your drawing standards (metric or imperial drawing).
