Specifications
Model Number :
KM-DOGF-200-1
Application :
Measuring Narrow, Deep and Tiny Exter
Packaging Details :
ABS Box 50*25*10cm/Piece 3.00kg/Piece
Material :
Stainless Steel
Delivery Time :
Within 15days
Measurement :
Metric/Inch
Measurement Object :
Measuring External Narrow Dimensions
Payment Terms :
T/T,L/C,D/P,D/A,PayPal,etc.
Warranty :
One Year
Feature :
LCD Display for Easy-Reading
Customized :
Available
Type :
Special Calipers
Supply Ability :
50000pieces/Month
Range :
0-200mm/0-8"
Anvil :
Flat Anvil
Brand Name :
KM
Measure Method :
Automatic
Certification :
ISO DIN GB RoHS
Place of Origin :
Shaanxi, China
Package :
ABS Box
Description

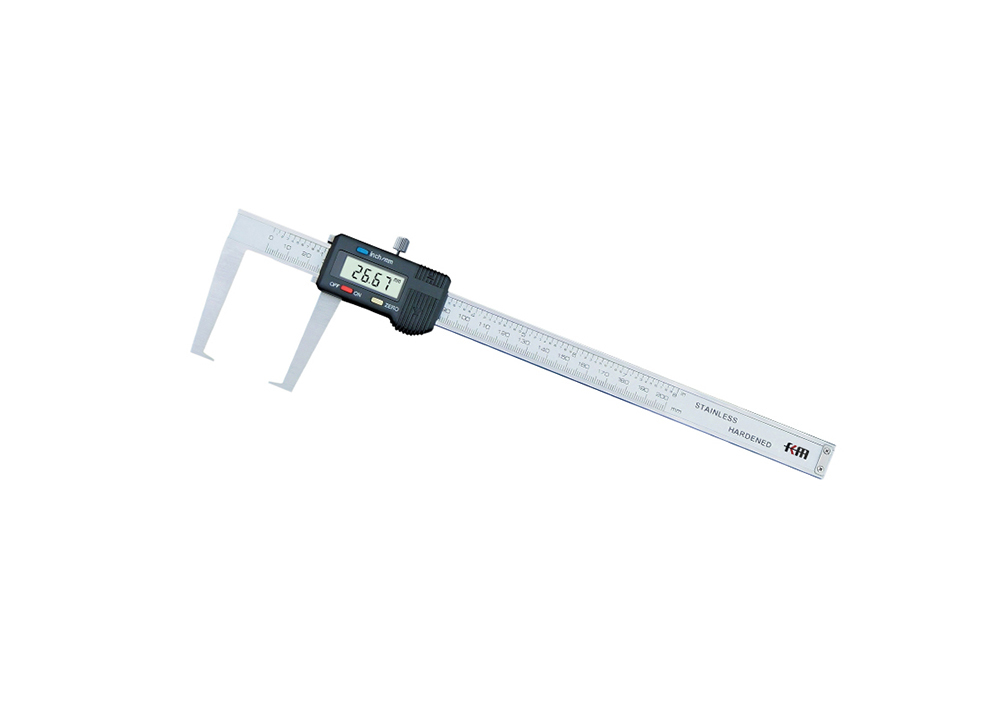

Flat Head External Groove Digital Caliper 0-200mm/0-8" High Precision OEM Measuring Tools Factory


Description:

Flat head external groove caliper is professionally used for precise measurement of external groove diameter, external groove width, outer recess depth, shaft groove size, outer step distance and outer wall thickness of various machined workpieces.


Flat tip External Groove Digital Caliper features with a high-resolution LCD screen with 0.01mm / 0.0005”, the caliper supports essential practical functions including ABS, pre+,pre-, mm/inch unit conversion, zero reset, and auto power-off.


Digital Outer Diameter Groove Gauge with flat tip solves the measurement difficulties of narrow outer grooves and tiny outer gaps that ordinary measuring calipers fail to detect, providing precise dimensional data for precision mechanical parts, shaft parts and grooved components.


Quick Detail:

1. Measure external groove dimensions and cavity wall thickness of the work piece

2. ON/OFF, mm/in, Zero setting function buttons.


Specification:

Order No.

Range

Resolution

Accuracy

L

a

b

c

d

e

KM-DOGF-150

0-150mm/0-6''

0.01mm/0.0005''

±0.03mm

250

40

15

1

16

KM-DOGF-150-1

0-150mm/0-6''

0.01mm/0.0005''

±0.04mm

250

70

20

2

16

7

KM-DOGF-150-2

0-150mm/0-6''

0.01mm/0.0005''

±0.05mm

290

100

30

2

20

10

KM-DOGF-200

0-200mm/0-8''

0.01mm/0.0005''

±0.04mm

300

50

19

1

16

7

KM-DOGF-200-1

0-200mm/0-8''

0.01mm/0.0005''

±0.04mm

300

80

23

1.5

16

9

KM-DOGF-200-2

0-200mm/0-8''

0.01mm/0.0005''

±0.05mm

340

110

34

2

20

12

KM-DOGF-300

0-300mm/0-12''

0.01mm/0.0005''

±0.04mm

410

60

21

1.5

17

8

KM-DOGF-300-1

0-300mm/0-12''

0.01mm/0.0005''

±0.05mm

440

100

30

2

20

10

KM-DOGF-300-2

0-300mm/0-12''

0.01mm/0.0005''

±0.05mm

480

150

32

2

24

12

KM-DOGF-500

0-500mm/0-20''

0.01mm/0.0005''

±0.06mm

680

100

34

2

24

12

KM-DOGF-500-1

0-500mm/0-20''

0.01mm/0.0005''

±0.07mm

680

150

36

2

24

12

KM-DOGF-500-2

0-500mm/0-20''

0.01mm/0.0005''

±0.08mm

680

200

36

2

24

12
















Applications:

Measuring narrow, deep and tiny external grooves, small gaps and fine slots on shaft and outer surface.


FAQ:

Q1: Why choose flat tip external groove caliper instead of ordinary standard calipers?

A: Ordinary caliper jaws cannot go deep into narrow outer grooves and tiny outer gaps, leading to inaccurate measurement or failed measurement. The flat tip design of our external groove caliper perfectly accesses narrow, tiny outer grooves and small slots on shafts, solving common measuring difficulties in shaft machining.

Q2: What workpieces and industries are this digital external groove caliper suitable for?

A: Widely applied in CNC machining, precision machinery processing, auto parts manufacturing, shaft parts processing. It is used for dimensional inspection of shaft parts, grooved components, turned parts and all workpieces with outer grooves and outer steps.

Q3: Can this caliper measure wall thickness and cavity outer wall thickness?

A: Yes. One of its core uses is measuring workpiece external groove dimensions and cavity outer wall thickness, which is widely required in turning and CNC workshop quality control.
