Specifications
Brand Name :
Chitwing
Model Number :
Smart Watch
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
350 X 500 X 346
IMM Tonnage :
80T
Mold Weight :
373kg
Runner :
Cold runner
Mould life :
≥500000 shots
Design software :
3D:UG 4.0, 2D:CAD
Mould base :
LKM
Mold life :
500K shots
Gate type :
3 pin point gates+1 sub gate
Description

Smartwatch Middle Frame Bracket (1*2)

No.22401

Size Gate
Length Width Height
350 500 346 3 pin point gates+1 sub gate
Tool life Surface finish
500k shots Large surface EDM with Charmilles VDI24#
Mold base Standard Part material
Type Three-plates mold PC
Injection/runner type Steel of cavity and core
Cold runner Harden (1*2/S136)

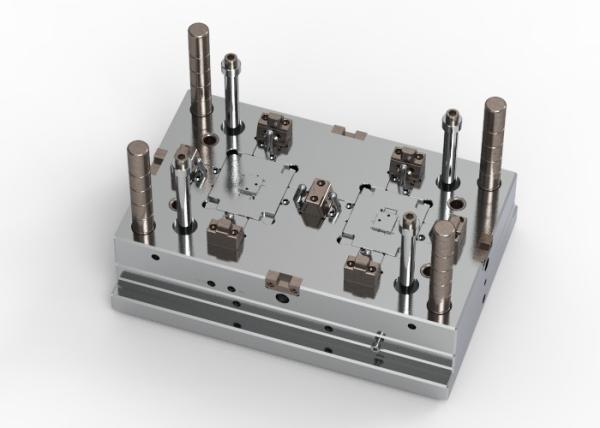

Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401

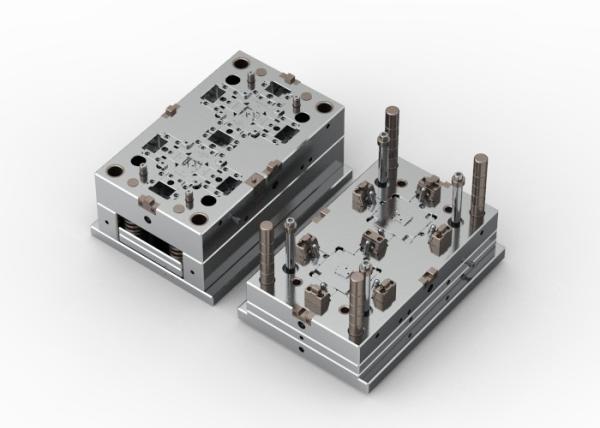

The mold was developed by Chitwing (designed and manufactured), insert molding with steel

sheet, 4 slides, effectively saving the production costs, with shorter cycle time and more aesthetic

molded parts

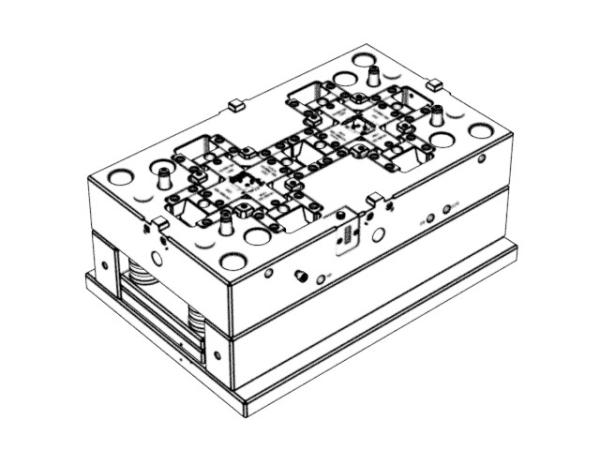

Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401

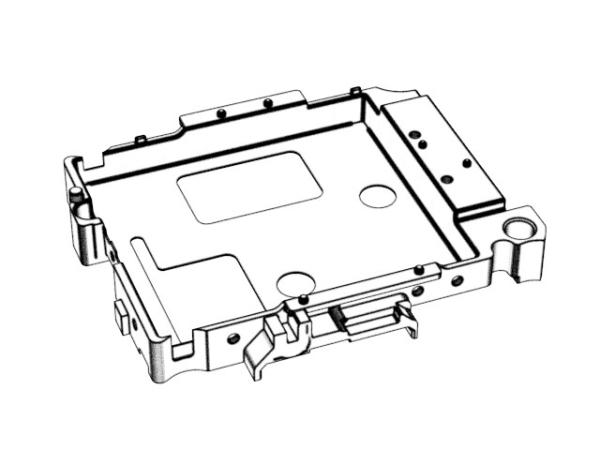

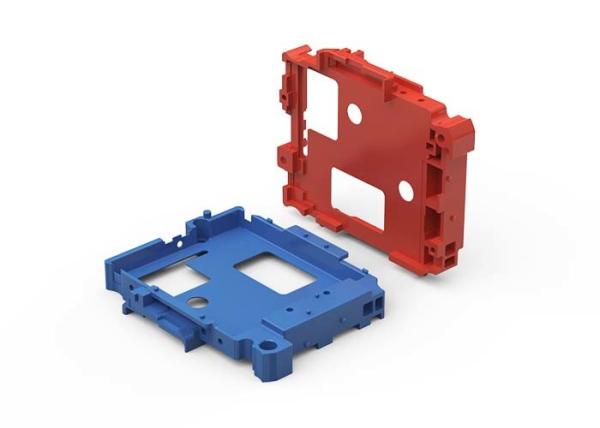

The mold net weight is 373 kg, and fits 80T machine. The part size is 33.3 * 41.7 * 6.6mm, and the

part weight is 1.5g.

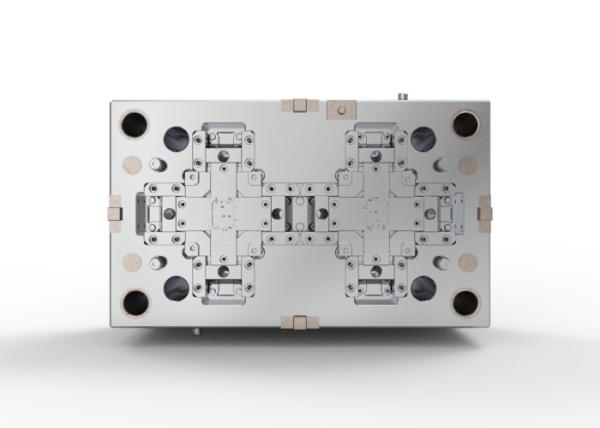

Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401

Display diagram

Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401
