Specifications
Brand Name :
Chitwing
Model Number :
Mobile Phone
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
300.000 X 300.000 X 316.000mm
IMM Tonnage :
110T
Mold Weight :
169.29kg
Mould life :
500，000 shots
Mould base :
LKM
Design software :
3D:UG 4.0, 2D:CAD
Runner :
Cold runner
Mould cavity :
Harden with S136
Part material :
PC+20%GF
Type :
Three-plates mold
Description

Transparent mainboard bracket (1*2)

No.24317

Mold size (mm)
L: 300 H: 316
W: 300
Steel of cavity and core
Harden with S136
Part size (mm)
L: 68.86 H: 3.18
W: 54.22
Part material
PC+20%GF

OEM/ODM：How to customize cost-effective molds / Transparent mainboard bracket (1*2) No.24317

OEM/ODM：How to customize cost-effective molds / Transparent mainboard bracket (1*2) No.24317

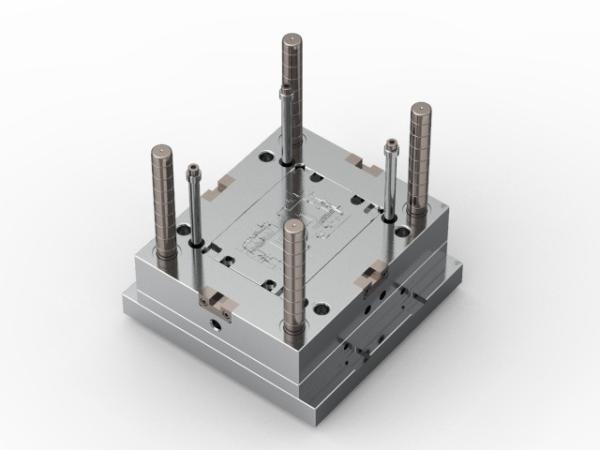

This is a three-plates mold developed (designed and manufactured) by Chitwing with LKM high-quality mold base, self-degating; surface EDM with VDI 27# semi-gloss; mold surface is smooth without roughness and tool life is up to 500k shots; the molded parts have complete details w/o flash; the mold fits 110T machine; mold net weight is 169.29 kg; part weight is about 4.3g

OEM/ODM：How to customize cost-effective molds / Transparent mainboard bracket (1*2) No.24317

Display diagram

OEM/ODM：How to customize cost-effective molds / Transparent mainboard bracket (1*2) No.24317OEM/ODM：How to customize cost-effective molds / Transparent mainboard bracket (1*2) No.24317OEM/ODM：How to customize cost-effective molds / Transparent mainboard bracket (1*2) No.24317OEM/ODM：How to customize cost-effective molds / Transparent mainboard bracket (1*2) No.24317
