Specifications
Brand Name :
Chitwing
Model Number :
Earphone Charging Case
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
350.00 X 400.00 X 351.00
IMM Tonnage :
130T
Mold Weight :
315KG
Design software :
3D:UG 4.0, 2D:CAD
Mould life :
≥500000 shots
Runner :
Hot runner
Mould material :
Harden (1*4/S136)
Description

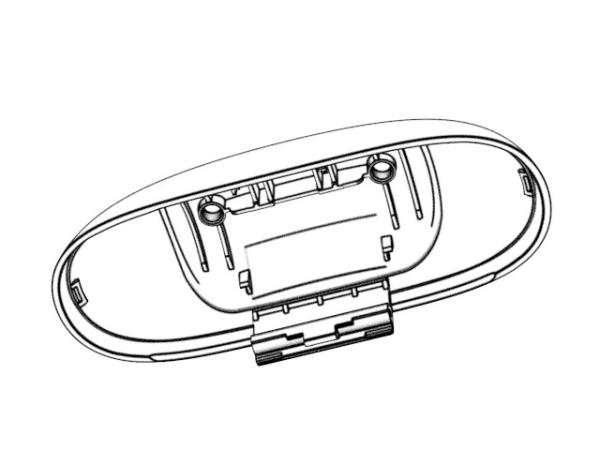

Headphone Charging Box Upper Cover

No.24195

Injection/runner type Length Width Height Net weight
Hot runner 350 400 351 315kg
Tool life 500k shots

OEM / ODM ： Precision Injection Molding & Headphone Charging Box Upper Cover No.24195

Standard mold base P/N: CI3040.8011090

Gate Sub gate (hot runner valve gate turns to cold runner sub gate)
Surface finish 1. A surface polished to SPI-A1
2. Secondary surface polished to 1000#
3. Other surfaces EDM with VDI21# (Makino)
Part material

PC+ABS

OEM / ODM ： Precision Injection Molding & Headphone Charging Box Upper Cover No.24195

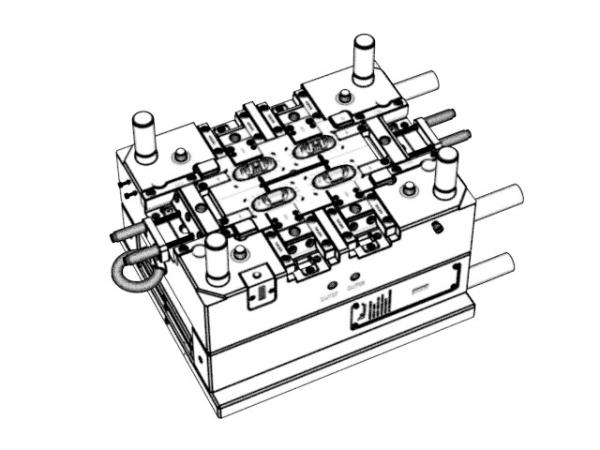

This is a two-plates mold developed and manufactured by Chitwing, meeting LKM standard

Injection/runner type Hot runner
Steel of cavity and core Harden (1*4/S136)

OEM / ODM ： Precision Injection Molding & Headphone Charging Box Upper Cover No.24195

Part weight 4.5g
Part size 62.89X23.96X20.53mm
Features 2 slides, 5+1 gate lifters
IMM Tonnage 130T

OEM / ODM ： Precision Injection Molding & Headphone Charging Box Upper Cover No.24195

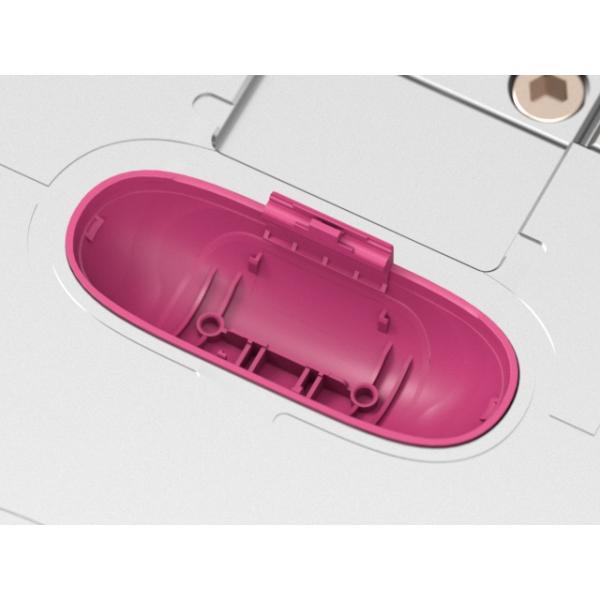

Display diagram

OEM / ODM ： Precision Injection Molding & Headphone Charging Box Upper Cover No.24195

OEM / ODM ： Precision Injection Molding & Headphone Charging Box Upper Cover No.24195OEM / ODM ： Precision Injection Molding & Headphone Charging Box Upper Cover No.24195OEM / ODM ： Precision Injection Molding & Headphone Charging Box Upper Cover No.24195
