OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
Specifications
Brand Name :
Chitwing
Model Number :
Earphone Charging Case
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
400 X 500 X 436
IMM Tonnage :
110T
Mold Weight :
583KG
Type :
Two-plates mold
Part material :
PC+ABS
Injection/runner type :
Hot runner
Gate :
pin point gate (hot runner turns to cold runner)
Features :
2 slides and 6 lifters
Description

Headphone Charging

Box Lower Cover (1*2)

No.24197

Brand chitwing Origin Guangdong, China

Uniform wall thickness, standard mold base FCI3550.A100 B130 C90; the mold size is

400 X 500 X 436mm, the mold net weight is 583 kg, the inner wall is smooth without roughness;

the mold is made from high quality steel, the surface hardness > 600HV, and the mold fits

110T machine;

OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197

Gate Pin point gate (hot runner turns to cold runner)
Tool life 500k shots
Type Two-plates mold
Part material

PC+ABS

The part size is 62.89 * 23.96 * 20.53mm, and the part weight is 8.6g.

OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197

Surface finish 1. A surface polished to SPI-A1
2. Inner surface EDM with VDI21# (Makino)
Injection/runner type Hot runner

OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197

LKM standard, harden the cavity and core with S136 to have higher hardness and

anti-wearing performance; with 2 slides and 6 lifter design, improving the part quality

and productivity

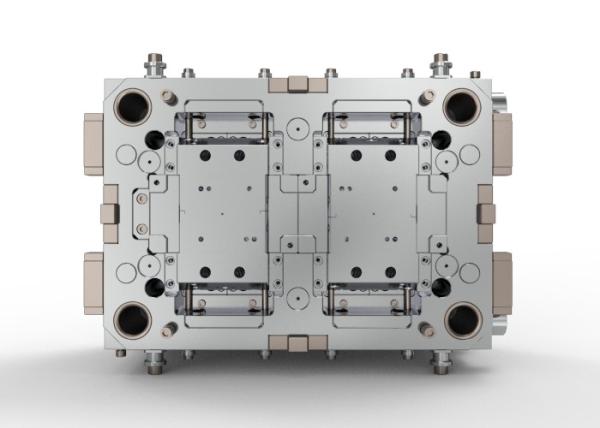

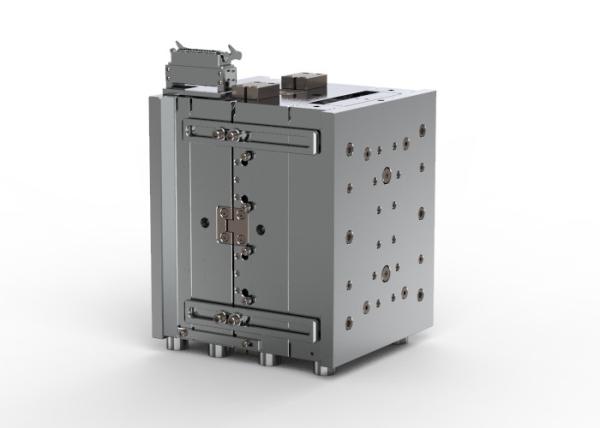

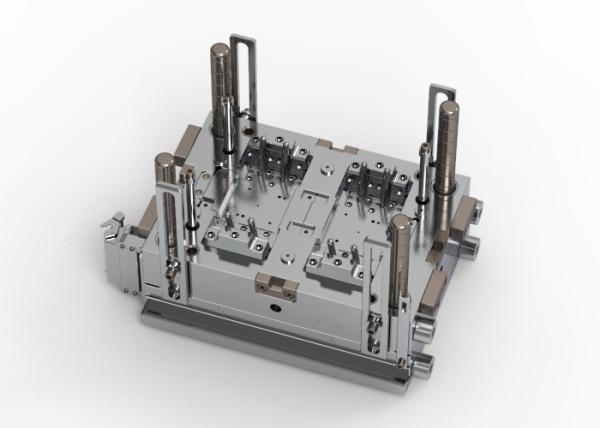

Display diagram

OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197OEM / ODM ： Precision Injection Molding & Headphone Charging Box Lower Cover (1*2) No.24197
