Specifications
Brand Name :
Chitwing
Model Number :
Mobile Phone
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
400.000 X 400.000 X 360.400
IMM Tonnage :
110T
Mold Weight :
366.5kg
Injection type :
Cold runner
Runner type :
Cold runner
Gate :
Pin point gate
Tool life :
500000 shots
Standard :
LKM
Part material :
PC
Mold type :
Custom Electronic Enclosures
Description

Transparent Three-proof

Phone Upper Bottom Housing (1*4)

No.23690

★ Mold base :P/N: FCI3540 6010090
★ Mold size
L: 400 W: 400 H: 360.4
★ Mold weight
366.5kg
★ IMM Tonnage
110T

★ Gate - This is a pin point gate, with flexibility in position. Self-degating and with minimized

gate mark.

★ Tool life - Through harden and polished cavity/core, this tool have long tool life

(≥ 500k shots)

The mold complies with Chinese general

injection mold standard LKM

This is a three-plate mold, easy fillling and

self-degating.Part have clear surface

texture, with short cycle time.
★ Part material - PC

This is a cold runner mold, low tool cost and easier to maintain. Secondary cosmetic

surfaces EDM with VDI30#, molded part has a smooth surface and is easier to demould.
Harden the cavity and core (1*4/S136) with high hardness,greatly enhance the mold's

anti-wear and anti-corrosion ability, with longer tool life,meet the demands of mass

production.
★ Part weight - 3.7g
★ Part size - 67.6X 57.8 X2.58mm
★ Features - 4 x slides and 6 x lifters

OEM / ODM ：Custom Consumer Electronics Molds / Transparent Three-proof Phone Upper Bottom Housing (1*4) No.23690

OEM / ODM ：Custom Consumer Electronics Molds / Transparent Three-proof Phone Upper Bottom Housing (1*4) No.23690

OEM / ODM ：Custom Consumer Electronics Molds / Transparent Three-proof Phone Upper Bottom Housing (1*4) No.23690

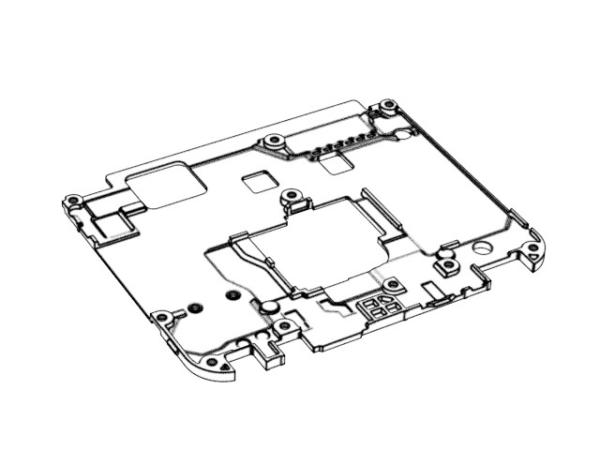

Display diagram

OEM / ODM ：Custom Consumer Electronics Molds / Transparent Three-proof Phone Upper Bottom Housing (1*4) No.23690OEM / ODM ：Custom Consumer Electronics Molds / Transparent Three-proof Phone Upper Bottom Housing (1*4) No.23690OEM / ODM ：Custom Consumer Electronics Molds / Transparent Three-proof Phone Upper Bottom Housing (1*4) No.23690OEM / ODM ：Custom Consumer Electronics Molds / Transparent Three-proof Phone Upper Bottom Housing (1*4) No.23690
