Specifications
Brand Name :
Chitwing
Model Number :
In-Car Products
Certification :
ISO 9001:2015
Place of Origin :
India
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
400.000 X 400.000 X 402.540
IMM Tonnage :
100T
Mold Weight :
425kg
Tool life :
500k shots
Type :
Two-plates mold
Steel of cavity & core :
Harden (1*4/S136)
Part material :
PC
Part weight :
5.51g
Mold base P/N :
CI3540 8010080
Description

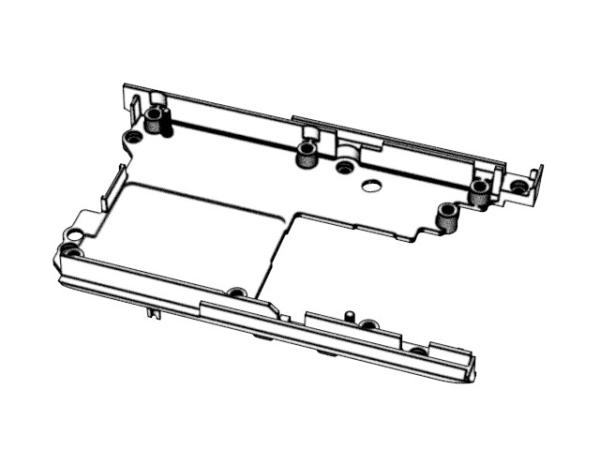

On-board Lower Bracket (1*4)

No.23912

Mold base P/N: CI3540 8010080
Size:[L] 400x [W] 400x [H] 402.54

Net weight:425kg
Standard:LKM
IMM Tonnage:100T

<Gate> - Side gate
<Type> - Two-plates mold
<Injection/runner type> - Hot runner
<Tool life> - 500k shots

 <Surface finish>:
① A surface EDM with SPI-A3
②non-cosmetic surfaces EDM with SPI-B1

★ Steel of cavity & core]: Harden (1*4/S136)

OEM / ODM ： Multi Cavity Injection Mold & On-board Lower Bracket (1*4) No.23912

OEM / ODM ： Multi Cavity Injection Mold & On-board Lower Bracket (1*4) No.23912

Through harden process, cavity/ core with high hardness and anti-corrosion and anit-wearing,

good for long term mass producion.
<Part material> - PC
<Part weight> - 5.51g
<Part size> - 56.90 X 85.68 X 12.25mm

OEM / ODM ： Multi Cavity Injection Mold & On-board Lower Bracket (1*4) No.23912

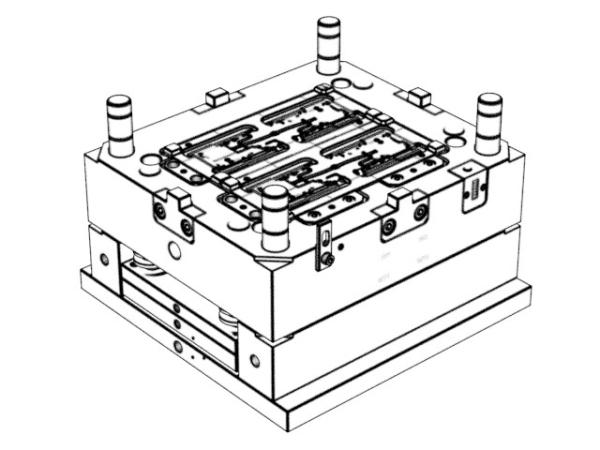

Display diagram

OEM / ODM ： Multi Cavity Injection Mold & On-board Lower Bracket (1*4) No.23912OEM / ODM ： Multi Cavity Injection Mold & On-board Lower Bracket (1*4) No.23912OEM / ODM ： Multi Cavity Injection Mold & On-board Lower Bracket (1*4) No.23912OEM / ODM ： Multi Cavity Injection Mold & On-board Lower Bracket (1*4) No.23912
