Specifications
Brand Name :
Chitwing
Model Number :
Router
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
600 X 600 X 506
Features :
4 x slides
IMM Tonnage :
180T
Mold Weight :
1108KG
Injection/runner type :
Cold runner
Type :
Three-plates mold
Standard mold base P/N :
DCI5060.100150120
Part material :
PC+ABS
Part weight :
100g
Description

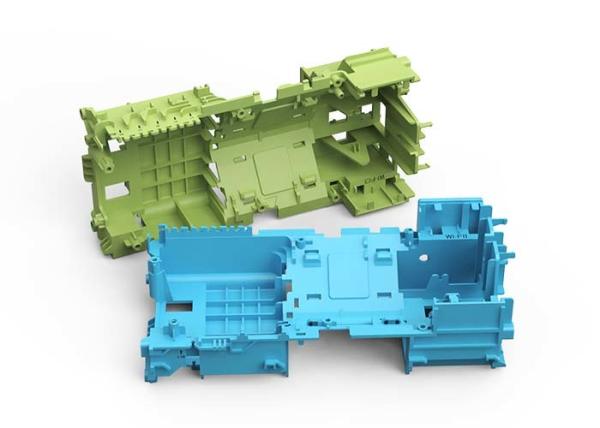

LH Bracket (1*1)

No.23399

Chitwing L × W IMM Tonnage Standard

Standard mold base

P/N DCI5060.100150120

 600x600 LKM
Height Net weight 180T Type
506 1108kg

Three-plates mold

OEM / ODM ： Single Cavity Injection Mold & LH Bracket (1*1) No.23399

Part material Part size Part weight
PC+ABS 97.57 X 201.20 X 67.77mm 100g

The mold is designed by Chitwing to meet customers' cost-effective requirements:

OEM / ODM ： Single Cavity Injection Mold & LH Bracket (1*1) No.23399

☆ Cold runner system and pin point gate;
☆ Inner surface polished to 400# sand paper;

☆ Hardened cavity and core (1*1/S136), with high hardness and anti-wearing performance;

☆ The molded part has smooth surface and stable quality;
☆ Good for PC+ABS molding;
☆ The ejection plate move smoothly.
☆ Short cycle time.

OEM / ODM ： Single Cavity Injection Mold & LH Bracket (1*1) No.23399

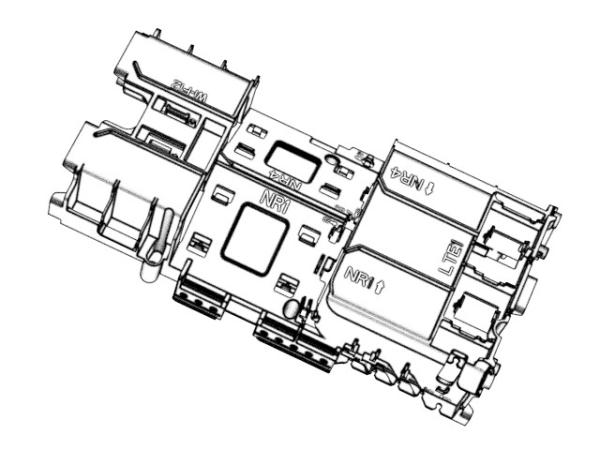

Display diagram

OEM / ODM ： Single Cavity Injection Mold & LH Bracket (1*1) No.23399OEM / ODM ： Single Cavity Injection Mold & LH Bracket (1*1) No.23399OEM / ODM ： Single Cavity Injection Mold & LH Bracket (1*1) No.23399OEM / ODM ： Single Cavity Injection Mold & LH Bracket (1*1) No.23399
