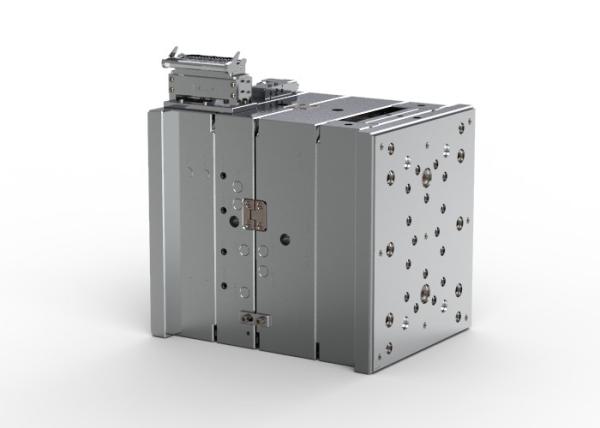

OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
Specifications
Brand Name :
Chitwing
Model Number :
Beauty Apparatus
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
350.000 X 400.000 X 451.000
IMM Tonnage :
180T
Mold Weight :
395kg
Gate :
Submarine gate
Mold life :
500k shots
Type :
Two-plates mold
Design software :
<3D:UG 4.0>/ <2D:CAD>
Mould base :
LKM
Mould type :
Custom mould
mold type :
plastic injection mold
Use :
plastic mold injection
cavity number :
2
Description

Transparent Beauty

Instrument Upper Housing (1*8)

No.24311

Mold size Length Mold base P/N
350
Width CI3040 8012090
400
Height Standard Lifter
451 LKM 9

OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311

Mold weight Fit 180T machine.
385kg

OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311

Gate self-degating, ejection/ part remove smoothly.
Submarine gate

Type

With simple mold structure, minimize tool overall size.

Machine clamping force easy to fine / accurate tune.
Two-plates mold

Part material

Glass fiber reinforced, which not only has high temperature resistance,

good rigidity, but has excellent strength and surface gloss
PPS+30%GF

OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311

Part size Weight 19.5g/pcs
63.56*110.62*20.88mm

Injection/runner type

This is a hot runner mold, can mold good quality

part stably and no material loss of runner.
Hot runner

Surface finish

A surfaces are well polished to sand paper 1000#, with nice

glossiness, free of flow mark, clear details and nice looking.

Steel of cavity & core

The cavity and core are made from 1*8/S136 harden, with high

hardness, anti-corrosion, anti-wearing, and have long tool life.

Display diagram

OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311
