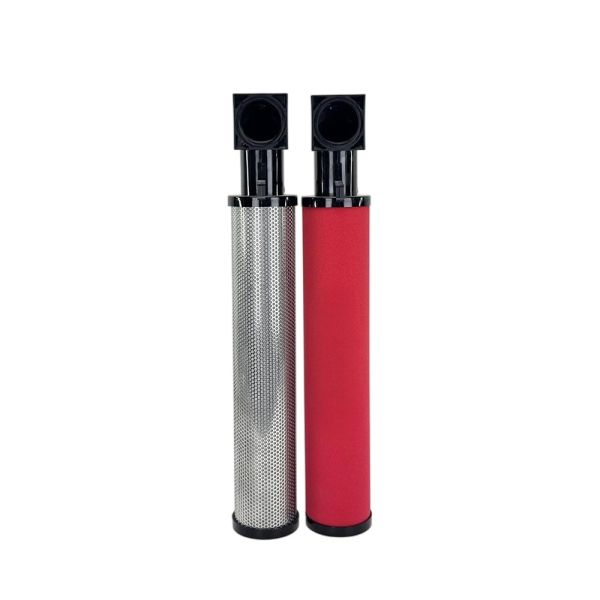

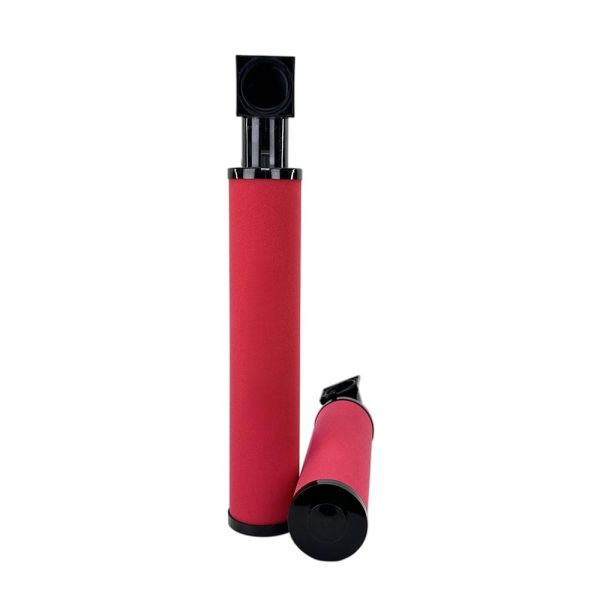

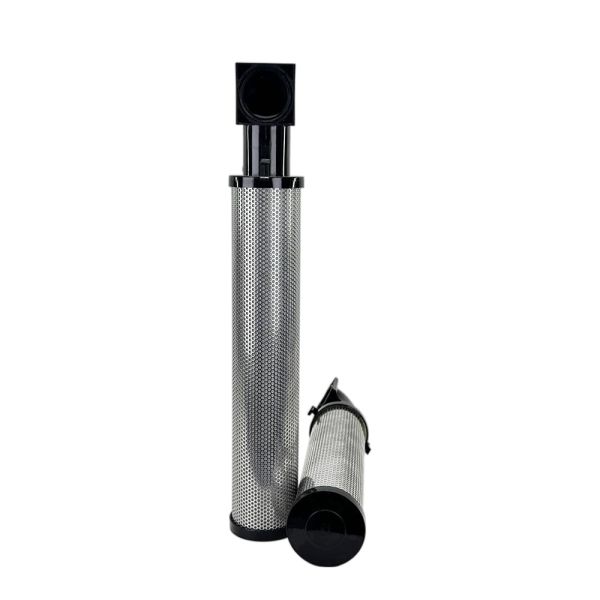

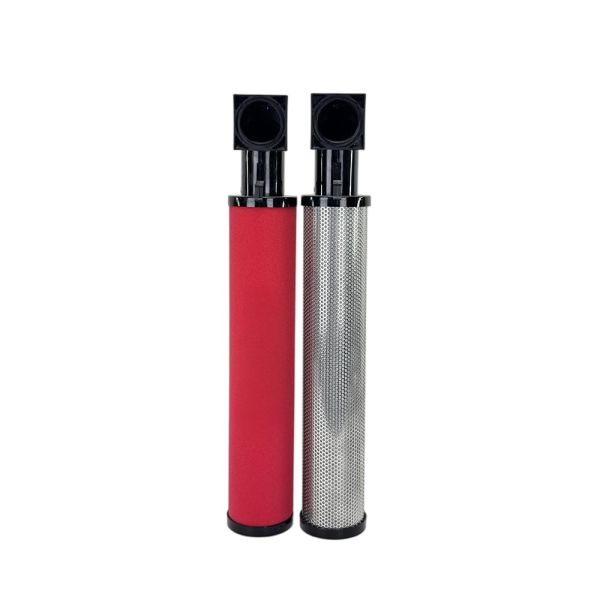

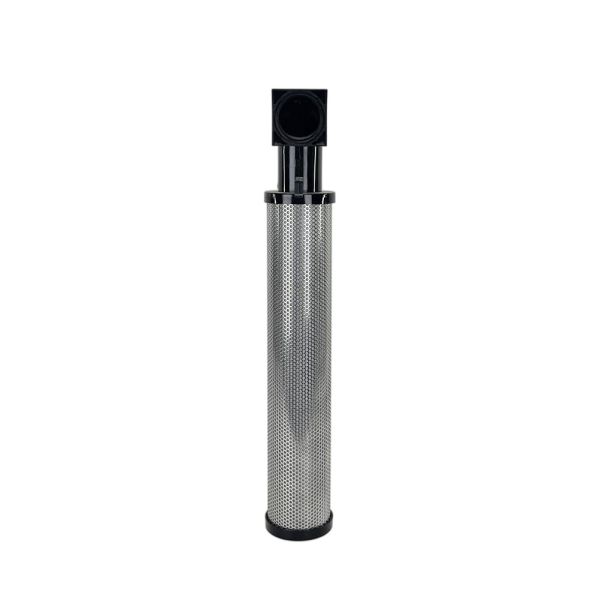

High Flow Coalescing Filter Element - Model 88343272

The 88343272 is a high capacity oil removal cartridge engineered for compressed air systems requiring both particulate filtration and oil mist elimination. It captures solid contaminants down to 1 micron including dust, rust, and pipe scale, while reducing residual oil content to 0.5 ppm. The micro fiberglass depth media efficiently separates water droplets and oil aerosols.

Rated at 13 Nm3/min, this element supports demanding applications such as laser cutting assist gas headers, multiple electronics SMT assembly cells, and sandblasting cabinets with several nozzles. The tall 410 mm body with 88 mm diameter provides extended media depth for lower face velocity and longer service intervals. Clean pressure drop is ≤0.01 bar, delivering 5-7% energy savings over the 8000 hour service life.

The 88343272 fits standard large diameter filter housings. Engineering plastic end caps and Buna-N seals ensure reliable operation from 1.5 to 80°C and pressures up to 2.0 MPa. Weight is 0.85 kg, providing robust media volume while remaining manageable for maintenance personnel.

• 1 micron nominal rating - Removes dust rust and pipe scale effectively
• 0.5 ppm residual oil - Eliminates oil mist without separate coalescer
• Micro fiberglass media - High efficiency separation in tall package
• 13 Nm3 min flow rate - Supports medium to large pneumatic networks
• 0.01 bar pressure drop - Delivers 5-7% compressor energy savings
• 8000 hour service life - Long lasting for continuous operation
• Large 88x410 mm dimensions - Low face velocity for deep particle capture
• 0.85 kg weight - Easy handling during filter change

• Laser cutting assist air - Clean oil-free gas for stable laser optics
• Electronics SMT lines - Oil and dust free air for pick and place machines
• Sandblasting systems - Clean air for consistent nozzle performance
• Industrial pneumatic networks - Protects valves cylinders and tools
• Point of use filtration - Final stage before sensitive equipment

• 24 hour dispatch - Stock items ready for immediate shipment
• Low MOQ - One piece accepted for trial and evaluation
• OEM drawing service - Custom end caps seals or packaging available
• Factory direct pricing - Competitive for bulk orders of 1000+ pieces monthly
• Full compliance - CE RoHS and ISO8573-1 certification provided

• Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
• Shipment:
  1. By Air (Fedex/DHL)
  2. By Sea
