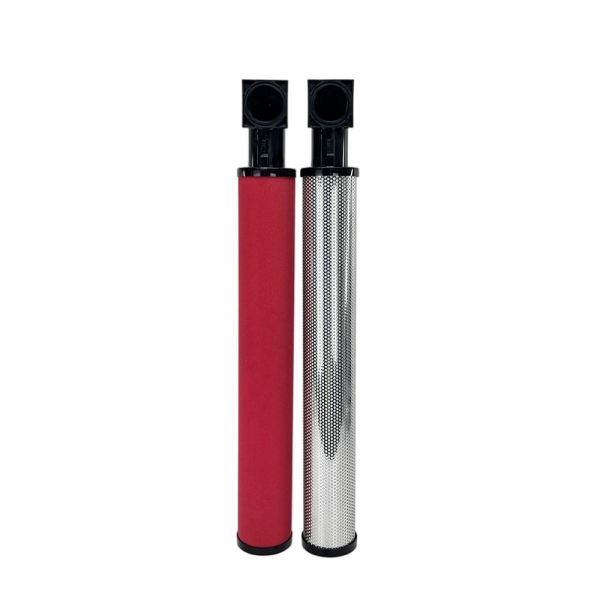

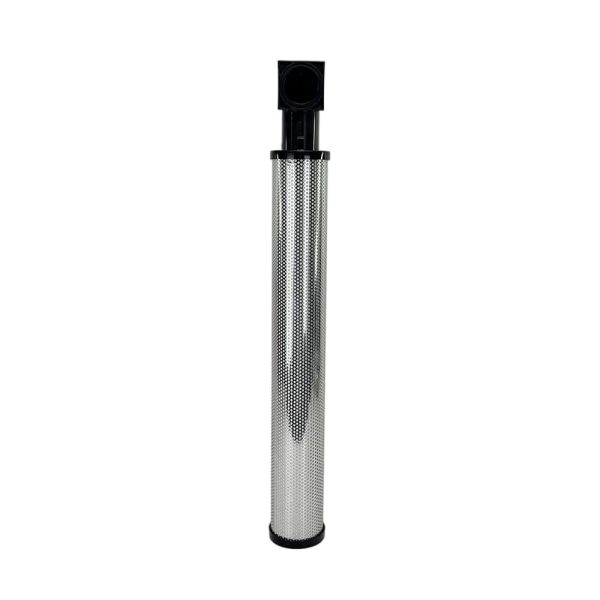

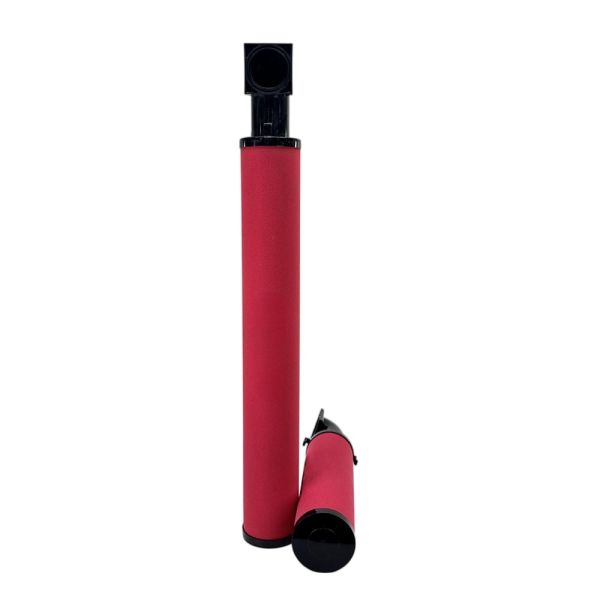

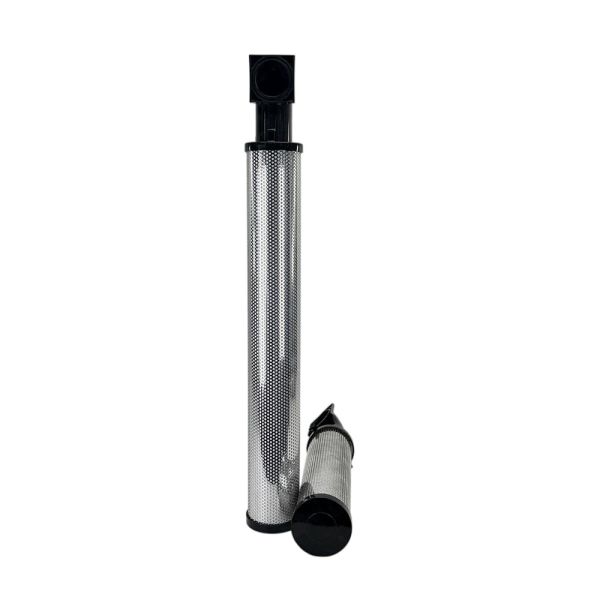

High Capacity Coalescing Filter Element - Model 88343421

The 88343421 is a heavy duty oil removal cartridge engineered for large scale compressed air systems requiring high flow rates and extended service intervals. It captures solid contaminants down to 1 micron including dust, rust, and pipe scale, while reducing residual oil content to 0.5 ppm. The micro fiberglass depth media efficiently separates water droplets and oil aerosols.

Rated at 23 Nm3/min, this element supports central plant headers, multiple laser cutting tables, electronics assembly lines, and heavy sandblasting systems with continuous high volume demand. Clean pressure drop is ≤0.01 bar, delivering 5-7% energy savings over the 8000 hour service life.

The 88343421 fits standard large diameter filter housings. Engineering plastic end caps and Buna-N seals ensure reliable operation from 1.5 to 80°C and pressures up to 2.0 MPa. Weight is 1.5 kg, reflecting substantial media volume while remaining manageable for replacement.

• 1 micron nominal rating - Removes dust rust and pipe scale effectively
• 0.5 ppm residual oil - Eliminates oil mist without separate coalescer
• Micro fiberglass media - High efficiency separation in large package
• 23 Nm3 min flow rate - Supports central plant and high volume lines
• 0.01 bar pressure drop - Delivers 5-7% compressor energy savings
• 8000 hour service life - Long lasting for continuous heavy duty
• 1.5 kg weight - Substantial media volume for extended intervals
• Buna-N seals - Reliable from 1.5 to 80°C up to 2.0 MPa

• Laser cutting central headers - Clean oil-free gas for multiple tables
• Electronics SMT assembly lines - Pre filtration for entire production floor
• Sandblasting heavy systems - Removes contaminants for continuous operation
• Industrial pneumatic networks - Main line protection for valves and tools
• High volume point of use - Final pre clean before sensitive equipment

• 24 hour dispatch - Stock items ready for immediate shipment
• Low MOQ - One piece accepted for trial and evaluation
• OEM drawing service - Custom end caps seals or packaging available
• Factory direct pricing - Competitive for bulk orders of 1000+ pieces monthly
• Full compliance - CE RoHS and ISO8573-1 certification provided

• Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
• Shipment:
  1. By Air (Fedex/DHL)
  2. By Sea
