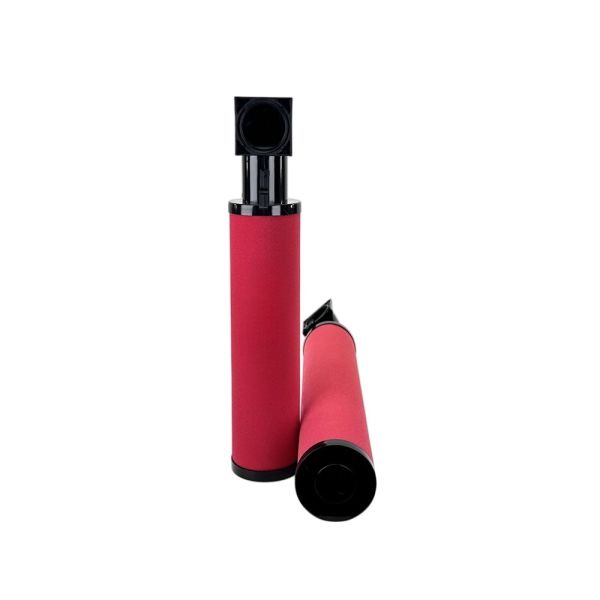

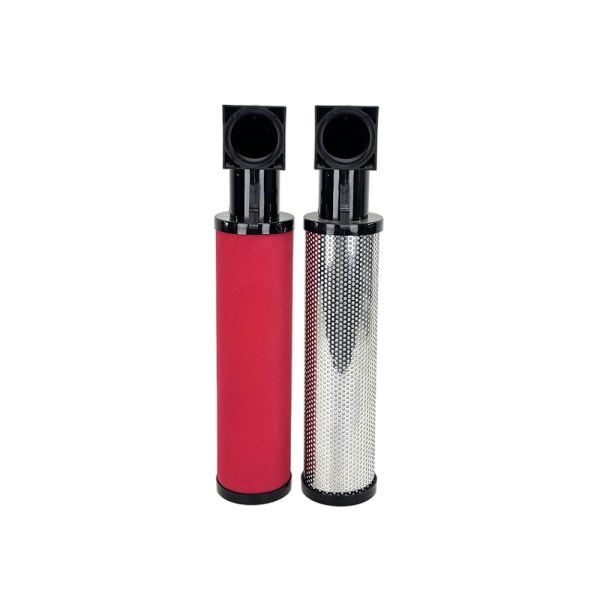

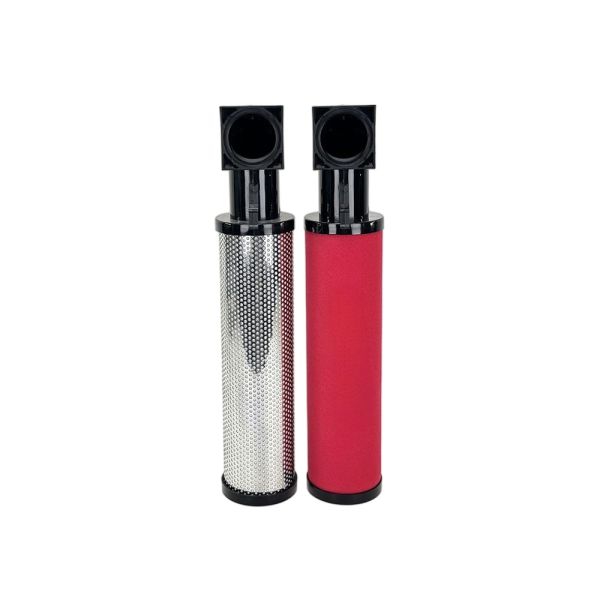

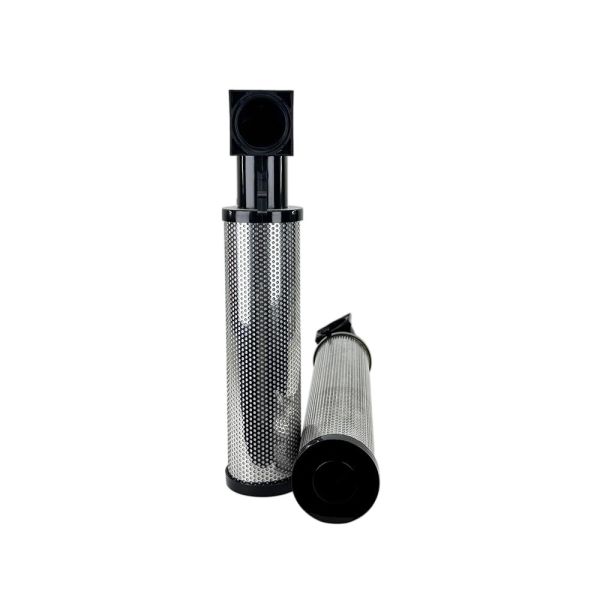

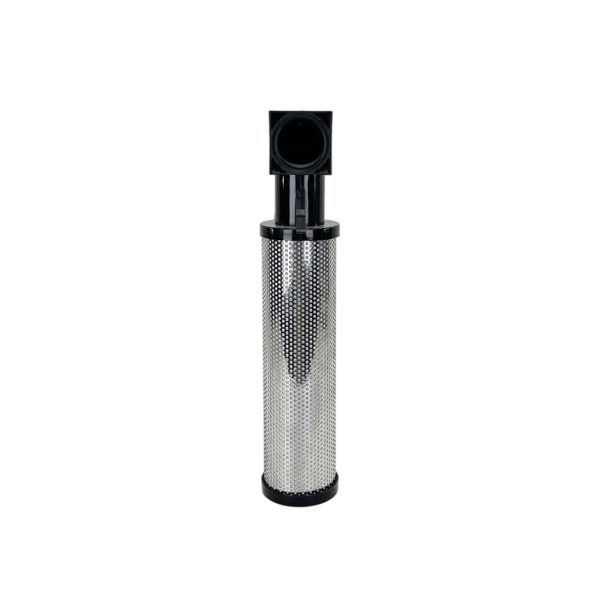

High Efficiency Coalescing Filter Element - Model 88344239

The 88344239 is a high capacity oil removal cartridge designed for compressed air systems requiring both particulate filtration and oil mist elimination. It captures solid contaminants down to 1 micron including dust, rust, and pipe scale, while reducing residual oil content to 0.5 ppm. The micro fiberglass depth media efficiently separates water droplets and oil aerosols.

Rated at 9 Nm3/min, this element supports demanding applications such as laser cutting assist gas headers, multiple electronics SMT assembly cells, and sandblasting cabinets with several nozzles. Clean pressure drop is ≤0.01 bar, delivering 5-7% energy savings on the air compressor over the 8000 hour service life.

The 88344239 fits standard medium diameter filter housings. Engineering plastic end caps and Buna-N seals ensure reliable operation from 1.5 to 80°C and pressures up to 2.0 MPa. Weight is 0.7 kg, providing robust media volume while remaining manageable for maintenance personnel.

• 1 micron nominal rating - Removes dust rust and pipe scale effectively
• 0.5 ppm residual oil - Eliminates oil mist without separate coalescer
• Micro fiberglass media - High efficiency separation in robust package
• 9 Nm3 min flow rate - Supports medium to large pneumatic networks
• 0.01 bar pressure drop - Delivers 5-7% compressor energy savings
• 8000 hour service life - Long lasting for continuous operation
• Standard housing fit - Direct replacement for medium cartridges
• 0.7 kg weight - Easy handling during filter change

• Laser cutting assist air - Clean oil-free gas for stable laser optics
• Electronics SMT lines - Oil and dust free air for pick and place machines
• Sandblasting systems - Clean air for consistent nozzle performance
• Industrial pneumatic networks - Protects valves cylinders and tools
• Point of use filtration - Final stage before sensitive equipment

• 24 hour dispatch - Stock items ready for immediate shipment
• Low MOQ - One piece accepted for trial and evaluation
• OEM drawing service - Custom end caps seals or packaging available
• Factory direct pricing - Competitive for bulk orders of 1000+ pieces monthly
• Full compliance - CE RoHS and ISO8573-1 certification provided

• Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
• Shipment:
  1. By Air (Fedex/DHL)
  2. By Sea
