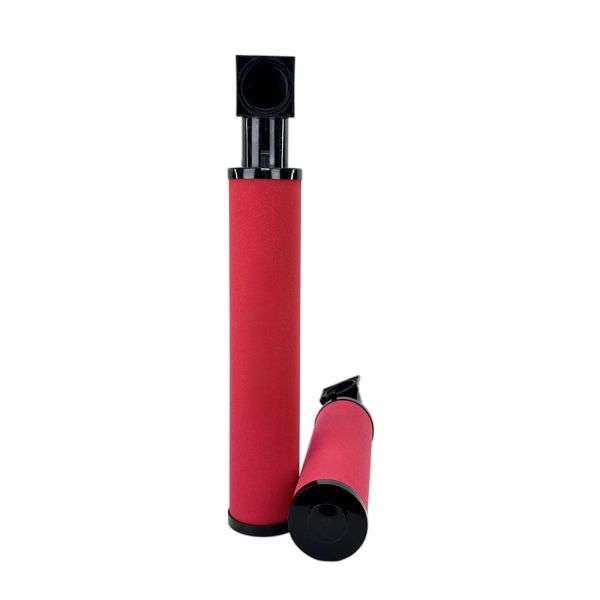

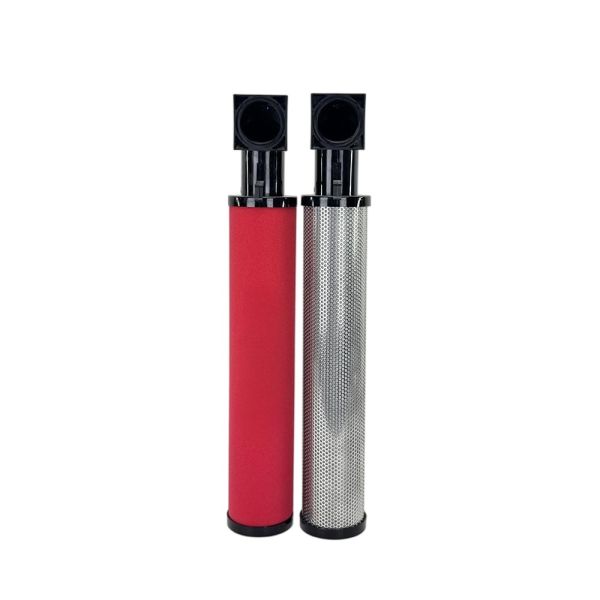

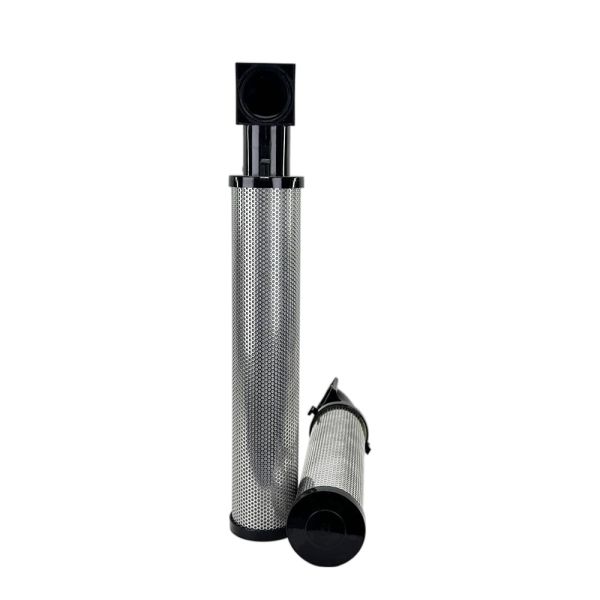

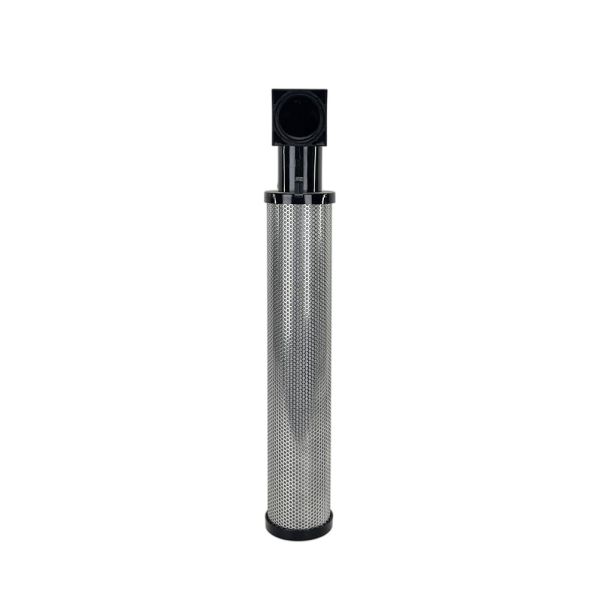

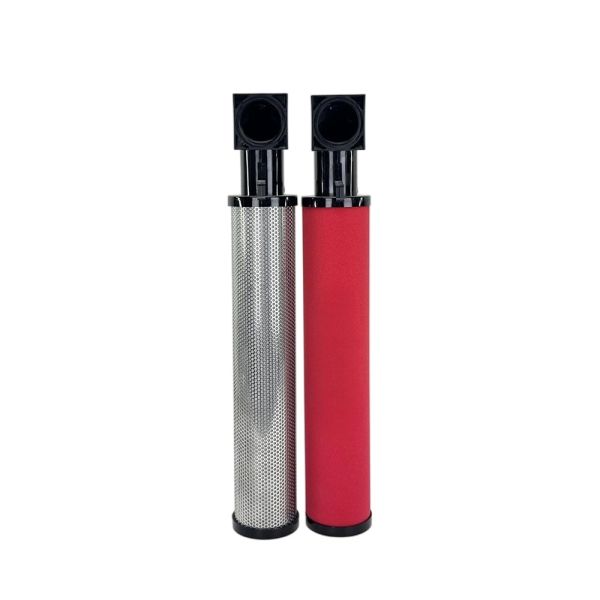

High Capacity Pre Filter Element - Model 88343348

The 88343348 is a high flow pre filter cartridge engineered for compressed air systems requiring efficient solid particulate removal. It captures contaminants down to 1 micron including dust, rust, pipe scale, and water droplets. The micro fiberglass depth media provides high dirt holding capacity with low flow resistance.

Rated at 15 Nm3/min, this element supports central air headers, multiple laser cutting tables, electronics assembly lines, and sandblasting systems with continuous high volume demand. The tall 478 mm body with 88 mm diameter offers extended media depth for lower face velocity and longer service intervals. Clean pressure drop is ≤0.01 bar, delivering 5-7% energy savings over the 8000 hour service life.

The 88343348 fits standard large diameter filter housings. Engineering plastic end caps and Buna-N seals ensure reliable operation from 1.5 to 80°C and pressures up to 2.0 MPa. Weight is 0.95 kg, providing robust construction while remaining manageable for replacement.

• 1 micron nominal rating - Removes dust rust and pipe scale effectively
• Micro fiberglass media - High dirt holding capacity in tall package
• 15 Nm3 min flow rate - Supports central air systems and multiple tools
• 0.01 bar pressure drop - Delivers 5-7% compressor energy savings
• 8000 hour service life - Long lasting for continuous heavy duty
• Large 88x478 mm dimensions - Low face velocity for deep particle capture
• 0.95 kg weight - Robust yet manageable for maintenance staff
• Buna-N seals - Reliable from 1.5 to 80°C up to 2.0 MPa

• Laser cutting central headers - Clean assist air for multiple cutting heads
• Electronics SMT assembly lines - Pre filtration for whole production floor
• Sandblasting central systems - Removes contaminants for continuous operation
• Industrial pneumatic networks - Main line protection for valves and tools
• High volume point of use - Final pre clean before sensitive equipment

• 24 hour dispatch - Stock items ready for immediate shipment
• Low MOQ - One piece accepted for trial and evaluation
• OEM drawing service - Custom end caps seals or packaging available
• Factory direct pricing - Competitive for bulk orders of 1000+ pieces monthly
• Full compliance - CE RoHS and ISO8573-1 certification provided

• Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
• Shipment:
  1. By Air (Fedex/DHL)
  2. By Sea
