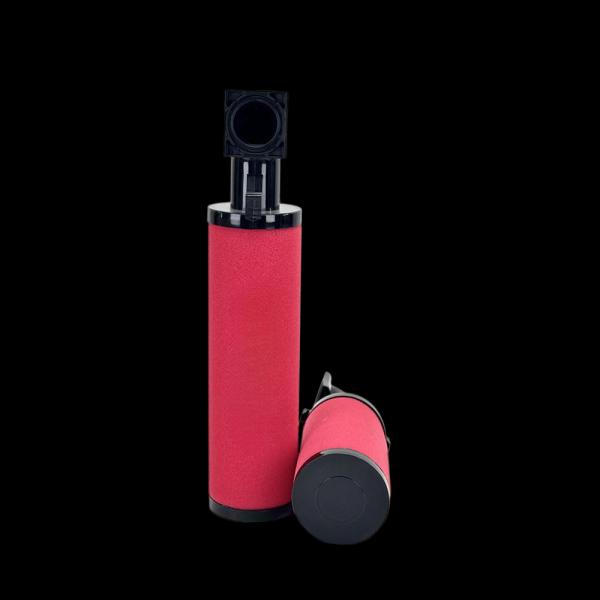

88343132 Vertical Space Solution for High Flow Oil Removal

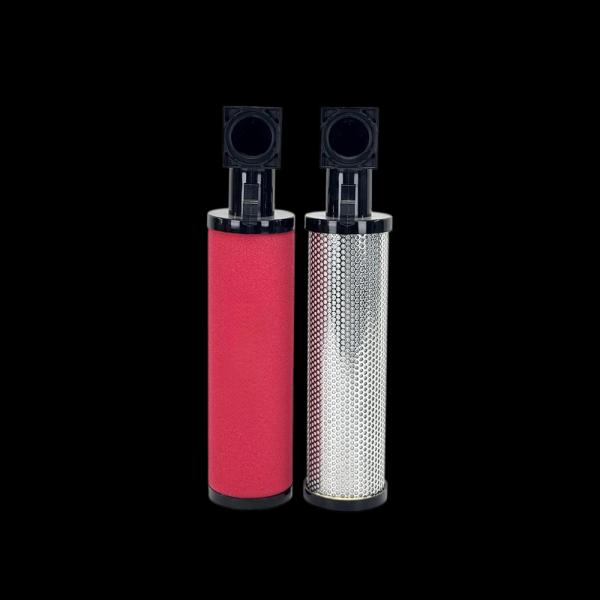

88343132 Vertical Space Solution for High Flow Oil Removal

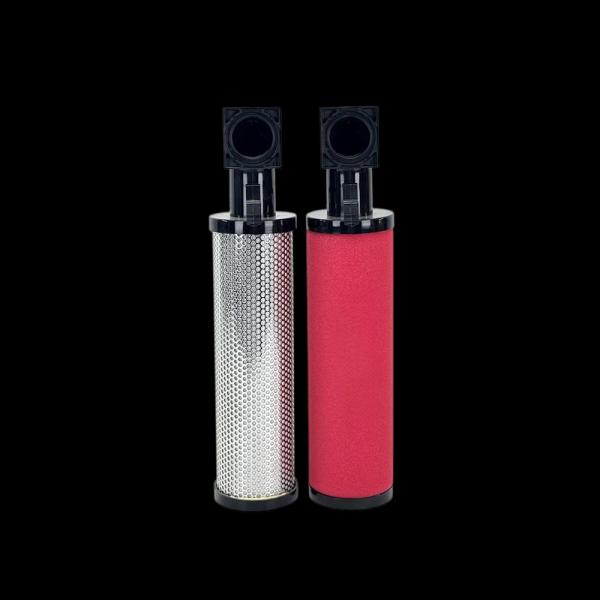

88343132 Vertical Space Solution for High Flow Oil Removal

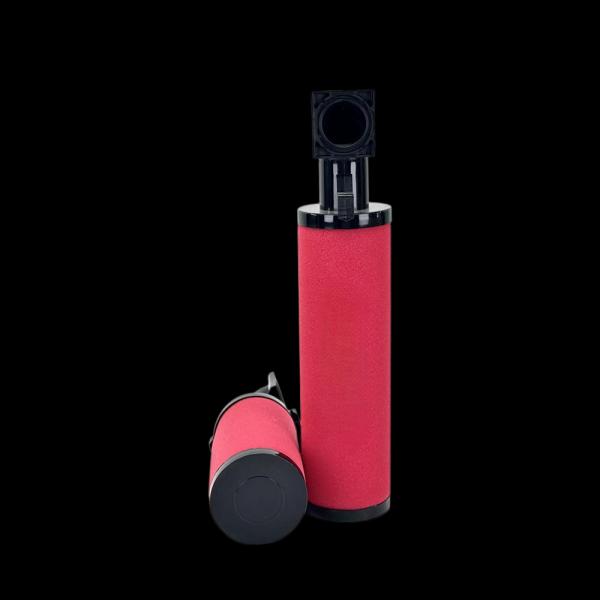

88343132 Vertical Space Solution for High Flow Oil Removal
88343132 Vertical Space Solution for High Flow Oil Removal
88343132 Vertical Space Solution for High Flow Oil Removal
88343132 Vertical Space Solution for High Flow Oil Removal
88343132 Vertical Space Solution for High Flow Oil Removal
88343132 Vertical Space Solution for High Flow Oil Removal
88343132 Vertical Space Solution for High Flow Oil Removal
88343132 Vertical Space Solution for High Flow Oil Removal
88343132 Vertical Space Solution for High Flow Oil Removal
Specifications
Brand Name :
INGERSOLL RAND 8834
Model Number :
EXOMIST065005
Certification :
ISO8573-1; CE; RoHS
Place of Origin :
Wuxi, Jiangsu, China
MOQ :
1
Price :
Online contact
Payment Terms :
T/T
Supply Ability :
1000+ pcs
Delivery Time :
30 days
Packaging Details :
Plastic bag-box-cartons/pallets or Custom options
Life Time :
8,000h
Pressure Loss :
≤0.011bar (5-7% energy saving)
Stock :
Main models shipped in 24h
Custom :
OEM drawing service
Applications :
Laser cutting, electronics, sandblasting
Description
88343132 Vertical Space Solution for High Flow Oil Removal
Product Specifications
EXOMIST Model EXOMIST065005
Original Filter Brand INGERSOLL RAND 8834
Original Model9 88343132
Precision / Residual oil amount 1 μm/0.5 ppm
Processing capacity 6 Nm³/min
Working Temperature 1.5 ~ 80℃
Working Pressure 0.1 ~ 2.0Mpa
Media Micro fiberglass
End Caps Engineering plastic
Seal Buna-N
Weight (including packaging) 0.3kg
Size packaging(cm) 26*7*7 E-24#
Dimensions(mm) D:74±1 H:147±2
Country of Origin / HTS Code CHINA / 8421999090
Product Description

Same Diameter Twice the Flow – 88343132

You already have 74mm filter housings. You are getting 3.4 Nm³/min from the 88343124. Now you need 6. Do you rip out the bowls and pipes for a 101mm system? No. You install the 88343132. Same 74mm diameter, but 238mm tall instead of 147mm. Double the media depth. Double the flow.

How this works

The taller bed lowers face velocity at the same volumetric flow. That means you can push 6 Nm³/min through a 74mm housing without exceeding the 0.01 bar pressure drop limit. Oil carryover stays at 0.5 ppm. Solid particles down to 1 micron are captured. The element weighs 0.45 kg — heavier than the 3.4 version, but still manageable.

Who needs this
  • Electronics plants that expanded from six to twelve pick-and-place heads on one air line
  • Laser cutting shops that added more optics to the same assist gas header
  • Sandblasting operators running a medium nozzle bank continuously
  • Anyone who installed 74mm housings years ago and now needs higher throughput
The upgrade path

Keep your existing bowls, heads, and pipework. Just swap the shorter cartridge for the 88343132. No re-plumbing. No new mounting brackets. One part number change. The 8000 hour service life still applies, but the deeper bed means you are more likely to reach it under heavier load.

Real world fit

Vertical clearance is the only requirement. At 238mm plus the housing head, you need about 300mm of vertical space. If you have that, this is the cheapest way to double your flow capacity without changing hardware.

Packing & Delivery
  • Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
  • Shipment:
    1. By Air (Fedex/DHL)
    2. By Sea
