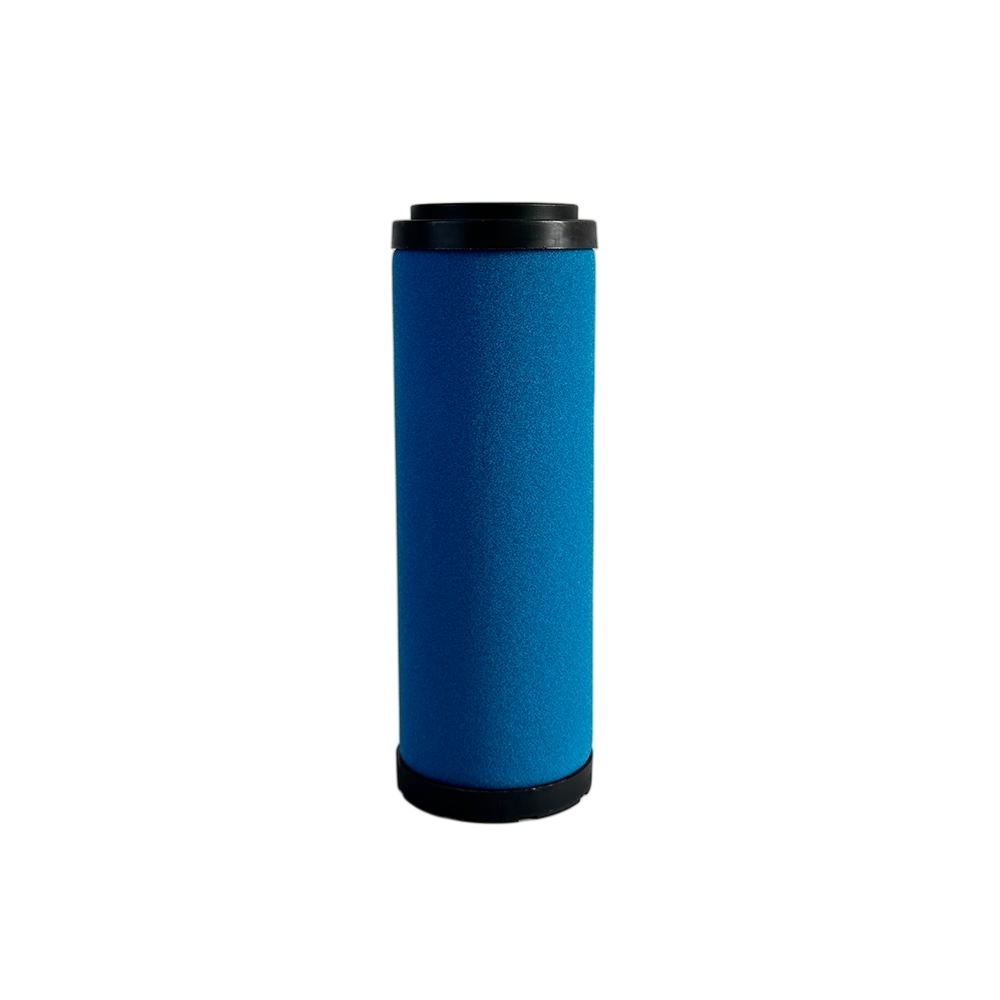

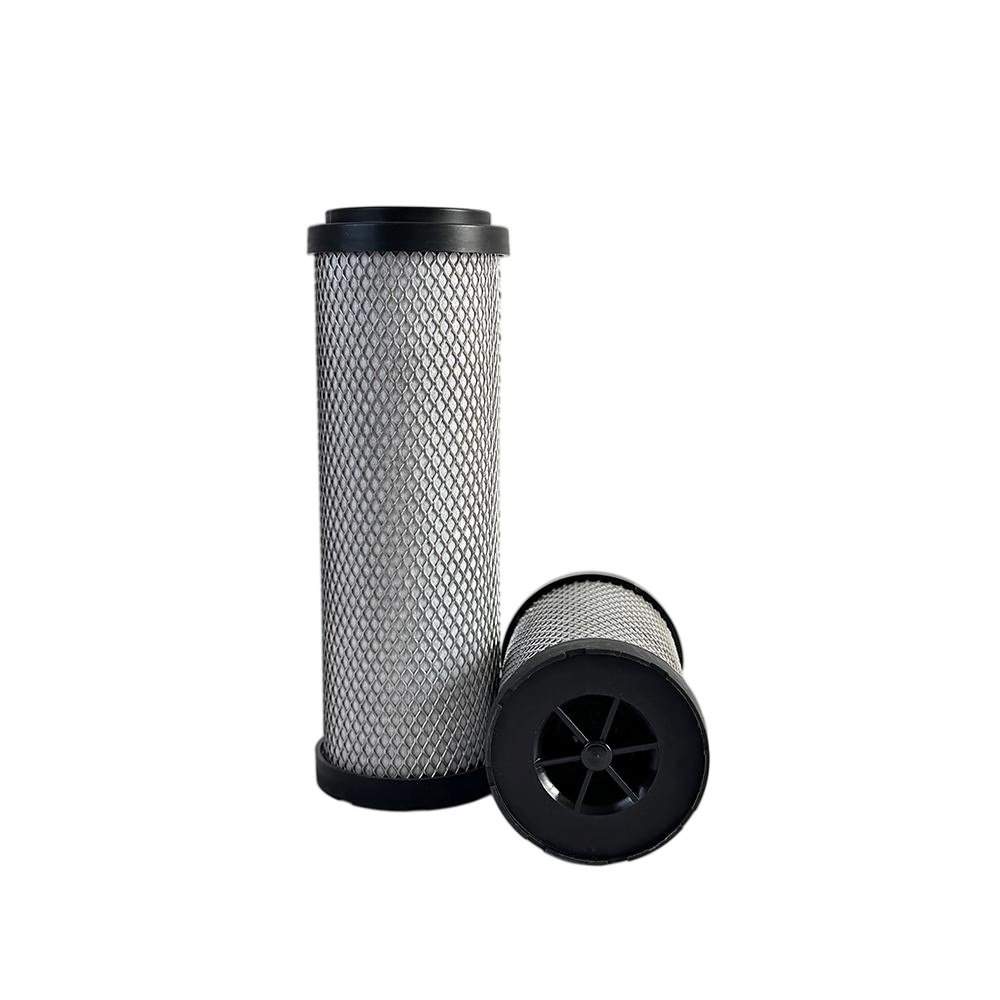

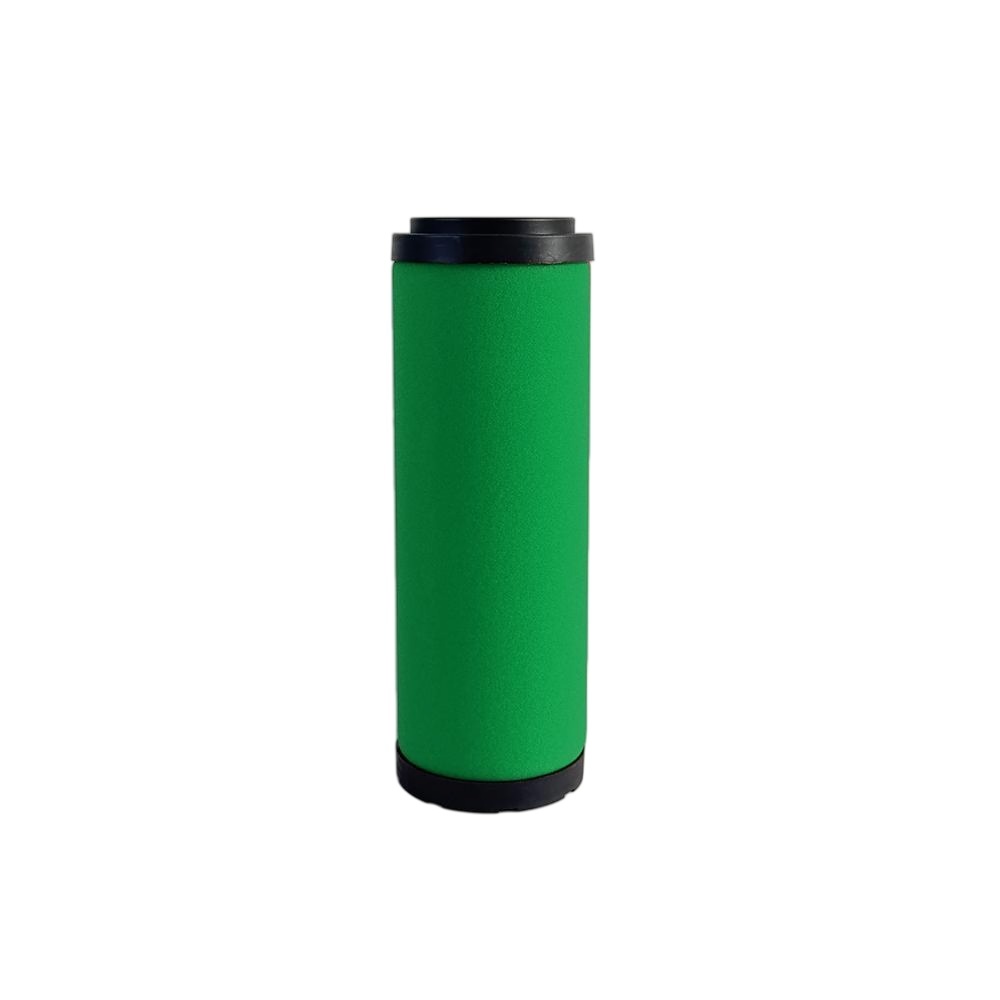

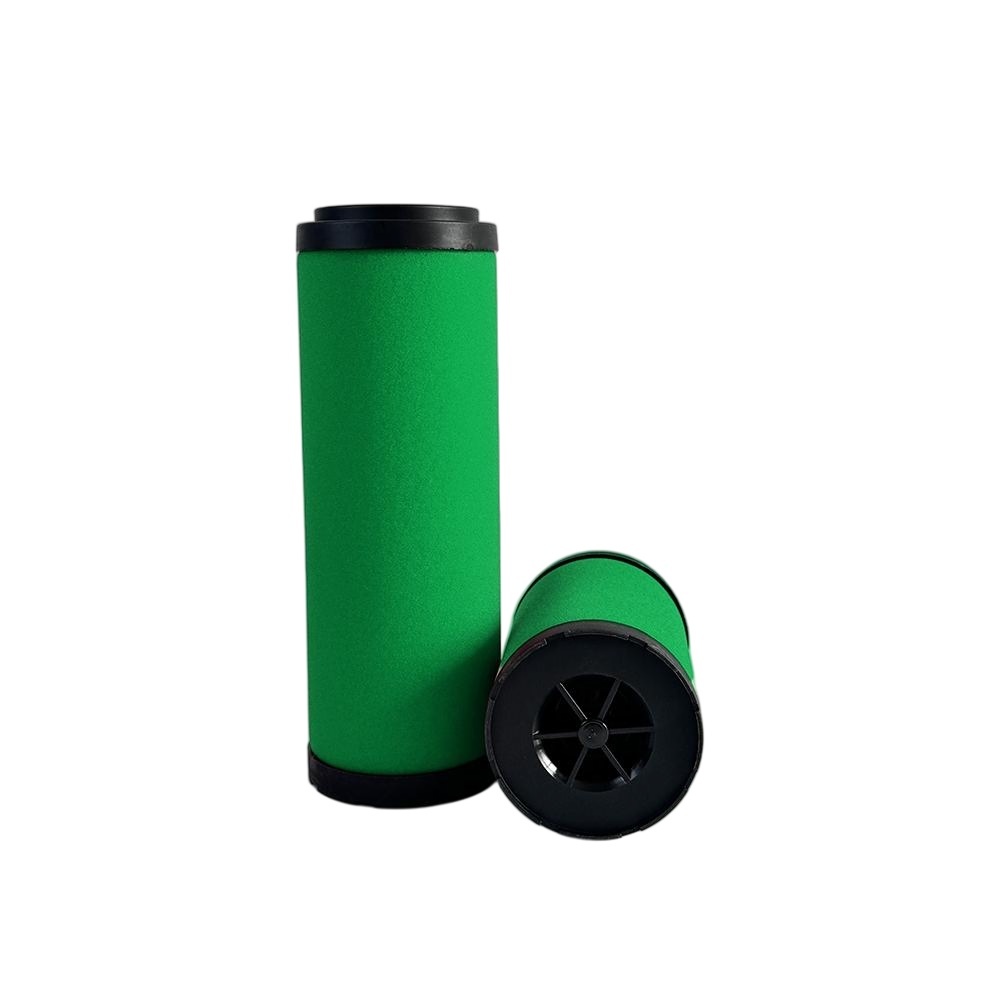

EXOMIST047023 High Capacity Coalescing Element – Flotech R-32075 Replacement

The EXOMIST047023 is a high capacity coalescing filter element engineered to replace Flotech R-32075 cartridges in large compressed air systems. This element serves central compressor stations and main plant air headers where high volume air distribution demands robust filtration with extended service intervals.

The micro glass fiber media captures oil aerosols and solid particles down to 1 micron while limiting residual oil carryover to 1 ppm. This meets ISO8573-1 Class 3 requirements, suitable for large scale factory air distribution, multi-building plant networks, and heavy industrial applications where dependable coarse filtration keeps production running.

Rated at 8.5 Nm3/min, this element supports the highest flow in the R series family, serving multiple production zones simultaneously. The extended body design provides ample media volume for high dirt holding capacity, enabling longer change intervals in dusty industrial environments. Clean pressure drop stays below 0.01 bar, contributing to 5-7% energy savings over the 8000-hour service life. The 0.55 kg weight reflects the robust construction needed for high flow, high pressure operation.

Buna-N seals and engineering plastic end caps provide reliable operation from 1.5 to 80 deg C at pressures up to 2.0 MPa, compatible with all common compressor lubricants. The element fits standard large housings found in central compressor rooms and main air headers.

• 8.5 Nm3/min capacity supports large scale factory air networks
• Extended body provides high dirt holding for long service intervals
• 1 micron rating delivers dependable coarse filtration
• 1 ppm oil carryover protects downstream pneumatic equipment
• 0.55 kg construction withstands high flow and pressure demands
• Microglass media resists moisture and maintains efficiency
• Low initial resistance cuts fan and compressor energy 5-7%
• Coalescing action removes both oil and water simultaneously
• Buna-N seals compatible with all standard lubricants
• Seamless end cap bonding prevents bypass leakage

• Central compressor station main air headers
• Large manufacturing plant air distribution networks
• Multi-building factory compressed air systems
• Pre-filtration for large desiccant and refrigerated dryers
• Heavy industrial pneumatic equipment supply
• Automotive assembly plant air systems

• 24-hour dispatch from Wuxi stock
• MOQ 1 piece for trial evaluation
• OEM labeling and custom packaging available
• Monthly capacity exceeds 1000 units
• CE, RoHS, and ISO8573-1 compliant
• Test documentation supplied upon request

• Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
• Shipment:
  1. By Air (Fedex/DHL)
  2. By Sea
