0.005mm Tolerance Precision Nickel Plated Cylindrical Locating Pins CNC Machining
0.005mm Tolerance Precision Nickel Plated Cylindrical Locating Pins CNC Machining
0.005mm Tolerance Precision Nickel Plated Cylindrical Locating Pins CNC Machining
0.005mm Tolerance Precision Nickel Plated Cylindrical Locating Pins CNC Machining
0.005mm Tolerance Precision Nickel Plated Cylindrical Locating Pins CNC Machining
0.005mm Tolerance Precision Nickel Plated Cylindrical Locating Pins CNC Machining
0.005mm Tolerance Precision Nickel Plated Cylindrical Locating Pins CNC Machining
0.005mm Tolerance Precision Nickel Plated Cylindrical Locating Pins CNC Machining
Specifications
Brand Name :
Customized
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
China, Fujian
MOQ :
1000PCS
Price :
Price can be discussed
Payment Terms :
T/T
Supply Ability :
1-1000 pcs 14work days
Delivery Time :
15 work days
Packaging Details :
Customized packaging services according to the change of package size of your goods
Keyword :
CNC Machining,high precision
Cnc machining or not :
CNC Machining
Process :
Turning,CNC Machining
Material capabilities :
Aluminum,Brass,Stainless Steel,Copper
Type :
Other Machining Services,Turning
Micro machining or not :
Micro Machining
Lead time :
15~25 working days
Product name :
Cold Heading Parts
Service :
Customized OEM
Material :
aluminum,brass,Stainless Steel
Tolerance :
0.01mm
Color :
Any color
Description

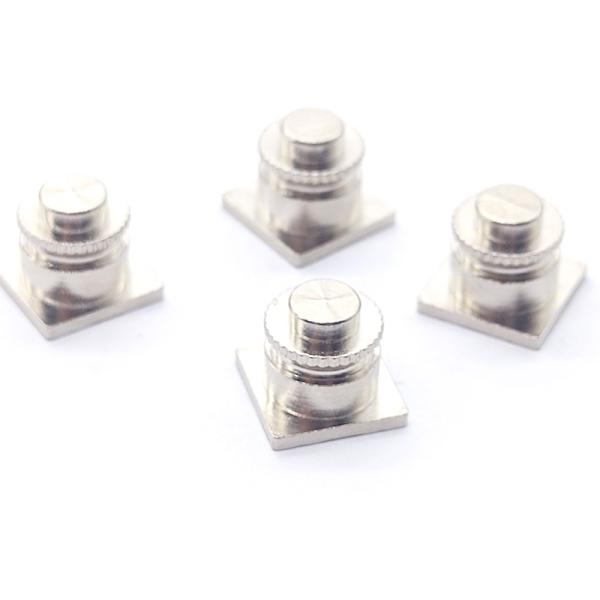

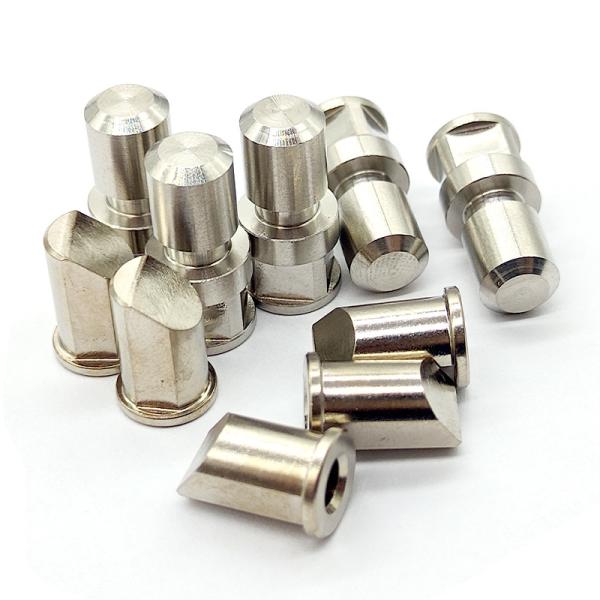

These precision nickel-plated cylindrical locating pins are engineered for accurate positioning and alignment in mechanical fixtures, automation systems, and industrial equipment. Manufactured from high-grade carbon steel and finished with a durable nickel coating, they provide excellent wear resistance, corrosion protection, and a polished appearance.
Our facility is equipped with advanced CNC machining technology to ensure high dimensional accuracy and consistent quality. We accept OEM and custom orders based on customer drawings or samples, delivering components that meet ISO9001 quality standards.

  • Material: Carbon Steel

  • Finish: Nickel Plating

  • Shape: Cylindrical body with flat locating shoulder

  • Processing: CNC turning, grinding

  • Tolerance: ±0.005mm

  • Application: Positioning, alignment in jigs, fixtures, automation

  • Customization: Drawings or samples accepted

  • Certification: ISO9001

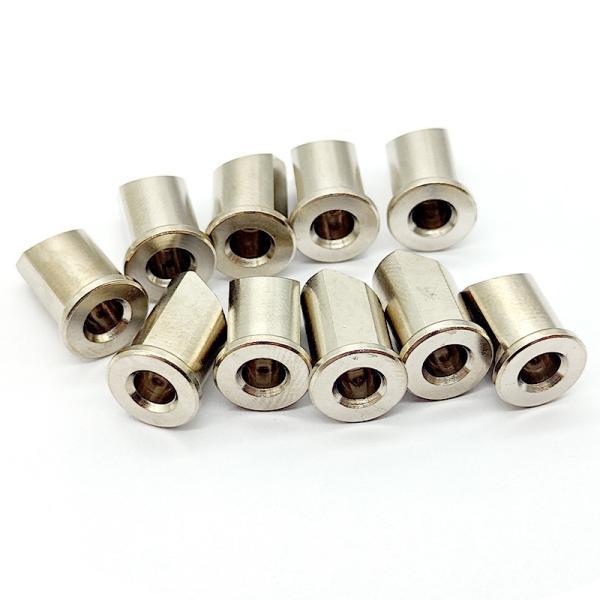

These custom nickel-plated slanted locating bushings are designed to provide stable guidance and positioning for mechanical assemblies, molds, and automation machinery. The slanted surface allows for specific directional alignment, while the high-quality carbon steel construction and nickel finish ensure durability and resistance to wear and corrosion.
We specialize in producing non-standard mechanical parts, offering flexibility in dimensions, surface treatments, and tolerances to suit various industrial requirements. With ISO9001 certification, our products guarantee performance and reliability.

Project Description
Design/size according to customer's sample or drawing
Material
Copper H59 H62 lead-free copper and purple copper, etc.
Titanium TC4 (TiAl6v4, grade 5).
Alloy steel 15Cr, 20Cr, 42CrMo
Aluminum 6061, 6063, 6082, 7075, 5052, A380, etc.
Plastics POM, paraformaldehyde, nylon
Steel Mild steel, carbon steel, 4140, 4340, Q235, Q345B, 20#, 45#, etc.
Stainless steel SS303, SS304, (SS304 food grade), SS316, SS316L, SUS430, SS416SS201, SS301,
Other
Surface treatment Transparent anodizing, color anodizing (color code required, actual samples to prevent color difference), chemical film, passivation, polishing, chrome plating, sandblasting, laser engraving, zinc plating, black oxide, nickel plating, chrome plating, carburizing, heat treatment
Test Equipment Rockwell Hardness TesterSalt Spray TesterRoughness TesterCloud Disc High Speed Tester SP-T300
