Zirconia Ceramic Precision Sleeve: High-Temperature Resistant, Insulating, And Wear-Resistant Solution

Product Introduction

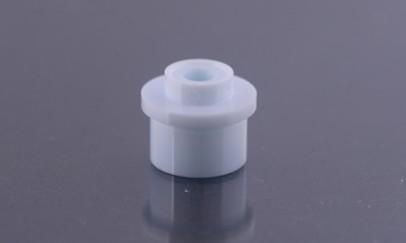

This product is a cylindrical structural component with holes made from high-purity zirconia (ZrO₂) ceramic material, manufactured through advanced powder metallurgy and precision machining processes. It exhibits excellent mechanical strength, wear resistance, and chemical stability, making it an ideal choice for insulating sleeves, bearing rings, and wear-resistant connectors in precision machinery. Its unique combination of properties addresses the performance limitations of metal materials in insulating, wear-resistant, and corrosion-resistant environments.

Core Advantages

• Exceptional Wear Resistance: Vickers hardness ≥1250, wear resistance is 10 times that of ordinary steel

• Excellent Insulation Properties: Volume resistivity >10¹⁰ Ω·cm, maintains stable insulation under high temperature and high pressure conditions

• Superior Corrosion Resistance: Resistant to acid and alkali corrosion, suitable for chemical, medical and other corrosive environments

• High Mechanical Strength: Flexural strength ≥1000 MPa, can withstand high load conditions

• Precision Dimensional Stability: Thermal expansion coefficient close to metal, enabling precise matching with metal components

Specification Parameters Table

Process Flow
Raw material preparation → Isostatic pressing → High-temperature sintering → CNC precision machining → Laser dimensional inspection → Ultrasonic cleaning → Vacuum packaging

Usage Instructions

1. Installation and Fit: Transition fit is recommended, use special tools during installation to avoid stress concentration

2. Temperature Adaptation: Can be used for long periods in environments from -200℃ to 800℃

3. Media Compatibility: Suitable for most acidic and alkaline media (except hydrofluoric acid)

4. Maintenance: Regularly check sealing performance, recommended inspection every six months

After-Sales Service
We provide comprehensive technical support and service guarantees:

• 24-month extended warranty period

• Free technical consultation and selection guidance

• 48-hour response to customer issues

• Support for non-standard customization and sample production

• Provide on-site installation guidance services

FAQ

1. Q: What is the maximum wall thickness achievable for zirconia ceramic sleeves?
   A: Typically recommended wall thickness is not less than 0.5mm, maximum can reach 50mm, specific design depends on size ratio.

2. Q: Can it be used in vacuum environments?
   A: Yes, zirconia ceramic has low outgassing rate, making it very suitable for vacuum environments.

3. Q: What is the delivery time for the product?
   A: 7-10 days for standard specifications, 3-4 weeks for custom non-standard products.

4. Q: Do you provide surface modification treatments?
   A: Support various surface modification treatments including polishing, coating, etc.
