HS705 Hydraulic Pressure Comparison Pump Pressure Range 0-600/700 Bar for Industrial
HS705 Hydraulic Pressure Comparison Pump Pressure Range 0-600/700 Bar for Industrial
HS705 Hydraulic Pressure Comparison Pump Pressure Range 0-600/700 Bar for Industrial
HS705 Hydraulic Pressure Comparison Pump Pressure Range 0-600/700 Bar for Industrial
HS705 Hydraulic Pressure Comparison Pump Pressure Range 0-600/700 Bar for Industrial
HS705 Hydraulic Pressure Comparison Pump Pressure Range 0-600/700 Bar for Industrial
HS705 Hydraulic Pressure Comparison Pump Pressure Range 0-600/700 Bar for Industrial
HS705 Hydraulic Pressure Comparison Pump Pressure Range 0-600/700 Bar for Industrial
Specifications
Place of Origin :
Beijing, China
Brand Name :
Sino Instruments
Model Number :
HS705
Pressure range :
0~600/700)bar
Supply Ability :
300 Piece/Pieces per Month
Price :
$600.00 - $1,000.00/pieces
MOQ :
1 unit
Description

Title goes here.

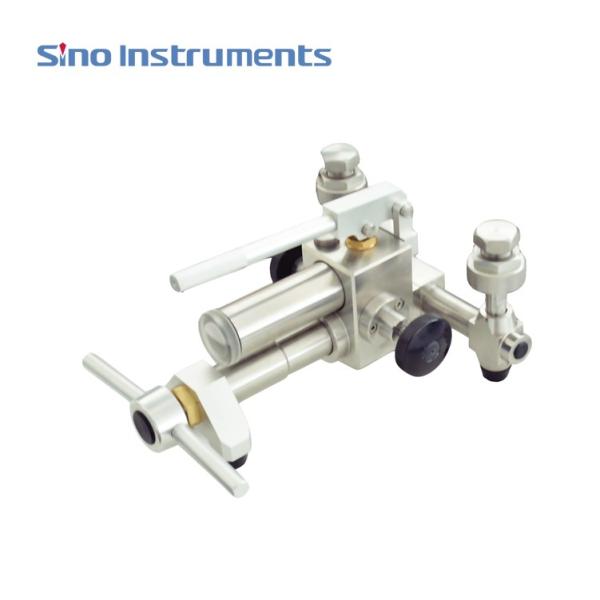

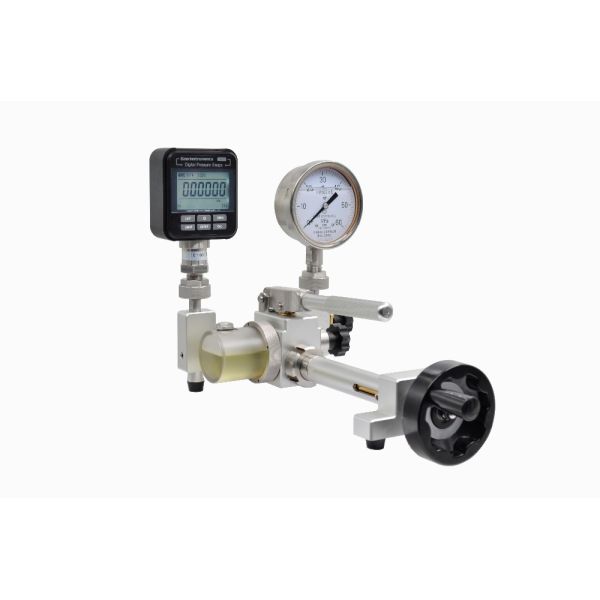

HS 705 hydraulic pressure comparison pump adopts advanced stainless steel and aluminum alloy special precess, compact dimesion,light weight.It is portable structure and designed to generate pressure range up to 700bar.The screw pump design makes the high pressure operation more easy and save labor,the F-adjust valve adjust the exact pressure value.A detachable oil cup is easy to clean and maintenance,user could check the work medium timely from the transparent oil cover.Two standard pressure outputs are easy to connect gauges under test without using the wrenches.It widely calibrates pressure instruments in field and laboratory.

Detailed Images
HS705 Hydraulic Pressure Comparison Pump Pressure Range 0-600/700 Bar for Industrial
HS705 Hydraulic Pressure Comparison Pump Pressure Range 0-600/700 Bar for Industrial
Specifications

Generated pressure range:(0-600/700)bar

Working media:25# transformer oil,

Adjust resolution:1mbar

Material:

Body:Stainless Steel/Aluminium

Seals:Buna-N

Output interface connection:M20x1.5Female

Weight:5.2kg

Dimensions:420Lx240Wx150H(mm)
