Specifications
Place of Origin :
Beijing, China
Brand Name :
SINO INTSTRUMENTS
Model Number :
HS703
pressure range :
(-0.98~ 60) bar
stability :
+/-0.05% F.S
weight :
2.7kg
Adjust resolution :
10Pa(0.1mbar)
Material :
Body: Stainless steel /Aluminium
Dimensions :
286L*198W*140H (mm)
working media :
air
Packaging Details :
standard package
Port :
beijing
Supply Ability :
300 Piece/Pieces per Month
Price :
$500.00 - $1,500.00/units
MOQ :
1 unit
Description

HS703 pneumatic comparison test pump china

Description

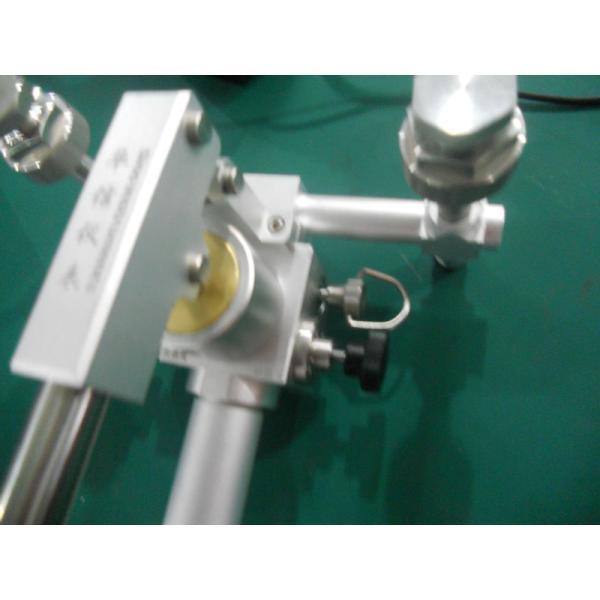

HS703 hand calibration pressure pump is made up of lead screw; relieve valve, reversing valve, and output interface.

Functions


HS703 hand calibration pressure pump can supply pressure for calibrating pressure gauges, Such as pressure (differential pressure) transducers, precision pressure gauges, general pressure gauges and other pressure gauge.

HS703 hand calibration pressure pump is portable structure and designed to generate pressure from vacuum to 60bar. Built-in filter protects the pump from dirty and make maintenance easy and convenient. The F-adjust valve could accomplish 10Pa (0.1mbar) pressure resolution. Especially the lever lead screw design makes user operate in economize labor. the design of reverse valve makes the switch of vacuum and positive pressure more smooth. Two standard pressure outputs are easy to connect gauges under test without using the wrenches. It widely calibrates pressure instruments in field and laboratory.

Technical Specification

Pressure range

(-0.95~ 60) bar

Accuracy

0.05% F.S

Pressure-transmitting media

air

Output interface

M20×1.5 Female

Overall Dimensions

325×210×170mm

Weight

2.6Kg
