Specifications
Place of Origin :
Beijing, China
Brand Name :
sino instruments
Model Number :
HS721
Power :
pneumatic pressure
pressure range :
(-0.95~ 140) bar
Working Media :
Air
Output Interface :
M20*1.5 Female*3pcs
Weight :
14kgs
Warranty :
1 year
Material :
Stainless steel
Brand :
sino instruments
MOQ :
1pc
Packaging Details :
export package
Port :
beijing
Supply Ability :
100 Set/Sets per Month
Price :
$900.00 - $1,800.00/sets
MOQ :
1 unit
Description

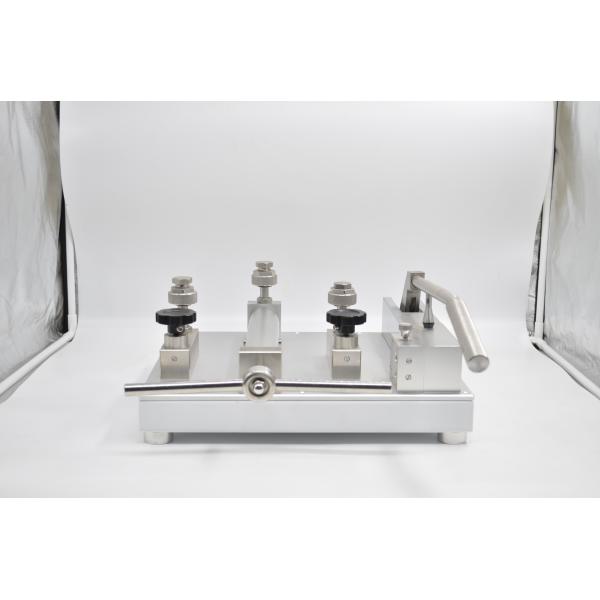

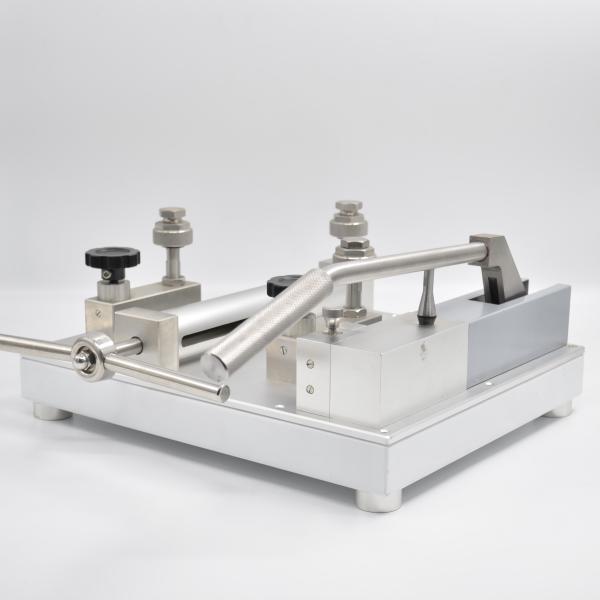

HS721 Pneumatic Pressure Test Pump

Product Description

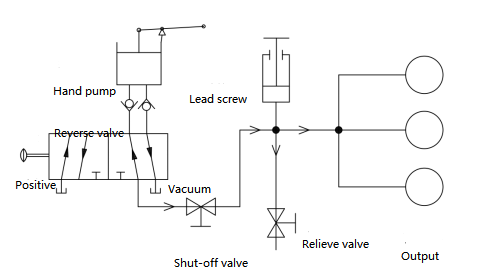

HS721 pneumatic pressure test bench consists of hand pump, lead screw, reverse valve, relieve valve and output interface. It features high sealing, stable pressure generating and simple operation. It is suitable in the laboratory. It could supply the pressure for calibrating pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge and other pressure instruments.

Characteristics
-Food grade stainless steel and hermetic technology in the military industry
-High precision, stable pressure generating, easy operation.
-Wide pressurized range, high vacuum degree
-High reliability, Wide micro-adjusting range

Technical Specification

l Generate Pressure range: (-0.95~140)bar

l Stability: 0.05% F·S

l Working medium: Air

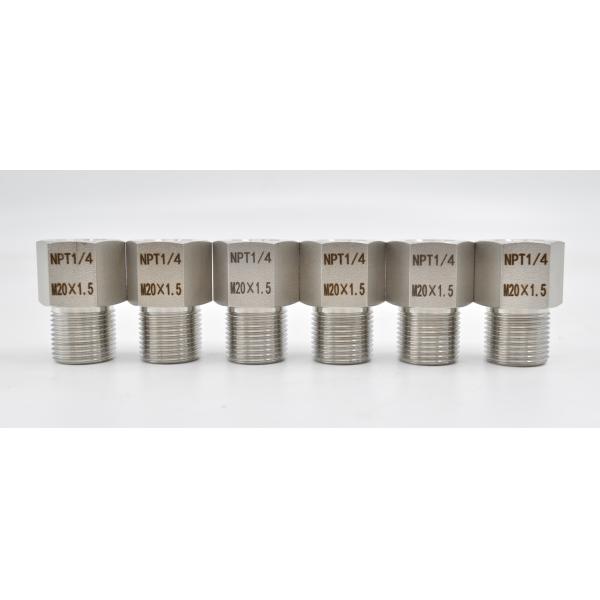

l Output interface connection: 3-M20×1.5

l Dimension: 385mm×380mm×200mm

l Weight: 13.85kg
