Specifications
Place of Origin :
Beijing, China
Brand Name :
Sino Instruments
Model Number :
HS700
Generated pressure range :
(-0.5-0.5)bar
Working media :
Air
Adjust resolution :
0.01mbar
Body :
transparent plexiglass
Output part :
stainless steel
Seals :
Buna-N
Output interface :
M20*1.5Female
Weight :
2.55kg
Packaging Details :
Paper Carton
Port :
Beijing
Supply Ability :
100 Unit/Units per Month
Price :
$1.00 - $2.00/units
MOQ :
1 unit
Description
Product Description

Description

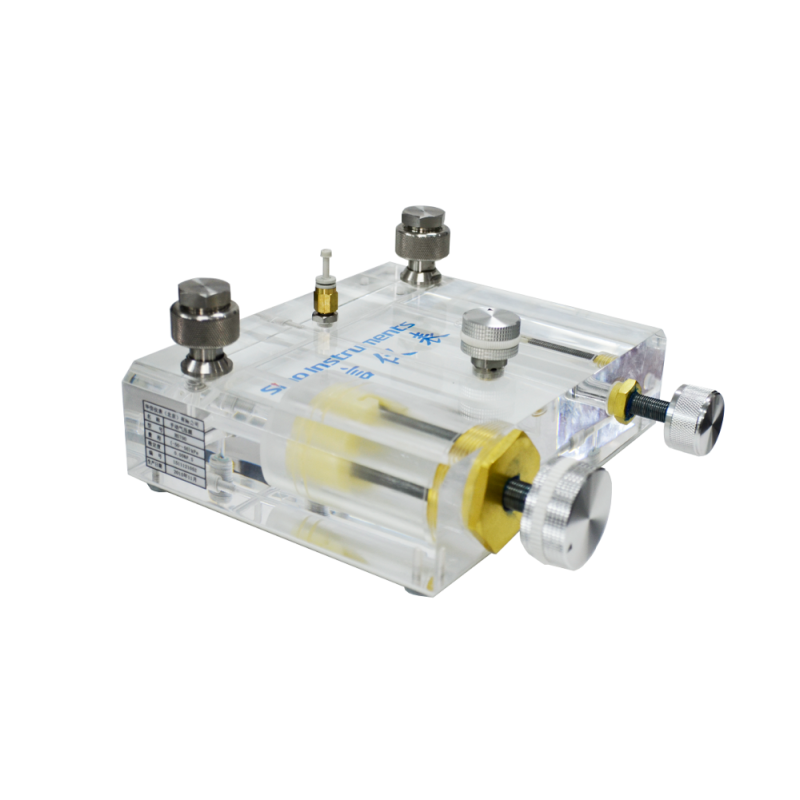

HS700 Micro Pressure Comparison Pump is made from high quality and transparent plexiglass material. The operation of piston inside can be seen clearly . The whole structure is more intuitive and compact. This instrument is specially designed to generate micro pressure from vacuum to 0.5bar. The F-adjust valve could accomplish 0.01mbar pressure resolution. HS700 is a very stable Mirco Pressure Calibrator. the design of relieve valve makes the system return to zero pressure quickly.two standard pressure outputs are easy to connect gauges under test without using the wrenches. the differential port also may connect gauges under test by hose. It widely calibrates micro pressure instruments in field and laboratory.

Specifications

l Generated pressure range:(-0.5-0.5)bar

l Working media:Air

l Adjust resolution:0.01mbar

l Material:

Body:transparent plexiglass

Output part:stainless steel

Seals:Buna-N

l Output interface connection: M20×1.5Female

Differential port for connect gauges

under test by hose

l Weight:2.55kg

l Dimensions:260L×180W×60H(mm)
