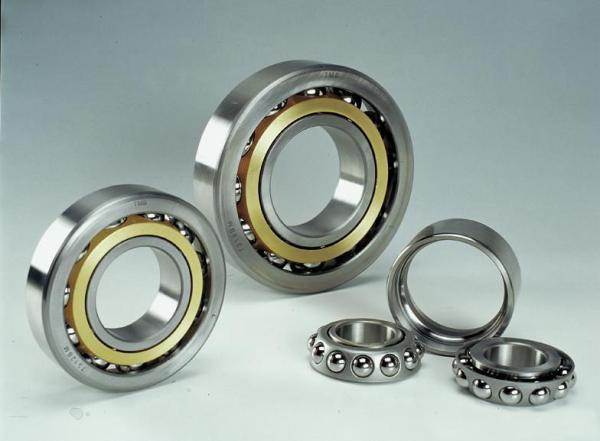

7309BECBM Brass Cage DB DF DT Install Angular Contact Ball Bearing For Lathe Turning
7309BECBM Brass Cage DB DF DT Install Angular Contact Ball Bearing For Lathe Turning
7309BECBM Brass Cage DB DF DT Install Angular Contact Ball Bearing For Lathe Turning
7309BECBM Brass Cage DB DF DT Install Angular Contact Ball Bearing For Lathe Turning
Specifications
Brand Name :
UMT
Model Number :
7309BECBM
Place of Origin :
Japan, Sweden
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
15 days
Packaging Details :
According to Per Client′s Requirements
Precision Rating :
P0 P6 P5 P4 P2
Model NO :
7309BECBM
Name :
Angular Contact Ball Bearing
Structure :
Angular Contact
Outside Diameter :
100 mm
Seals Type :
Open 2Z 2RS, open 2Z 2RS
Description

Brass cage DB DF DT install Angular Contact Ball Bearing 7309BECBM for lathe turning

Applications:

Used in common applications, such as compressors, industrial transmissions, railway drive systems,

automotive drive systems.

Description:

Angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings

have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex

mounting in sets for maximum performance. Double-row Conrad bearings can accommodate thrust in

both directions.

Quick Detail:

1. Structure: Angular Contact

2. Type: Ball

3. Brand Name: UMT

4. Bore Size: 45mm

5. Outside Diameter: 100mm

6. Model Number: 7309BECBM

7. Precision Rating: P0,P6,P5,P4,P2

8. Seals Type: Z,ZZ,RS,2RZ,2RS

9. Number of Row: Single Row

10. Place of Origin: Japan

11. Width: 25mm

12. Net weight: 0.95kg

13. Material: Chrome steel, Stainless steel

14. Cage: Steel,Brass,Nylon

15. Type: ball

16. Clearance: C0,C1,C2,C3,C4,C5 etc.

17. Vibration: V1,V2,V3

18. Service: OEM Service & Good Service

19. Sample available: Yes

20. Manufacturer: Yes

Specifications:

Brass cage DB DF DT install Angular Contact Ball Bearing 7309BECBM for lathe turning

Model Number

7309BECBM

Structure

Angular Contact

Type

Ball

Brand Name

UMT

Bore Size

45mm

Outside Diameter

100mm

Thickness

25mm

Net weight

0.95kg

Seals Type

Z, ZZ, RS, 2RZ, 2RS

Number of Row

Single Row

Place of Origin

Janpan

Material

Chrome steel, Stainless steel

Cage

Brass, Steel, Nylon

Vibration Level

V1, V2, V3

Clearance

C0, C1, C2, C3, C4, C5 etc.

Precision Rating

P0, P6, P5, P4, P2

Hardness

59-63HRC

Service

OEM or original brand

Sample available

Yes

Manufacturer

Yes

Quality guaranteed

Yes

Certificate

ISO9001:2008, ISO/TS16949

Application/Function

Automotive, truck, tractors, construction machinery

Other Service

Design service, Buyer label service

Packaging Details

Industrial Packing, Individual Boxed Packing, or OEM

Delivery Detail

2-7 days after receiving the payments or deposit

Competitive Advantage:

1. Quality level: reach the same level as the Japanese and European bearings

2. Tolerance level: ABEC-1 (P0), ABEC-3 (P6)

3. Less coefficient of friction

4. High limiting speed

5. Large size range

6. variations of structure
