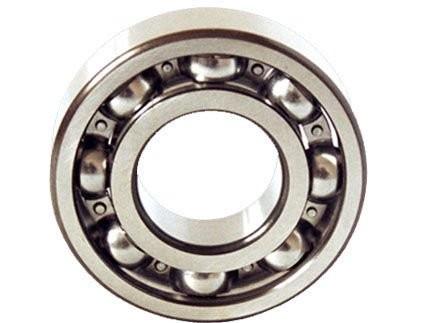

6304 ZZ 2RS Machine Bearing / 304 SS Stainless Ball Bearing P4 P5 P6
6304 ZZ 2RS Machine Bearing / 304 SS Stainless Ball Bearing P4 P5 P6
6304 ZZ 2RS Machine Bearing / 304 SS Stainless Ball Bearing P4 P5 P6
6304 ZZ 2RS Machine Bearing / 304 SS Stainless Ball Bearing P4 P5 P6
Specifications
Brand Name :
UMT, NSK,NTN,KOYO,NACHI,FAG,TIMKEN
Model Number :
6304 ZZ 2RS
Certification :
ISO9001:2000
Place of Origin :
China, Japan, Germany
MOQ :
100pcs
Price :
US0.03-1/Piece
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
100000pcs per month
Delivery Time :
2-7 working days
Packaging Details :
Box, Plastic , as customers' requirement
Application :
Textile machine, fans, ventilators, printing machine
Material :
Chrome steel, stainless steel
Payments :
T/T, L/C, Western Union
Delivery time :
2-7 working days
Inner diameter :
20mm
Outer diameter :
52mm
Overrunning speed :
16000r/min
Brand :
NSK NTN KOYO IKO TIMKEN
Weight :
0.145kg
Structure :
ball bearing
Description

6304 ZZ 2RS machine bearing 304 SS stainless Ball Bearing P4 P5 P6

Quick Detail:

1. Structure: Deep groove ball bearings

2. Brand Name: UMT, NTN, NSK, TIMKEN, KOYO

3. Bore Size: 20mm

4. Outside Diameter: 52mm

5. Model Number: 6304 ZZ 2RS

6. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4

7. Number of Row: Single row

8. Place of Origin: Japan

9. Width: 31mm

10. Net weight: 0.145KG

11. Material: GCr15 Stainless steel and so on

12. Type: ball bearing

13. Clearance: C0,C1,C2,C3,C4,C5 etc.

14. Vibration: V1,V2,V3

15. Service: OEM Service & Good Service

16. Sample available: Yes

17. Manufacturer: Yes

Brand UMT Bearing or OEM
Name Deep Groove Ball Bearing
Model 6000 Series - Extra Light Ball Bearings – Ideal for limited space applications
6200 Series - Light Series Ball Bearings – Balanced between space and load capacity
6300 Series - Medium Series Ball Bearings – Ideal for heavier load capacity
Material GCr15 Certificate ISO9001:2001
Precision P0, P6, P5
Bore Size: 10mm-100mm Outside diameter 25mm-220mm
Clearance C0,C1,C2,C3,C4,C5 etc.
Cage Type Brass cage or Stainless cage
Seals Type ZZ,RS, 2RS, R2, Z, 2Z, 2RZ etc
Features Deep groove ball bearing are simple in design, non-separable, suitable for high and even very high speeds and are robust in operation, requiring little maintenance.Deep-groove bearings have higher load ratings for their size than shallow-groove , but are also less tolerant of misalignment of the inner and outer races
Application Deep groove ball bearing suitable for precision instrument, low noise electromotor, automobile and motorcycle, etc. It is the the most widely used bearing type.
Package pallet, wooden case,industrial package or as customers' requirement
Price FOB, CFR, CIF Delivery Time

20-30 days

Applications:

They can be used for Transmission system, gearboxes, wheel hubs; Cranes, elevator and lifting

equipment; Agricultural, pumps, mining; Rail and transport use; General engineering applications;

Marine and Shipping;

The usage: Motors, Power tools, Household appliances, Trailers, Casters, Agricultural equipment,

Textile machinery, Printing Machinery, Automotive applications, Caravan wheel bearings.

Description:

Materials for bearing rings and parts largely determine the bearing's performance and life. FLATE/FUDA puts more efforts to select materials for bearing rings and part suppliers in a rigorous manner.

Materials and components of bearing rings for FLATE/FUDA bearings are provided by the world's top suppliers special for serving bearign manufacturers, fundamentally solvign the issue that our bearings lag behind imported bearings in terms of materialsfor a long time.

FLATE boasts a set of strict and polished incoming goods inspection system. Before being put into storage, every batch of steels and parts is under systemic inspection, including analysis of material composition, metallographice analysis, accuracy check, assembly test, etc.

Competitive Advantage:

1. Quality level: reach the same level as the Japanese and European bearings

2. Tolerance level: ABEC-1 (P0), ABEC-3 (P6)

3. Less coefficient of friction

4. High limiting speed

5. Large size range

6. variations of structure

Bearing ring and roller body are mainly made of high C-Cr bearing steel. Listed below are compositions of material for bearing ring and roller body.

Steel Code Chemical composition%
Gcr15
SAE52100
DIN 100 Cr6
JIS SUJ2		 C Si Mn P S Cr Mo Cu Ni
0.95-1.05 0.15-0.35 0.25-0.45 <0.025 <0.025 1.40-1.65 - <0.25 <0.30

6304 ZZ 2RS Machine Bearing / 304 SS Stainless Ball Bearing P4 P5 P66304 ZZ 2RS Machine Bearing / 304 SS Stainless Ball Bearing P4 P5 P6
