7006 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade and Hybrid Ceramic Balls for High Speed Operation
7006 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade and Hybrid Ceramic Balls for High Speed Operation
Specifications
Brand Name :
CNBTZC or OEM
Model Number :
7006 ACD/HCP4A
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Structure :
Angular Contact
Part Number :
7006 ACD/HCP4A Angular Contact Ball Bearing
Lubrication :
Grease,Oil
Design :
High-capacity D
Coating :
Without
Sealing :
Without
Delivery Time :
2-3 weeks
Replaceable With :
SKF, NSK
Seals Type :
Open (2RZ available)
Ring type :
One-piece inner and outer rings
Contact type :
Normal contact (two-point contact)
Description
7006 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing

7006 ACD/HCP4A 30×55×13 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing with Ceramic Balls for High Speed Applications

Super-precision, high-capacity, single row angular contact ball bearing designed for applications requiring exceptional rotational accuracy and stability.

Product Specifications
Part Number7006 ACD/HCP4A
Bearing TypeAngular Contact
Measurement UnitMetric
Dimensions
Inner Bore Diameter (d)30 mm
Inner Bore Diameter Tolerance-0.005mm to 0
Outer Bore Diameter (D)55 mm
Outer Bore Diameter Tolerance-0.007mm to 0
Width (B)13 mm
Width Tolerance-0.2mm to 0
Specifications
Contact Angle25° (15°, 40° Available)
MaterialHybrid (Chrome Steel Rings, Ceramic Balls)
Cage MaterialPhenolic
Number of Rows1 Single Row
Seal TypeOpen
Temperature Range-30°C to 150°C
LubricationGrease or Oil
Tolerance ClassP4A (better than P4)
Weight0.095 kg
Matched ArrangementNo
Universal Matching BearingNo
PreloadNot applicable
Load and Speed
Dynamic Radial Load13800 N
Static Radial Load7650 N
Reference Speed For Grease34,000 rpm
Limiting Speed For Oil53,000 rpm

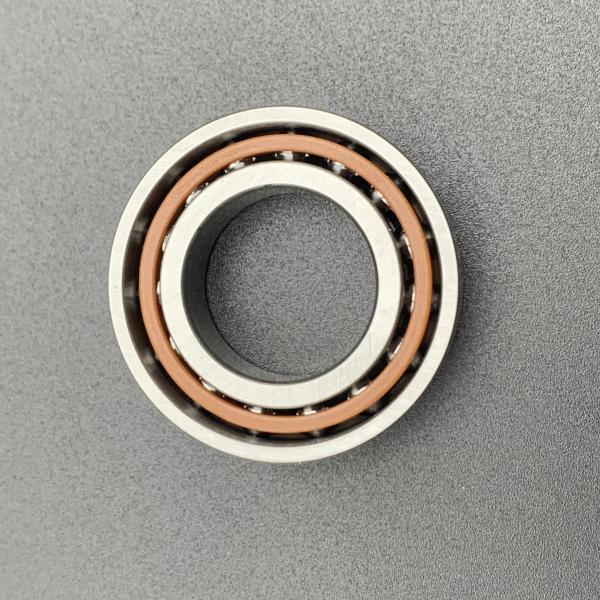

7006 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade and Hybrid Ceramic Balls for High Speed Operation 7006 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade and Hybrid Ceramic Balls for High Speed Operation
Performance Features

The 7006 ACD/HCP4A bearing is engineered for high-performance applications with P4A grade precision and angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.

Applications

The 7006 ACD/HCP4A bearing is a versatile and high-performance component widely used across various industries:

  • Industrial manufacturing equipment (spot welders, slitting machines)
  • Laboratory devices (mixers, pulverizers)
  • Plastic and rubber processing machinery (welding machines, ink mixers)
  • Medical devices and environmental protection equipment
  • Food machinery and clean environments

Its high speed, load capacity, precision, and resistance to harsh conditions make it suitable for demanding applications across different sectors.

Certifications & Services
CERTIFICATERoHS & REACH, IATF16949:2016
FeatureHigh Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
ServiceOEM & ODM Customized Services
SamplesPlease Contact Us
ServiceOnline Support, Professional Service
SizeStandard (Custom sizes available upon request)
Factory ManufacturerYes
