7204 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade and Hybrid Ceramic Balls for High Static Load Capacity
7204 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade and Hybrid Ceramic Balls for High Static Load Capacity
Specifications
Structure :
Angular Contact
Contact type :
Normal contact (two-point contact)
Replaceable With :
SKF, NSK
Brand Name :
CNBTZC or OEM
Model Number :
7204 ACD/HCP4A
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Coating :
Without
Lubrication :
Grease,Oil
Delivery Time :
2-3 weeks
Seals Type :
Open (2RZ available)
Ring type :
One-piece inner and outer rings
Part Number :
7204 ACD/HCP4A Angular Contact Ball Bearing
Design :
High-capacity D
Sealing :
Without
Description

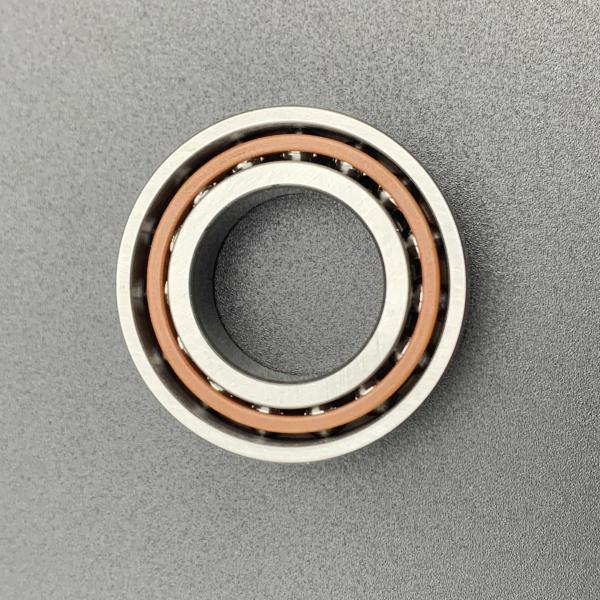

7204 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing
7204 ACD/HCP4A 20×47×14 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing with Ceramic Balls

Super-precision, high-capacity, single row angular contact ball bearing. The 7204 ACD/HCP4A bearing, with a bore diameter of 20 mm, outside diameter of 47 mm, and width of 14 mm, features precise dimensions, high static load capacity, and is manufactured to the P4A precision grade. Equipped with hybrid ceramic balls, this bearing delivers superior performance and reliability, making it ideal for applications that require high rotational accuracy and stability.
Technical Specifications
Part Number 7204 ACD/HCP4A
Bearing Type Angular Contact
Measurement Unit Metric
Dimensions Inner Bore Diameter (d): 20 mm
Inner Bore Diameter Tolerance: -0.005mm to 0
Outer Bore Diameter (D): 47 mm
Outer Bore Diameter Tolerance: -0.006mm to 0
Width (B): 14 mm
Width Tolerance: -0.2mm to 0
Specifications Contact Angle: 25° (15°, 40° Available)
Material: Hybrid (Chrome Steel Rings, Ceramic Balls)
Cage Material: Phenolic
Number of Rows: 1 Single Row
Seal Type: Open
Temperature Range: -30°C to 150°C
Lubrication: Grease or Oil
Tolerance Class: P4A better than P4 (ABEC-7)
Weight: 0.09 kg
Matched Arrangement: No
Universal Matching Bearing: No
Preload: Not applicable
Load and Speed Dynamic Radial Load: 11,400 N
Static Radial Load: 5,600 N
Reference Speed For Grease: 38,000 rpm
Limiting Speed For Oil: 56,000 rpm
7204 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade and Hybrid Ceramic Balls for High Static Load Capacity 7204 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade and Hybrid Ceramic Balls for High Static Load Capacity
Performance Features

The 7204 ACD/HCP4A angular contact ball bearing is manufactured to P4A precision grade standards and excels in high-precision and high-performance applications. Key features include:

  • Handles both radial and axial loads simultaneously
  • Supports high-speed operation with stability
  • Minimizes torque and friction for energy efficiency
  • Offers enhanced rigidity for accuracy under heavy loads
  • Built with hybrid ceramic balls for extended service life
  • Effective performance across wide temperature range
  • Superior rotational accuracy and reliability
Applications
The 7204 ACD/HCP4A bearing is a high-precision component vital to numerous industries, including industrial machinery, lifting equipment, heat treatment devices, and various engineering applications. It ensures optimal performance in:
  • Textile dyeing and finishing
  • Chemical separation processes
  • Logistics and construction lifting
  • Medical device stability
  • Pharmaceutical cutting and packaging machinery
  • Cooling systems and gear reducers
  • High-pressure reactors
  • Specialized machines for power, telecommunications, food processing, and metalworking
Certifications & Services
CERTIFICATE RoHS & REACH, IATF16949:2016
Feature High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service OEM&ODM Customized Services
Samples Please Contact Us
Service Online Support, Professional Service
Size Standard, For custom sizes, please contact us
Factory Manufacturer Yes
