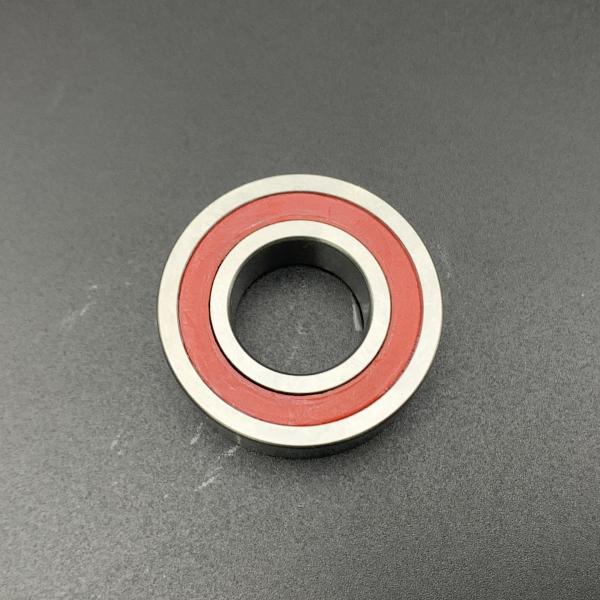

S7006 CE/HCP4A Super Precision High Speed Angular Contact Ball Bearing with Ceramic Balls
S7006 CE/HCP4A Super Precision High Speed Angular Contact Ball Bearing with Ceramic Balls
Specifications
Brand Name :
CNBTZC or OEM
Model Number :
S7006 CE/HCP4A
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Structure :
Angular Contact
Delivery Time :
2-4 weeks
Part Number :
S7006 CE/HCP4A Angular Contact Ball Bearing
Lubrication :
Grease
Design :
High-speed E
Coating :
Without
Sealing :
Without
Replaceable With :
SKF, NSK
Seals Type :
Sealed,Seal on both sides,2RZ
Ring type :
One-piece inner and outer rings
Contact type :
Normal contact (two-point contact)
Description
S7006 CE/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7006 2RZ

S7006 CE/HCP4A 30×55×13 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing with Ceramic Balls for High Speed Applications

Super-precision, high-speed E design, single row angular contact ball bearing with seals. The S7006 CE/HCP4A bearing features precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivering superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications
Part Number S7006 CE/HCP4A
Bearing Type Angular Contact
Measurement Unit Metric
Inner Bore Diameter (d) 30 mm
Inner Bore Diameter Tolerance -0.005mm to 0
Outer Bore Diameter (D) 55 mm
Outer Bore Diameter Tolerance -0.007mm to 0
Width (B) 13 mm
Width Tolerance -0.2mm to 0
Contact Angle 15° (25°, 40° Available)
Material Hybrid (Chrome Steel Rings, Ceramic Balls)
Cage Material Phenolic
Number of Rows 1 Single Row
Seal Type Seal on both sides
Temperature Range -30°C to 150°C
Lubrication Grease
Tolerance Class P4A (better than P4)
Weight 0.12 kg
Dynamic Radial Load 9360 N
Static Radial Load 5200 N
Reference Speed For Grease 47,000 rpm
Limiting Speed For Oil 73,000 rpm
S7006 CE/HCP4A Super Precision High Speed Angular Contact Ball Bearing with Ceramic Balls S7006 CE/HCP4A Super Precision High Speed Angular Contact Ball Bearing with Ceramic Balls
Performance Features

The S7006 CE/HCP4A bearing, engineered for high-performance applications, features P4A grade precision and angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications requiring exceptional accuracy and reliability.

  • High-speed E design with minimal vibration
  • P4A precision grade for exceptional accuracy
  • Hybrid ceramic balls for enhanced performance
  • Superior radial and axial load capacity
  • Smooth, quiet operation
  • Premium materials for durability and longevity
Applications

The S7006 CE/HCP4A bearing is prized for its exceptional speed performance and stability, making it ideal for high-precision applications across various industries.

  • Electric spindles
  • High-speed machining centers
  • Milling machines
  • Internal grinding machines
  • Woodworking machinery
  • Automation equipment
  • Aerospace components
  • Medical devices

Certifications: RoHS & REACH, IATF16949:2016

Manufacturing & Services:

  • Factory Manufacturer: Yes
  • Features: High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
  • Service: OEM & ODM Customized Services
  • Samples: Available upon request
  • Support: Online Support, Professional Service
  • Sizes: Standard sizes available, custom sizes upon consultation
