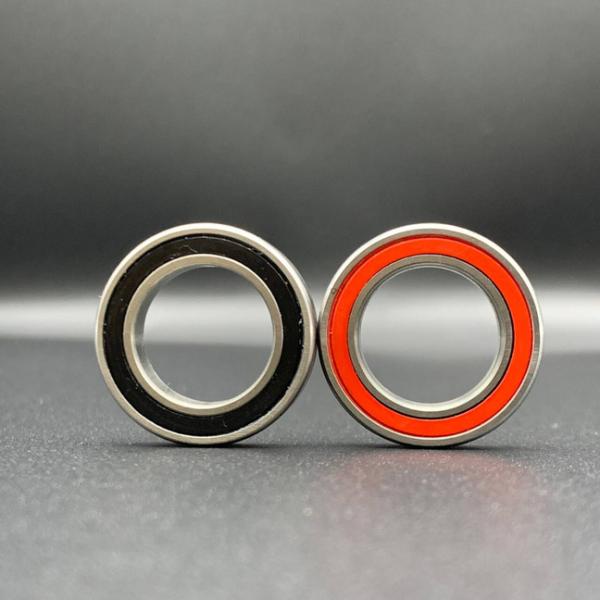

S71901 CDGA/HCP4A Precision Ball Bearing 12x24x6 mm P4A Precision Grade High Speed 85,000 rpm Angular Contact Ball Bearing
S71901 CDGA/HCP4A Precision Ball Bearing 12x24x6 mm P4A Precision Grade High Speed 85,000 rpm Angular Contact Ball Bearing
Specifications
Brand Name :
CNBTZC or OEM
Model Number :
S71901 CDGA/HCP4A
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
100000pcs per month

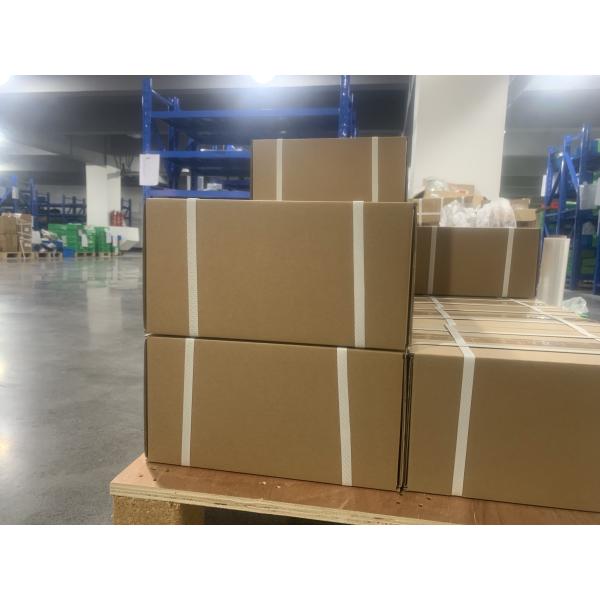

Packaging Details :
plastic bag,box,carton,pallet
Structure :
Angular Contact
Part Number :
S71901 CDGA/HCP4A Angular Contact Ball Bearing
Lubrication :
Grease
Design :
High-capacity D
Coating :
Without
Sealing :
Without
Replaceable With :
SKF, NSK
Seals Type :
Sealed,Seal on both sides,2RZ
Ring type :
One-piece inner and outer rings
Contact type :
Normal contact (two-point contact)
Description
S71901 CDGA/HCP4A Precision Ball Bearings 12x24x6 High Speed Ceramic Bearings
Product Overview

S71901 CDGA/HCP4A Super Precision Single Row Angular Contact Ball Bearing

S71901 CDGA/HCP4A 12×24×6 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Hybrid Ceramic Balls High Speed

Super-precision, high-capacity D design, universally matchable single row angular contact ball bearing with seals.

The S71901 CDGA/HCP4A bearing features precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivering superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications
Part Number S71901 CDGA/HCP4A
Bearing Type Angular Contact
Measurement Unit Metric
Inner Bore Diameter (d) 12 mm
Inner Bore Diameter Tolerance -0.004mm to 0
Outer Bore Diameter (D) 24 mm
Outer Bore Diameter Tolerance -0.004mm to 0
Width (B) 6 mm
Width Tolerance -0.2mm to 0
Contact Angle 15° (25°, 40° Available)
Material Hybrid (Chrome Steel Rings, Ceramic Balls)
Cage Material Phenolic
Number of Rows 1 Single Row
Seal Type Seal on both sides
Temperature Range -30°C to 150°C
Lubrication Grease
Tolerance Class P4A better than P4 (ABEC-7)
Weight 0.009 kg
Matched Arrangement No
Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>) DB, DF, DT 2 bearings
Preload EL/Extra Light/Class A
Dynamic Radial Load 2650 N
Static Radial Load 1250 N
Reference Speed For Grease (r/min) 85,000 rpm
Limiting Speed For Oil (r/min) 130,000 rpm
S71901 CDGA/HCP4A Precision Ball Bearing 12x24x6 mm P4A Precision Grade High Speed 85,000 rpm Angular Contact Ball Bearing S71901 CDGA/HCP4A Precision Ball Bearing 12x24x6 mm P4A Precision Grade High Speed 85,000 rpm Angular Contact Ball Bearing
Performance Features
  • Engineered for high-precision and high-performance applications
  • Very tight tolerances suitable for precise machinery
  • Ability to handle both radial and axial loads simultaneously
  • High-speed operation with stability
  • Low torque and friction for energy efficiency
  • Enhanced rigidity for accuracy under heavy loads
  • Durability with extended service life
  • Effective performance across a wide temperature range
Applications

The S71901 CDGA/HCP4A bearing is essential in various industries for its ability to handle high radial and axial loads with low friction and high precision, even at high speeds.

  • Machine Tools: Enhance spindle accuracy for better machining quality
  • Aerospace: Support engine shafts under extreme conditions
  • Automotive: Improve wheel hub and transmission performance, enhancing safety and efficiency
  • Industrial Robots: Ensure precise and stable joint movement

These bearings are crucial for achieving high performance and reliability across different sectors.

Certifications & Services
Certificates RoHS & REACH, IATF16949:2016
Features High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service OEM & ODM Customized Services
Samples Please Contact Us
Support Online Support, Professional Service
Size Standard, For custom sizes, please contact us
Factory Manufacturer Yes
