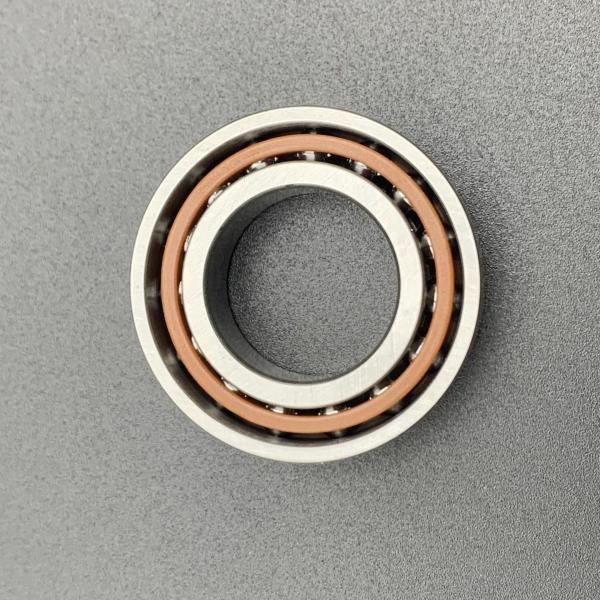

7200 ACD/HCP4A Hybrid Ceramic Bearing with 10 mm Bore Diameter P4A Precision Grade for High Speed 95,000 rpm Applications
7200 ACD/HCP4A Hybrid Ceramic Bearing with 10 mm Bore Diameter P4A Precision Grade for High Speed 95,000 rpm Applications
Specifications
Structure :
Angular Contact
Brand Name :
CNBTZC or OEM
Model Number :
7200 ACD/HCP4A
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Part Number :
Hybrid Ceramic Bearings
Ring type :
One-piece inner and outer rings
Sealing :
Without
Contact type :
Normal contact (two-point contact)
Delivery Time :
2-4 weeks
Design :
High-capacity D
Coating :
Without
Seals Type :
Open (2RZ available)
Lubrication :
Grease,Oil
Replaceable With :
SKF, NSK
Description
7200 ACD/HCP4A Hybrid Ceramic Bearings - High Speed Precision Angular Contact OEM Bearings

7200 ACD/HCP4A 10×30×9 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing with Ceramic Balls

Super-precision, high-capacity, single row angular contact ball bearing designed for exceptional performance and reliability.

7200 ACD/HCP4A Hybrid Ceramic Bearing with 10 mm Bore Diameter P4A Precision Grade for High Speed 95,000 rpm Applications 7200 ACD/HCP4A Hybrid Ceramic Bearing with 10 mm Bore Diameter P4A Precision Grade for High Speed 95,000 rpm Applications
Product Specifications
Part Number 7200 ACD/HCP4A
Bearing Type Angular Contact
Measurement Unit Metric
Dimensions
Inner Bore Diameter (d) 10 mm
Inner Bore Diameter Tolerance -0.004mm to 0
Outer Bore Diameter (D) 30 mm
Outer Bore Diameter Tolerance -0.005mm to 0
Width (B) 9 mm
Width Tolerance -0.2mm to 0
Specifications
Contact Angle 25° (15°, 40° Available)
Material Hybrid (Chrome Steel Rings, Ceramic Balls)
Cage Material Phenolic
Number of Rows 1 Single Row
Seal Type Open
Temperature Range -30°C to 150°C
Lubrication Grease or Oil
Tolerance Class P4A better than P4 (ABEC-7)
Weight 0.029 kg
Matched Arrangement No
Universal Matching Bearing No
Preload Not applicable
Load and Speed
Dynamic Radial Load 4360 N
Static Radial Load 1860 N
Reference Speed For Grease (r/min) 63,000 rpm
Limiting Speed For Oil (r/min) 95,000 rpm
Performance Features of 7200 ACD/HCP4A Bearing

The 7200 ACD/HCP4A angular contact ball bearing is manufactured to P4A precision grade standards and excels in high-precision and high-performance applications. Key features include:

  • Handles both radial and axial loads simultaneously
  • Supports high-speed operation with exceptional stability
  • Minimizes torque and friction for improved energy efficiency
  • Provides enhanced rigidity for accuracy under heavy loads
  • Hybrid ceramic balls ensure extended service life
  • Effective performance across wide temperature range (-30°C to 150°C)
  • Superior rotational accuracy and reliability
Applications of 7200 ACD/HCP4A Bearing

The 7200 ACD/HCP4A precision angular contact ball bearing is widely employed across various industrial sectors including:

  • Industrial machinery and equipment
  • Automotive systems and components
  • Construction and engineering machinery
  • Specialized manufacturing processes
  • Sewing machines and textile equipment
  • Aeration systems and ventilation
  • Tower cranes and lifting equipment
  • Ceramic machinery and processing equipment

This bearing provides critical support for high-precision positioning, power transmission, and speed regulation, making it a preferred choice for ensuring high performance, reliability, and efficiency across diverse industries.

Certifications & Services
Certificates RoHS & REACH, IATF16949:2016
Features High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service OEM & ODM Customized Services
Samples Please Contact Us
Support Online Support, Professional Service
Size Options Standard sizes available, custom sizes upon request
Manufacturer Factory Manufacturer
