71900 CE/HCPA9A Hybrid Ball Bearing with 10 mm Bore Diameter Hybrid Ceramic Balls and High Speed E Design
71900 CE/HCPA9A Hybrid Ball Bearing with 10 mm Bore Diameter Hybrid Ceramic Balls and High Speed E Design
Specifications
Seals Type :
Open (2RZ available)
Design :
High-speed E
Delivery Time :
2-4 weeks
Structure :
Angular Contact
Ring type :
One-piece inner and outer rings
Brand Name :
CNBTZC or OEM
Model Number :
71900 CE/HCPA9A
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Part Number :
Hybrid Ball Bearing
Sealing :
Without
Lubrication :
Grease,Oil
Replaceable With :
SKF, NSK
Coating :
Without
Contact type :
Normal contact (two-point contact)
Description
71900 CE/HCPA9A Hybrid Ball Bearing Angular Contact High Performance Ball Bearings Single Row 7900
Product Overview

71900 CE/HCPA9A 10×22×6 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed Hybrid E Design Single Row

Super-precision, high-speed E design, single row angular contact ball bearing featuring precise dimensions, high static load capacity, PA9A precision grade, and hybrid ceramic balls, delivering superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications
Part Number71900 CE/HCPA9A
Bearing TypeAngular Contact
Measurement UnitMetric
Inner Bore Diameter (d)10 mm
Inner Bore Diameter Tolerance-0.004mm to 0
Outer Bore Diameter (D)22 mm
Outer Bore Diameter Tolerance-0.004mm to 0
Width (B)6 mm
Width Tolerance-0.2mm to 0
Contact Angle15° (25°, 40° Available)
MaterialHybrid (Chrome Steel Rings, Ceramic Balls)
Cage MaterialPhenolic
Number of Rows1 Single Row
Seal TypeOpen
Temperature Range-30°C to 150°C
LubricationGrease or Oil
Tolerance ClassPA9A
Weight0.009 kg
Dynamic Radial Load2030 N
Static Radial Load780 N
Reference Speed For Grease123,000 rpm
Limiting Speed For Oil185,000 rpm

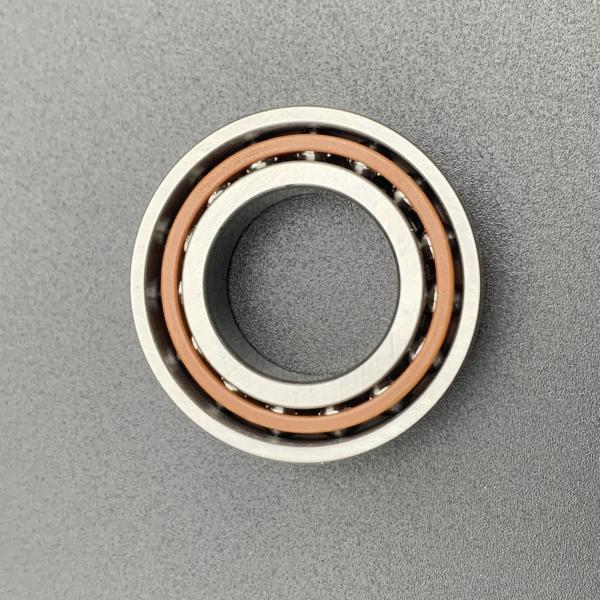

Product Images

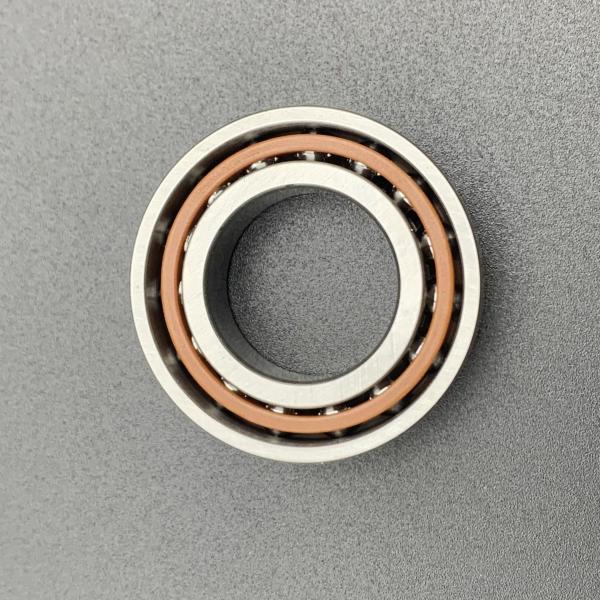

71900 CE/HCPA9A Hybrid Ball Bearing with 10 mm Bore Diameter Hybrid Ceramic Balls and High Speed E Design 71900 CE/HCPA9A Hybrid Ball Bearing with 10 mm Bore Diameter Hybrid Ceramic Balls and High Speed E Design
Performance Features
  • Engineered for high-precision and high-performance applications
  • Very tight tolerances suitable for precise machinery
  • Ability to handle both radial and axial loads simultaneously
  • High-speed operation with stability
  • Low torque and friction for energy efficiency
  • Enhanced rigidity for accuracy under heavy loads
  • Durability with extended service life
  • Effective performance across wide temperature range
Applications
  • Machine tools
  • Photovoltaic equipment
  • Mold manufacturing
  • Metal cutting
  • Automotive components
  • 3C products (computers, communications, consumer electronics)

Its ability to handle high speeds, heavy loads, and ensure stable operation makes it an essential component in applications ranging from precision machinery to electronic devices, supporting reliable performance and enhancing production efficiency.

Certifications & Services
CERTIFICATERoHS & REACH, IATF16949:2016
FeatureHigh Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
ServiceOEM&ODM Customized Services
SamplesPlease Contact Us
ServiceOnline Support, Professional Service
SizeStandard, For custom sizes please contact us
Factory ManufacturerYes
Customization Available: Contact us for OEM & ODM services, custom sizes, and sample requests.
