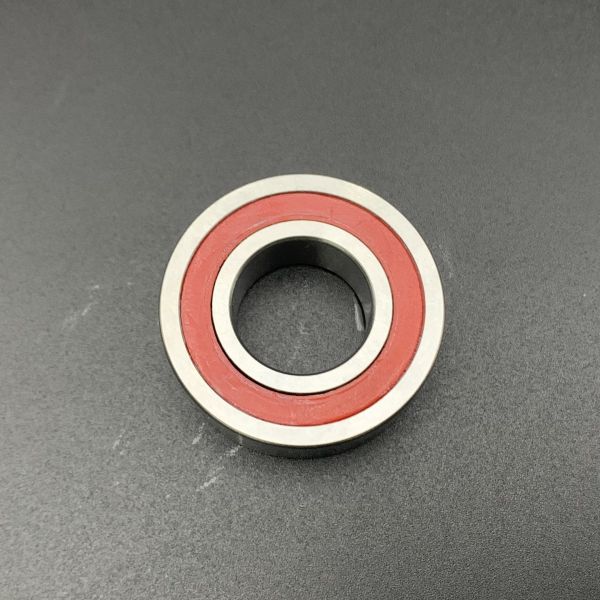

S7203 CD/HCP4A P4A Precision Grade Angular Contact Ball Bearing with Hybrid Ceramic Balls 17x40x12mm
S7203 CD/HCP4A P4A Precision Grade Angular Contact Ball Bearing with Hybrid Ceramic Balls 17x40x12mm
Specifications
Contact type :
Normal contact (two-point contact)
Seals Type :
Sealed,Seal on both sides,2RZ
Part Number :
S7203 CD/HCP4A Angular Contact Ball Bearing
Brand Name :
CNBTZC or OEM
Model Number :
S7203 CD/HCP4A
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Design :
High-capacity D
Ring type :
One-piece inner and outer rings
Delivery Time :
30 days
Sealing :
Without
Structure :
Angular Contact
Lubrication :
Grease
Coating :
Without
Replaceable With :
SKF, NSK S7203CSN24TRV1VP4
Description
S7203 CD/HCP4A Single Row Angular Contact Ball Bearing 17x40x12mm
Product Overview

S7203 CD/HCP4A 17×40×12 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing with Ceramic Balls. This super-precision, high-capacity bearing features precise dimensions, high static load capacity, and is manufactured to the P4A precision grade.

S7203 CD/HCP4A P4A Precision Grade Angular Contact Ball Bearing with Hybrid Ceramic Balls 17x40x12mm S7203 CD/HCP4A P4A Precision Grade Angular Contact Ball Bearing with Hybrid Ceramic Balls 17x40x12mm
Technical Specifications
Part Number S7203 CD/HCP4A
Bearing Type Angular Contact
Measurement Unit Metric
Inner Bore Diameter (d) 17 mm
Inner Bore Diameter Tolerance -0.004mm to 0
Outer Bore Diameter (D) 40 mm
Outer Bore Diameter Tolerance -0.006mm to 0
Width (B) 12 mm
Width Tolerance -0.2mm to 0
Contact Angle 15° (25°, 40° Available)
Material Hybrid (Chrome Steel Rings, Ceramic Balls)
Cage Material Phenolic
Number of Rows 1 Single Row
Seal Type Seal on both sides
Temperature Range -30°C to 150°C
Lubrication Grease
Tolerance Class P4A better than P4 (ABEC-7)
Weight 0.056 kg
Load and Speed Ratings
Dynamic Radial Load 9230 N
Static Radial Load 4150 N
Reference Speed For Grease 53,000 rpm
Limiting Speed For Oil 75,000 rpm
Performance Features

The S7203 CD/HCP4A angular contact ball bearing is manufactured to P4A precision grade standards and excels in high-precision and high-performance applications. It handles both radial and axial loads simultaneously, supports high-speed operation with stability, minimizes torque and friction for energy efficiency, and offers enhanced rigidity for accuracy under heavy loads.

  • Built with hybrid ceramic balls for extended service life
  • Effective performance across wide temperature range
  • Superior rotational accuracy and reliability
  • High-speed capability with minimal friction
Applications

This precision angular contact ball bearing is known for its high-speed performance and load capacity, making it ideal for applications requiring high precision and stability.

  • High-speed machining centers
  • Milling machines and internal grinding machines
  • Metal cutting machine tools
  • Woodworking machinery
Certifications & Services
Certifications:
RoHS & REACH, IATF16949:2016
Features:
High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Services:
OEM & ODM Customized Services, Online Support, Professional Service
Sizes:
Standard sizes available, custom sizes upon request
