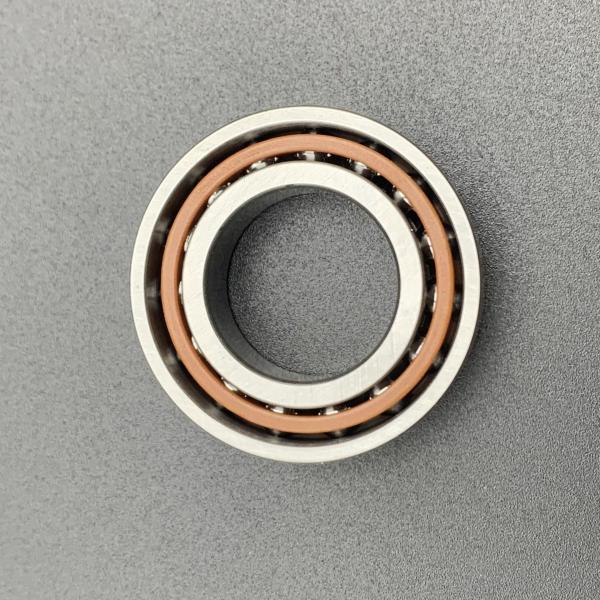

7002 CE/HCPA9ADGA High Speed Hybrid Ceramic Ball Bearing with 15° Contact Angle and PA9A Precision Grade for 127,000 rpm
7002 CE/HCPA9ADGA High Speed Hybrid Ceramic Ball Bearing with 15° Contact Angle and PA9A Precision Grade for 127,000 rpm
Specifications
Lubrication :
Grease,Oil
Design :
High-speed E
Coating :
Without
Sealing :
Without
Structure :
Angular Contact
Part Number :
7002 CE/HCPA9ADGA Angular Contact Ball Bearing
Brand Name :
CNBTZC or OEM
Model Number :
7002 CE/HCPA9ADGA
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Delivery Time :
2-4 weeks
Replaceable With :
SKF, NSK
Seals Type :
Open (2RZ available)
Ring type :
One-piece inner and outer rings
Contact type :
Normal contact (two-point contact)
Description
7002 CE/HCPA9ADGA High Speed Ceramic Bearings, Hybrid Ceramic Ball Bearings Angular Contact
7002 CE/HCPA9ADGA Super Precision Single Row Angular Contact Ball Bearing

7002 CE/HCPA9ADGA 15×32×18 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed

Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings.

The 7002 CE/HCPA9ADGA bearing, with bore diameter of 15 mm, outside diameter of 32 mm, and width of 18 mm, features precise dimensions, high static load capacity, PA9A precision grade, and hybrid ceramic balls. It delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications
Part Number 7002 CE/HCP4ADGA
Bearing Type Angular Contact
Measurement Unit Metric
Dimensions Inner Bore Diameter (d): 15 mm
Inner Bore Diameter Tolerance: -0.004mm to 0
Outer Bore Diameter (D): 32 mm
Outer Bore Diameter Tolerance: -0.004 mm to 0
Width (B): 18 mm (2×9 mm)
Width Tolerance: -0.2mm to 0
Specifications Contact Angle: 15° (25°, 40° Available)
Material: Hybrid (Chrome Steel Rings, Ceramic Balls)
Cage Material: Phenolic
Number of Rows: 2 (2× Single Row)
Seal Type: Open
Temperature Range: -30°C to 150°C
Number of bearings in matched set: 2
Tolerance Class: PA9A
Weight: 0.05 kg
Matched Arrangement: Universal Matching
Universal Matching Bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>) DB, DF, DT 2 bearings
Preload: EL/Extra Light/Class A
Load and Speed Dynamic Radial Load: 7150 N
Static Radial Load: 3800 N
Reference Speed For Grease: 83,000 rpm
Limiting Speed For Oil: 127,000 rpm
7002 CE/HCPA9ADGA High Speed Hybrid Ceramic Ball Bearing with 15° Contact Angle and PA9A Precision Grade for 127,000 rpm 7002 CE/HCPA9ADGA High Speed Hybrid Ceramic Ball Bearing with 15° Contact Angle and PA9A Precision Grade for 127,000 rpm
Performance Features of 7002 CE/HCPA9ADGA Bearing

The 7002 CE/HCPA9ADGA bearing, engineered for high-performance applications, features PA9A grade precision and angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.

Applications of the 7002 CE/HCPA9ADGA Bearing

The 7002 CE/HCPA9ADGA bearing, a super-precision angular contact ball bearing, is widely employed across multiple industrial sectors for its robust performance and precision:

  • Supports critical operations in metallurgy and mining machinery, enhancing efficiency and stability of equipment like rolling mills and excavators
  • Improves machining accuracy and construction safety in machine tool and construction industries with applications in CNC machines and cranes
  • Plays vital role in power generation, including wind and thermal power plants
  • Ensures reliable operation in railway systems
  • Durability under extreme conditions makes it suitable for aerospace and petrochemical applications
Certifications and Services
CERTIFICATE RoHS & REACH, IATF16949:2016
Feature High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity

Service: OEM&ODM Customized Services

Samples: Please Contact Us

Service: Online Support, Professional Service

Size: Standard. For custom sizes, please contact us

Factory Manufacturer: Yes
