71800 CDGA/HCP4 Hybrid Ball Bearing High Speed Ceramic Balls P4 Precision Grade Angular Contact Ball Bearing
71800 CDGA/HCP4 Hybrid Ball Bearing High Speed Ceramic Balls P4 Precision Grade Angular Contact Ball Bearing
Specifications
Contact type :
Normal contact (two-point contact)
Sealing :
Without
Design :
High-capacity D
Ring type :
One-piece inner and outer rings
Replaceable With :
SKF
Brand Name :
CNBTZC or OEM
Model Number :
71800 CDGA/HCP4
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Part Number :
Hybrid Ball Bearing
Structure :
Angular Contact
Seals Type :
Open (2RZ available)
Lubrication :
Grease,Oil
Coating :
Without
Delivery Time :
2-4 weeks
Description
71800 CDGA/HCP4 Single Row Hybrid Ball Bearing High Speed Ceramic Bearings 7800
Product Overview

71800 CDGA/HCP4 Hybrid Super-Precision Universally Matchable Single Row Angular Contact Ball Bearing

The 71800 CDGA/HCP4 bearing features a bore diameter of 10 mm, outside diameter of 19 mm, and width of 5 mm. With precise dimensions, high static load capacity, P4 precision grade, and hybrid ceramic balls, this bearing delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications
Part Number 71800 CDGA/HCP4
Bearing Type Angular Contact
Measurement Unit Metric
Dimensions Inner Bore Diameter (d): 10 mm
Inner Bore Diameter Tolerance: -0.004mm to 0
Outer Bore Diameter (D): 19 mm
Outer Bore Diameter Tolerance: -0.004mm to 0
Width (B): 5 mm
Width Tolerance: -0.2mm to 0
Specifications Contact Angle: 15° (25°, 40° Available)
Material: Hybrid (Chrome Steel Rings, Ceramic Balls)
Cage Material: Phenolic
Number of Rows: 1 Single Row
Seal Type: Open
Temperature Range: -30°C to 150°C
Lubrication: Grease or Oil
Tolerance Class: P4 (ABEC-7)
Weight: 0.005 kg
Matched Arrangement: No
Universal Matching Bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings
Preload: EL/Extra Light/Class A
Load and Speed Dynamic Radial Load: 1900 N
Static Radial Load: 980 N
Reference Speed For Grease: 95,000 rpm
Limiting Speed For Oil: 150,000 rpm

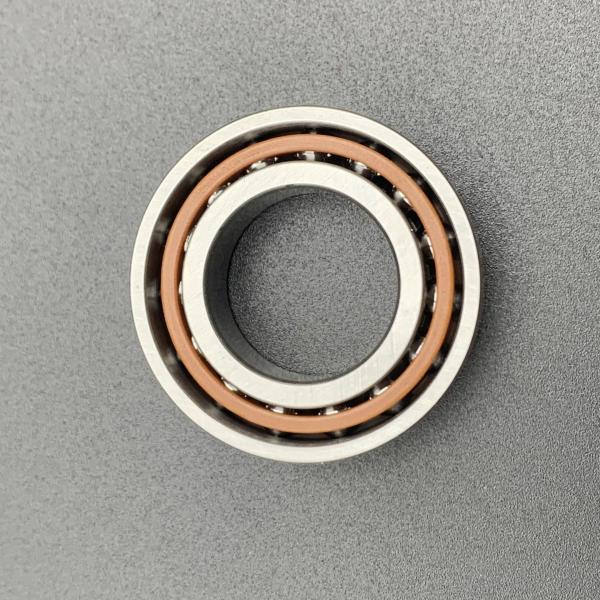

Product Images
71800 CDGA/HCP4 Hybrid Ball Bearing High Speed Ceramic Balls P4 Precision Grade Angular Contact Ball Bearing 71800 CDGA/HCP4 Hybrid Ball Bearing High Speed Ceramic Balls P4 Precision Grade Angular Contact Ball Bearing
Performance Features

The 71800 CDGA/HCP4 angular contact ball bearing is engineered for high-precision and high-performance applications, featuring:

  • Very tight tolerances suitable for precise machinery
  • Ability to handle both radial and axial loads simultaneously
  • High-speed operation with stability
  • Low torque and friction for energy efficiency
  • Enhanced rigidity for accuracy under heavy loads
  • Durability with extended service life
  • Effective performance across a wide temperature range
Applications

The 71800 CDGA/HCP4 bearing, a precision angular contact ball bearing, is essential for ensuring stable and efficient operation across a wide range of applications:

  • Internal combustion engines
  • Small car front wheels for driving and steering stability
  • Automobile engines for reduced friction
  • Differentials and railway vehicle axles
  • Extruders and injection molding machines for precise rotational needs
  • Planetary gear reducers and gantry cranes
  • Tubular reactors
  • Toys, earthmoving machinery, textile equipment, mining metal detectors
  • Various processing and manufacturing devices
Certification & Services

Certificates: RoHS & REACH, IATF16949:2016

Features: High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity

Services: OEM & ODM Customized Services, Online Support, Professional Service

Samples: Please Contact Us

Size: Standard (Custom sizes available upon request)

Factory Manufacturer: Yes
