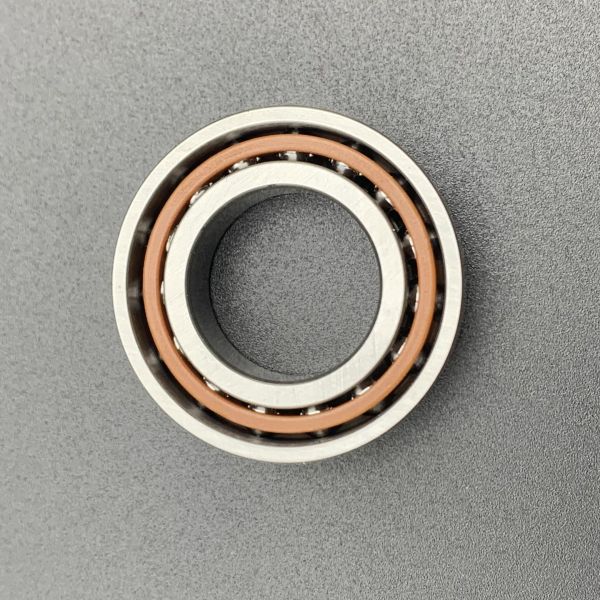

7002 ACD/P4A Super Precision High Capacity High Speed Angular Contact Ball Bearing
7002 ACD/P4A Super Precision High Capacity High Speed Angular Contact Ball Bearing
Specifications
Structure :
Angular Contact
Part Number :
7002 ACD/P4A Angular Contact Ball Bearing
Lubrication :
Grease,Oil
Design :
High-capacity D
Brand Name :
CNBTZC or OEM
Model Number :
7002 ACD/P4A
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Coating :
Without
Sealing :
Without
Delivery Time :
30 days
Replaceable With :
SKF, NSK S7002A5TRP4
Seals Type :
Open (2RZ available)
Ring type :
One-piece inner and outer rings
Contact type :
Normal contact (two-point contact)
Description
7002 ACD/P4A Super Precision Single Row Angular Contact Ball Bearing

Super-precision, high-capacity, single row angular contact ball bearing with high-speed capability.

Product Specifications
Part Number7002 ACD/P4A
Bearing TypeAngular Contact
Measurement UnitMetric
Inner Bore Diameter (d)15 mm
Inner Bore Diameter Tolerance-0.004mm to 0
Outer Bore Diameter (D)32 mm
Outer Bore Diameter Tolerance-0.006mm to 0
Width (B)9 mm
Width Tolerance-0.2mm to 0
Contact Angle25° (15°, 40° Available)
MaterialChrome Steel
Cage MaterialPhenolic
Number of Rows1 Single Row
Seal TypeOpen
Temperature Range-30°C to 150°C
LubricationGrease or oil
Tolerance ClassP4A (better than P4)
Weight0.03 kg
Load and Speed Ratings
Dynamic Radial Load4940 N
Static Radial Load2320 N
Reference Speed For Grease50,000 rpm
Limiting Speed For Oil75,000 rpm
7002 ACD/P4A Super Precision High Capacity High Speed Angular Contact Ball Bearing 7002 ACD/P4A Super Precision High Capacity High Speed Angular Contact Ball Bearing
Performance Features

The 7002 ACD/P4A bearing is engineered for high-performance applications with P4A grade precision and angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications requiring exceptional accuracy and reliability.

Applications

The 7002 ACD/P4A bearing is widely utilized in precision machinery and industrial production equipment. It ensures stable performance under high-speed operation, making it ideal for applications including:

  • Sewing machine pressing tables
  • Magnetic separators and curved guide systems
  • Elevators, condensers, and high-pressure reactors
  • Aluminum welders and box dryers
  • Metering pumps and cold welders
  • Hot air furnaces and forming machines
  • Roll welders and specialized machinery

This bearing is an indispensable component for achieving stable, accurate, and efficient performance in modern mechanical systems.

Certifications & Services
CertificatesRoHS & REACH, IATF16949:2016
FeaturesHigh Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
ServicesOEM & ODM Customized Services, Online Support, Professional Service
SamplesPlease Contact Us
Size AvailabilityStandard sizes available, custom sizes upon request
Factory ManufacturerYes
