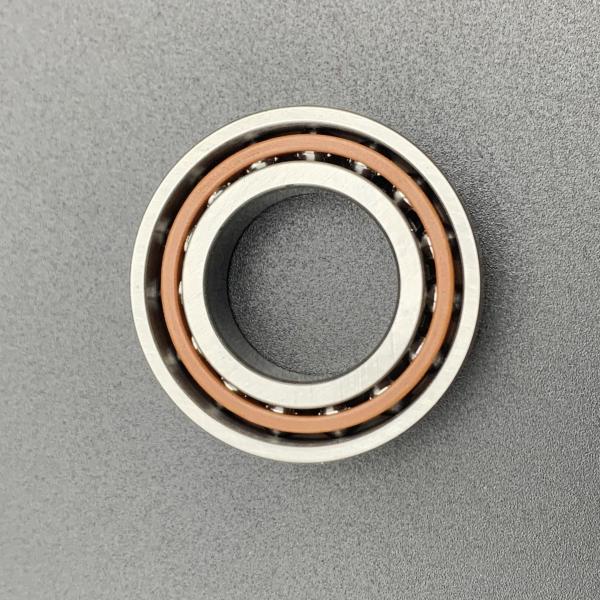

V7001 CEGA/P4A Super Precision Angular Contact Ball Bearing 12x28x8 mm High Speed 127,000 rpm P4A Precision
V7001 CEGA/P4A Super Precision Angular Contact Ball Bearing 12x28x8 mm High Speed 127,000 rpm P4A Precision
Specifications
Design :
High-speed E
Sealing :
Without
Coating :
Without
Delivery Time :
30 days
Replaceable With :
SKF, NSK 7001CTRP4
Ring type :
One-piece inner and outer rings
Contact type :
Normal contact (two-point contact)
Lubrication :
Grease,Oil
Seals Type :
Open (2RZ available)
Brand Name :
CNBTZC or OEM
Model Number :
V7001 CEGA/P4A
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Part Number :
V7001 CEGA/P4A Angular Contact Ball Bearing
Structure :
Angular Contact
Description
V7001 CEGA/P4A Super Precision High Speed Single Row Angular Contact Ball Bearing
V7001 CEGA/P4A 12×28×8 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing - High Speed

Super-precision, high-speed E design, universally matchable single row angular contact ball bearing.

The V7001 CEGA/P4A bearing features a bore diameter of 12 mm, outside diameter of 28 mm, and width of 8 mm. With precise dimensions, high static load capacity, and P4A precision grade, it delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
Technical Specifications
Part Number V7001 CEGA/P4A
Bearing Type Angular Contact
Measurement Unit Metric
Dimensions Inner Bore Diameter (d): 12 mm
Inner Bore Diameter Tolerance: -0.004mm to 0
Outer Bore Diameter (D): 28 mm
Outer Bore Diameter Tolerance: -0.004mm to 0
Width (B): 8 mm
Width Tolerance: -0.2mm to 0
Specifications Contact Angle: 15° (25°, 40° Available)
Material: Chrome Steel
Cage Material: Phenolic
Number of Rows: 1 Single Row
Seal Type: Open
Temperature Range: -30°C to 150°C
Lubrication: Grease or oil
Tolerance Class: P4A (better than P4)
Weight: 0.019 kg
Matched Arrangement: No
Universal Matching Bearing: Yes (back-to-back, face-to-face, or tandem arrangements)
Load and Speed Dynamic Radial Load: 3190 N
Static Radial Load: 1340 N
Reference Speed For Grease: 80,000 rpm
Limiting Speed For Oil: 127,000 rpm
V7001 CEGA/P4A Super Precision Angular Contact Ball Bearing 12x28x8 mm High Speed 127,000 rpm P4A Precision V7001 CEGA/P4A Super Precision Angular Contact Ball Bearing 12x28x8 mm High Speed 127,000 rpm P4A Precision
Performance Features of V7001 CEGA/P4A Bearing
The V7001 CEGA/P4A bearing is engineered for high-performance applications, featuring P4A grade precision and an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
Applications of the V7001 CEGA/P4A Bearing
The V7001 CEGA/P4A bearing, a super-precision angular contact ball bearing, excels in high-precision applications within the machine tool industry, particularly in spindle operations, offering exceptional accuracy and reliability. Its superior speed performance, load-carrying capacity, and rigidity make it ideal for high-speed machining centers, milling machines, internal grinders, and woodworking machinery, ensuring stable, precise, and efficient operation across these critical applications.
Certification & Services
CERTIFICATE RoHS & REACH, IATF16949:2016
Feature High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service OEM & ODM Customized Services
Samples Please Contact Us
Service Online Support, Professional Service
Size Standard (Custom sizes available upon request)
Factory Manufacturer Yes
