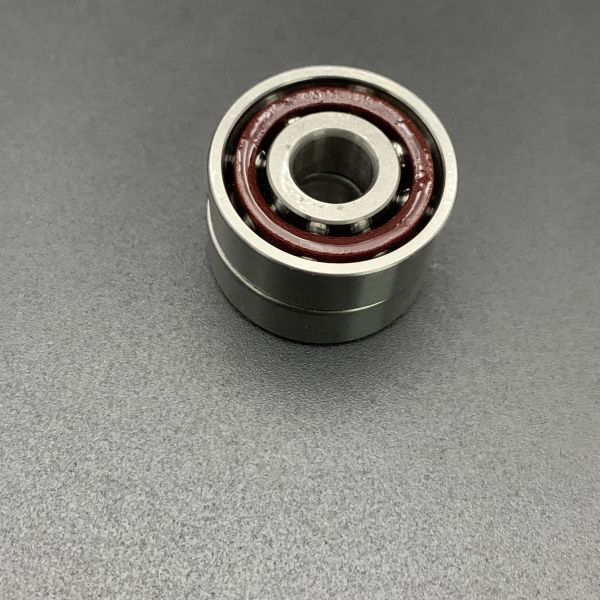

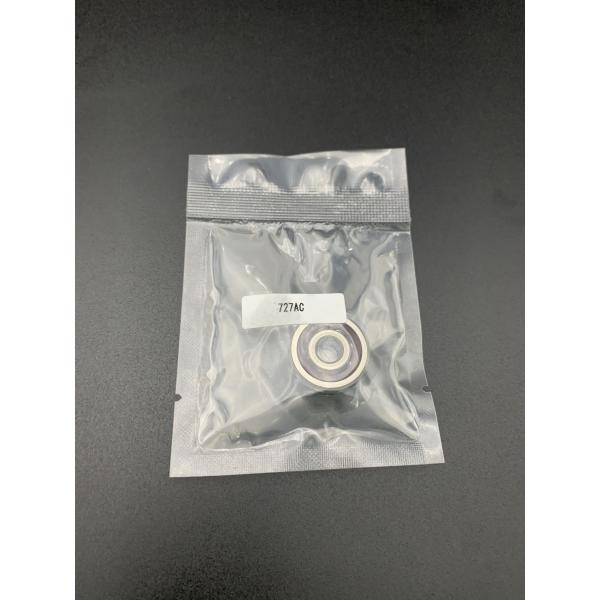

727AC High Precision P4/ABEC-7 Angular Contact Ball Bearing with 25° Contact Angle and 7x22x7mm Dimensions
727AC High Precision P4/ABEC-7 Angular Contact Ball Bearing with 25° Contact Angle and 7x22x7mm Dimensions
727AC High Precision P4/ABEC-7 Angular Contact Ball Bearing with 25° Contact Angle and 7x22x7mm Dimensions
727AC High Precision P4/ABEC-7 Angular Contact Ball Bearing with 25° Contact Angle and 7x22x7mm Dimensions
727AC High Precision P4/ABEC-7 Angular Contact Ball Bearing with 25° Contact Angle and 7x22x7mm Dimensions
727AC High Precision P4/ABEC-7 Angular Contact Ball Bearing with 25° Contact Angle and 7x22x7mm Dimensions
727AC High Precision P4/ABEC-7 Angular Contact Ball Bearing with 25° Contact Angle and 7x22x7mm Dimensions
727AC High Precision P4/ABEC-7 Angular Contact Ball Bearing with 25° Contact Angle and 7x22x7mm Dimensions
Specifications
Tolerance :
P4 / ABEC-7
Interchangeable With :
SKF, NTN, NSK etc
Part Number :
727AC High Precision Miniature Angular Contact Ball Bearings
Lubrication :
oil
Packing :
As Agreement
Preload :
Light
Brand Name :
OEM
Model Number :
727AC High Precision Miniature Angular Contact Ball Bearings
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us
Supply Ability :
500000pcs per month
Delivery Time :
30 days
Packaging Details :
plastic bag,box,carton,pallet
Contact Angle :
AC/25°
Sealed Type :
Open ,Sealed also available with metal shields (ZZ) or rubber seals (2RS)
Description
727AC Angular Contact Ball Bearings High Precision 7x22x7mm
Product Overview

727AC High Precision Miniature Angular Contact Ball Bearings Single Row 7x22x7mm

Crafted from high-quality materials and manufactured to exacting precision standards, this super-precise angular contact ball bearing is ideal for high-speed spindles, precision tools, and any application where accuracy and speed are critical.

Technical Specifications
Bearing Number Dimensions (mm) Basic Load Rating (N) Limiting Speed (rpm) Weight (Kg)
727 AC 7×22×7 3200 / 1500 28000 / 35000 0.017
Bore Diameter: 7 mm
Outer Diameter: 22 mm
Width: 7 mm
Ring Material: Superior-Grade GCr15
Roller Material: High Precision Steel Ball G5
Cage Material: Bakelite Cage or PEEK High-strength Cage
Contact Angle: 25°, 15°, and 40° options
Lubrication: Oil Lubrication
Temperature Range: -30°C to +110°C
ABEC Rating Precision: P4 (ABEC7) P5, P2 available
Certification: RoHS, IATF16949:2016
727AC High Precision P4/ABEC-7 Angular Contact Ball Bearing with 25° Contact Angle and 7x22x7mm Dimensions 727AC High Precision P4/ABEC-7 Angular Contact Ball Bearing with 25° Contact Angle and 7x22x7mm Dimensions
Applications

The 727 AC Bearing is used in many industries where precision, speed, and reliability are crucial:

  • Machine Tool Spindles: Found in CNC machines and grinders, ensuring tools work accurately and quickly
  • High-Speed Machinery: Great for drills and milling machines that need to spin fast with minimal vibration
  • Aerospace Components: Used in parts like gyroscopes, actuators, and jet engines, handling tough conditions while maintaining precision
  • Medical Equipment: Found in devices like dental drills and imaging machines, where accuracy and reliability are essential
  • Semiconductor Manufacturing: Vital for machinery that needs exact and rapid movements for processing wafers
Performance Characteristics
High-Speed Capabilities

Runs fast and smooth - designed to operate at high speeds without overheating or premature wear. Efficiently handles heat and reduces friction, ideal for continuous high-speed tasks.

Exceptional Precision

Super accurate - manufactured to ultra-tight tolerances (P4 or P4A class). Precise manufacturing minimizes unwanted movement, ensuring smooth and reliable operation.

Enhanced Rigidity and Stability

Strong and steady - offers excellent axial and radial rigidity, remaining stable even under varying loads. Crucial for maintaining precision in demanding applications.

Advanced Material Use

Built tough - constructed from top-grade materials that resist wear and perform reliably at high speeds and temperatures, extending bearing lifespan and ensuring long-term reliability.

Low Friction and Heat Dissipation

Keeps cool under pressure - designed to minimize internal friction and efficiently dissipate heat, extending life and reducing maintenance downtime.

Load Capacity

Handles multiple loads - effectively manages both axial (thrust) and radial loads. Versatile and dependable for various applications requiring combined load handling.

Durability and Longevity

Long-lasting reliability - advanced manufacturing techniques and premium materials ensure long-term performance. Regular maintenance can further extend operational life.

Additional Services
Matched Arrangement: Available
Preload: Available
Universal Matching: Yes (DB, DF, DT)
Service: OEM & ODM Customized Services
Samples: Available upon request
Factory Manufacturer: Yes - welcome to visit our company
