608 ZZ C3 Miniature Deep Groove Ball Bearing Single Row 8*22*7mm for Air Conditioner
608 ZZ C3 Miniature Deep Groove Ball Bearing Single Row 8*22*7mm for Air Conditioner
608 ZZ C3 Miniature Deep Groove Ball Bearing Single Row 8*22*7mm for Air Conditioner
608 ZZ C3 Miniature Deep Groove Ball Bearing Single Row 8*22*7mm for Air Conditioner
608 ZZ C3 Miniature Deep Groove Ball Bearing Single Row 8*22*7mm for Air Conditioner
608 ZZ C3 Miniature Deep Groove Ball Bearing Single Row 8*22*7mm for Air Conditioner
608 ZZ C3 Miniature Deep Groove Ball Bearing Single Row 8*22*7mm for Air Conditioner
608 ZZ C3 Miniature Deep Groove Ball Bearing Single Row 8*22*7mm for Air Conditioner
Specifications
Precision :
P6, P0
Noise :
V3, V4
Delivery Time :
30 days
Type :
Ball Bearing
Vibration :
Z3, Z4
Clearance :
C0,C2,C3,C4,EM
Brand Name :
CNBTZC or OEM
Model Number :
608 ZZ/ 608 2Z
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100000
Price :
Please contact us
Supply Ability :
12 million pcs per month
Packaging Details :
middle box,carton,pallet
Structure :
Deep Groove
Number of Row :
Single Row
Part Number :
608 ZZ C3 Miniature Deep Groove Ball Bearings
Description
608 ZZ C3 Miniature Deep Groove Ball Bearings Single Row 8×22×7mm For Air Conditioner
Product Overview

The 608 ZZ bearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility in various applications, particularly in air conditioning systems.

Bearing Number Dimensions (mm) Basic Load Rating (N) Limiting Speed (rpm) Weight (Kg)
608 ZZ Inner Diameter: 8 Dynamic: 3290 Grease: 34000 0.0129
Outer Diameter: 22, Width: 7 Static: 1360 Oil: /
Technical Specifications
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Nylon/Steel
Lubrication Grease
Measurement Unit Metric
Seal Type ZZ (2RS, 2RZ, open types available)
Temperature Range -30°C to +150°C
Certifications RoHS, IATF16949:2016
Tolerance Class P6, P0
Radial Clearance C3
Air Conditioner Bearing Requirements
  • Operational Speed: Capable of operating at 2,800 to 3,000 RPM
  • Quiet Operation: Exceptionally low noise performance, similar to sealed motors
  • Long Service Life: Supports long-term operation with minimal maintenance

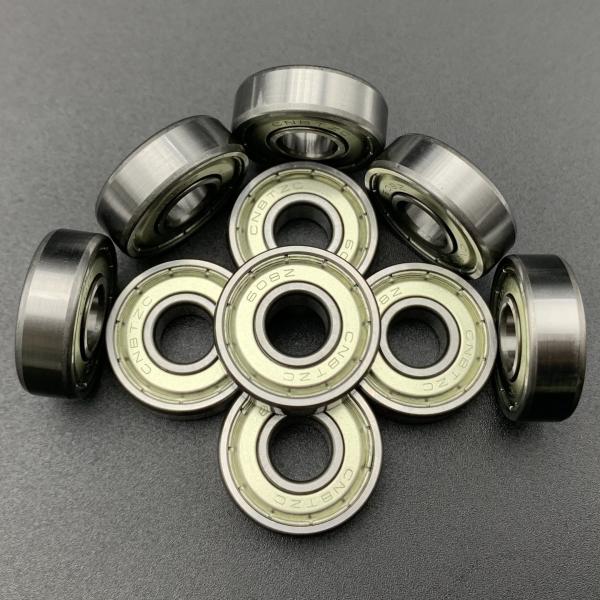

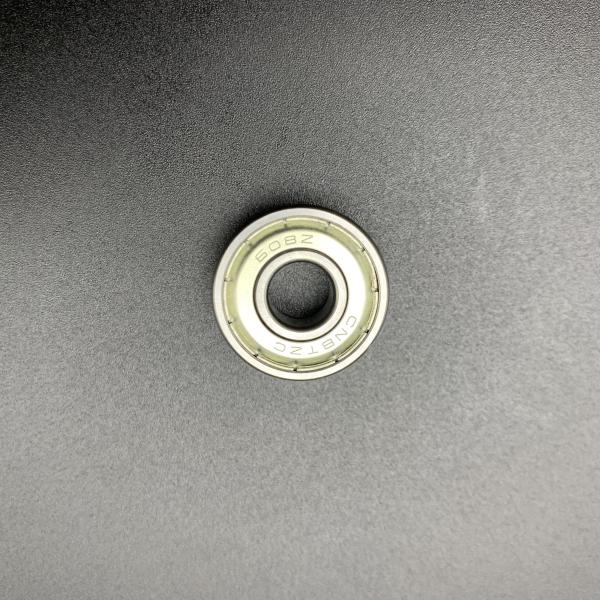

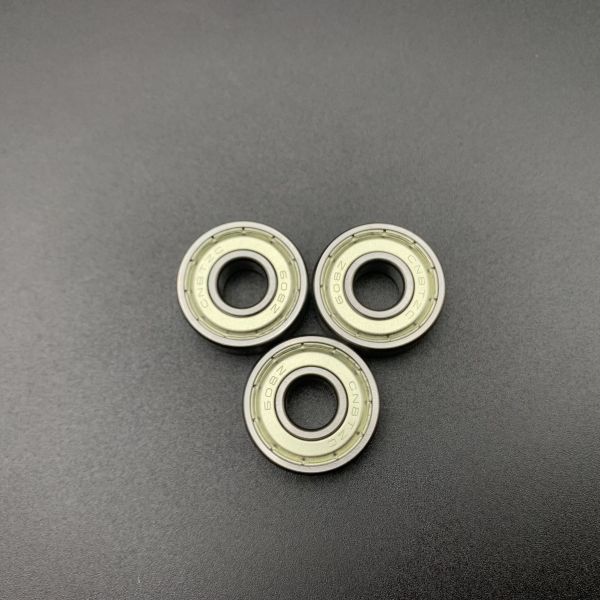

Product Images
608 ZZ C3 Miniature Deep Groove Ball Bearing Single Row 8*22*7mm for Air Conditioner 608 ZZ C3 Miniature Deep Groove Ball Bearing Single Row 8*22*7mm for Air Conditioner 608 ZZ C3 Miniature Deep Groove Ball Bearing Single Row 8*22*7mm for Air Conditioner 608 ZZ C3 Miniature Deep Groove Ball Bearing Single Row 8*22*7mm for Air Conditioner
Performance Features in Air Conditioners

The 608 ZZ bearing in air conditioners offers efficient operation at 2,800-3,000 RPM with quiet and smooth performance. Zinc-plated steel shields protect against dust and moisture, extending lifespan. Compact, lightweight design suits space-constrained applications while providing cost-effective, low-maintenance operation.

Applications

The versatile 608ZZ bearing is widely used across multiple industries:

  • Household Appliances: Small electric motors in fans, vacuum cleaners, washing machines, and dryers
  • Power Tools: Drills, grinders, and other rotating equipment
  • Office Equipment: Paper feed mechanisms in printers, copiers, and scanning movements
  • Automotive: Window lifts and seat adjustment mechanisms
  • Sports & Recreation: Inline skates, skateboards, and bicycles
  • Industrial Automation: Conveyor belts and robotic arms
Additional Information
  • Features: Long Life, Low Noise, High Speed
  • Service: OEM & ODM Customized Services, Online Support, Professional Service
  • Size Options: Standard sizes available, custom sizes upon request
  • Manufacturer: Factory Direct
  • Bearing Type: Ball Bearing, Single Row, Radial Load Direction

For samples or more detailed information, please contact us.
