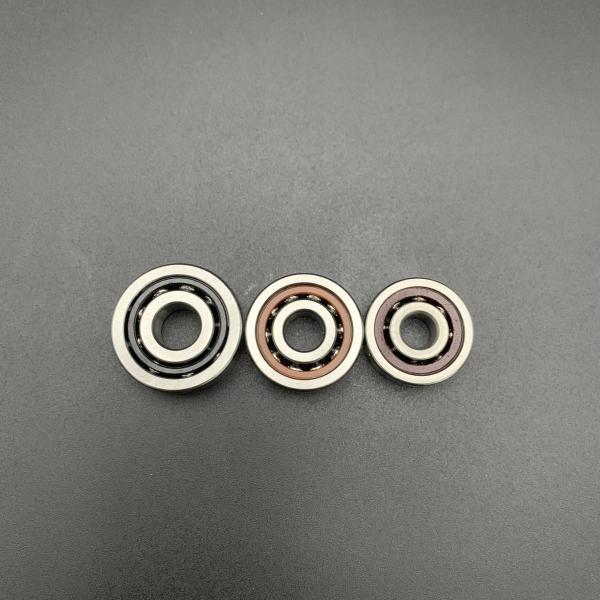

706AC High Precision P4 Miniature Angular Contact Ball Bearing 6x17x6mm with 25° Contact Angle
706AC High Precision P4 Miniature Angular Contact Ball Bearing 6x17x6mm with 25° Contact Angle
706AC High Precision P4 Miniature Angular Contact Ball Bearing 6x17x6mm with 25° Contact Angle
706AC High Precision P4 Miniature Angular Contact Ball Bearing 6x17x6mm with 25° Contact Angle
706AC High Precision P4 Miniature Angular Contact Ball Bearing 6x17x6mm with 25° Contact Angle
706AC High Precision P4 Miniature Angular Contact Ball Bearing 6x17x6mm with 25° Contact Angle
706AC High Precision P4 Miniature Angular Contact Ball Bearing 6x17x6mm with 25° Contact Angle
706AC High Precision P4 Miniature Angular Contact Ball Bearing 6x17x6mm with 25° Contact Angle
Specifications
Contact Angle :
25°/AC，15 ° /C and 40°/B Available
Lubrication :
Oil or Grease as per Agreement
Tolerance :
P4 / ABEC-7,P5,P6 Precision
Interchangeable With :
SKF, NTN, NSK etc
Part Number :
706AC High Precision Miniature Angular Contact Ball Bearings
Preload :
Light or As Per Agreement
Brand Name :
OEM
Model Number :
706AC High Precision Miniature Angular Contact Ball Bearings
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us
Supply Ability :
500000pcs per month
Delivery Time :
30 days
Packaging Details :
plastic bag,box,carton,pallet
Packing :
Plastic Bag,Box,Carton,Pallet
Sealed Type :
Open ,Sealed ZZ or 2RS
Description
706AC High Precision Miniature Single Row Angular Contact Ball Bearings 6x17x6mm
Product Overview

The 706AC High Precision Miniature Angular Contact Ball Bearings are engineered for demanding applications requiring exceptional accuracy and high-speed performance. With dimensions of 6x17x6mm, these bearings deliver reliable operation in precision machinery and industrial equipment.

Technical Specifications
Bearing Number Inner Diameter (d) Outer Diameter (D) Width (B) Chamfer (rsmin) Dynamic Load (Cr) Static Load (Cor) Limiting Speed (Grease) Weight
706 AC 6 mm 17 mm 6 mm 0.3 mm 2300 N 900 N 34000 rpm 0.016 Kg
Construction Details
Ring Material: Superior-Grade GCr15
Roller Material: High Precision Steel Ball G5
Cage Material: Bakelite Cage or PEEK High-strength Cage
Contact Angle: 25°/AC, 15°/C, and 40°/B
Lubrication: Oil or Grease As Agreement
Temperature Range: -30°C to +110°C
Precision Rating: P4 (ABEC7), P5, P2 available
Certifications: RoHS, IATF16949:2016
Product Images
706AC High Precision P4 Miniature Angular Contact Ball Bearing 6x17x6mm with 25° Contact Angle 706AC High Precision P4 Miniature Angular Contact Ball Bearing 6x17x6mm with 25° Contact Angle
Primary Applications
  • Machine Tool Spindles: CNC machines, grinders, and precision machining equipment
  • High-Speed Machinery: Drilling and milling machines requiring rapid rotations
  • Aerospace Components: Gyroscopes, actuators, and jet engines
  • Medical Equipment: Dental drills, CT scanners, and MRI machines
  • Semiconductor Manufacturing: Wafer processing equipment
  • Robotics and Automation: Robotic joints and automation systems
  • Precision Instruments: Measuring instruments and optical devices
  • Other High-End Manufacturing: Printing equipment and textile machinery
Performance Characteristics
  • High-Speed Capabilities: Engineered for fast, efficient operation with minimal heat buildup
  • Exceptional Precision: Ultra-tight tolerances (P4 class) for accurate operation
  • Enhanced Rigidity: Superior axial and radial stability under fluctuating loads
  • Advanced Materials: Premium construction for wear resistance and reliability
  • Low Friction: Optimized cooling and heat dissipation design
  • Versatile Load Capacity: Effective handling of both axial and radial loads
  • Durability: Extended operational life with proper maintenance
Additional Services

We offer comprehensive OEM & ODM customized services, sample availability, online technical support, and factory visits. Custom sizes available upon request.
