71900 CE/HCP4A Super-Precision High-Speed E Design Angular Contact Ball Bearing with Hybrid Ceramic Balls and P4A Precision Grade
71900 CE/HCP4A Super-Precision High-Speed E Design Angular Contact Ball Bearing with Hybrid Ceramic Balls and P4A Precision Grade
Specifications
Structure :
Angular Contact
Part Number :
71900 CE/HCP4A Angular Contact Ball Bearing
Lubrication :
Grease,Oil
Design :
High-speed E
Coating :
Without
Sealing :
Without
Delivery Time :
2-3 weeks
Brand Name :
CNBTZC or OEM
Model Number :
71900 CE/HCP4A
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Replaceable With :
SKF, NSK
Seals Type :
Open (2RZ available)
Ring type :
One-piece inner and outer rings
Contact type :
Normal contact (two-point contact)
Description

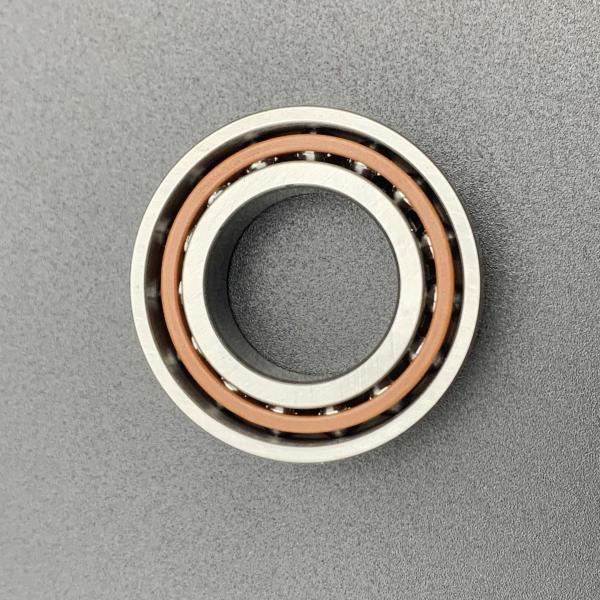

71900 CE/HCP4A Hybrid Super-Precision High-Speed E Design Single Row Angular Contact Ball Bearing 7900
71900 CE/HCP4A 10×22×6 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed Hybrid E Design Single Row
The 71900 CE/HCP4A bearing features a bore diameter of 10 mm, outside diameter of 22 mm, and width of 6 mm. With precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, it delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
Technical Specifications
Part Number 71900 CE/HCP4A
Bearing Type Angular Contact
Measurement Unit Metric
Dimensions Inner Bore Diameter (d): 10 mm
Inner Bore Diameter Tolerance: -0.004mm to 0
Outer Bore Diameter (D): 22 mm
Outer Bore Diameter Tolerance: -0.005mm to 0
Width (B): 6 mm
Width Tolerance: -0.2mm to 0
Specifications Contact Angle: 15° (25°, 40° Available)
Material: Hybrid (Chrome Steel Rings, Ceramic Balls)
Cage Material: Phenolic
Number of Rows: 1 Single Row
Seal Type: Open
Temperature Range: -30°C to 150°C
Lubrication: Grease or Oil
Tolerance Class: P4 A better than P4 (ABEC-9)
Weight: 0.009 kg
Matched Arrangement: No
Universal Matching Bearing: No
Preload: Not applicable
Load and Speed Dynamic Radial Load: 2030 N
Static Radial Load: 780 N
Reference Speed For Grease: 123,000 rpm
Limiting Speed For Oil: 185,000 rpm
71900 CE/HCP4A Super-Precision High-Speed E Design Angular Contact Ball Bearing with Hybrid Ceramic Balls and P4A Precision Grade 71900 CE/HCP4A Super-Precision High-Speed E Design Angular Contact Ball Bearing with Hybrid Ceramic Balls and P4A Precision Grade
Performance Features
  • Engineered for high-precision and high-performance applications
  • Very tight tolerances suitable for precise machinery
  • Ability to handle both radial and axial loads simultaneously
  • High-speed operation with stability
  • Low torque and friction for energy efficiency
  • Enhanced rigidity for accuracy under heavy loads
  • Durability with extended service life
  • Effective performance across a wide temperature range
Applications
  • Machine tools
  • Photovoltaic equipment
  • Mold manufacturing
  • Metal cutting
  • Automotive components
  • 3C products (computers, communications, consumer electronics)
This precision angular contact ball bearing is widely utilized across various industries. Its ability to handle high speeds, heavy loads, and ensure stable operation makes it an essential component in applications ranging from precision machinery to electronic devices, supporting reliable performance and enhancing production efficiency.
Certification & Services
CERTIFICATE RoHS & REACH, IATF16949:2016
Feature High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service OEM & ODM Customized Services
Samples Please Contact Us
Service Online Support, Professional Service
Size Standard, For custom sizes please contact us
Factory Manufacturer Yes
Custom Solutions Available: Contact us for OEM & ODM services, custom sizes, and professional technical support.
