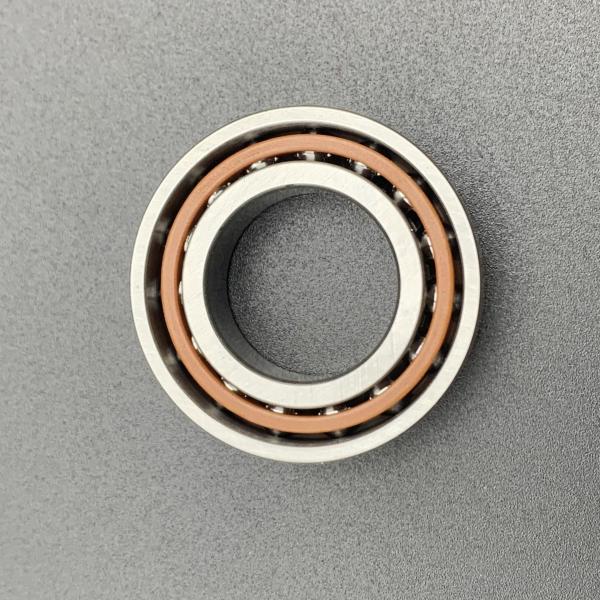

71800 ACD/HCP4 Precision Angular Contact Ball Bearing with P4 Precision Grade and Hybrid Ceramic Balls for High Speed 130,000 rpm Applications
71800 ACD/HCP4 Precision Angular Contact Ball Bearing with P4 Precision Grade and Hybrid Ceramic Balls for High Speed 130,000 rpm Applications
Specifications
Part Number :
71800 ACD/HCP4 Angular Contact Ball Bearing
Structure :
Angular Contact
Seals Type :
Open (2RZ available)
Coating :
Without
Delivery Time :
2-3 weeks
Lubrication :
Grease,Oil
Replaceable With :
SKF, NSK 7800A5SN24TRP4
Brand Name :
CNBTZC or OEM
Model Number :
71800 ACD/HCP4
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Ring type :
One-piece inner and outer rings
Sealing :
Without
Design :
High-capacity D
Contact type :
Normal contact (two-point contact)
Description
71800 ACD/HCP4 Precision Hybrid Ceramic Balls Single Row Angular Contact Ball Bearing 7800

71800 ACD/HCP4 - 10×19×5 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing with Ceramic Balls for High Speed Applications

The 71800 ACD/HCP4 bearing features precise dimensions, high static load capacity, P4 precision grade, and hybrid ceramic balls, delivering superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications
Part Number 71800 ACD/HCP4
Bearing Type Angular Contact
Measurement Unit Metric
Dimensions Inner Bore Diameter (d): 10 mm
Inner Bore Diameter Tolerance: -0.004mm to 0
Outer Bore Diameter (D): 19 mm
Outer Bore Diameter Tolerance: -0.005mm to 0
Width (B): 5 mm
Width Tolerance: -0.2mm to 0
Specifications Contact Angle: 25° (15°, 40° Available)
Material: Hybrid (Chrome Steel Rings, Ceramic Balls)
Cage Material: Phenolic
Number of Rows: 1 Single Row
Seal Type: Open
Temperature Range: -30°C to 150°C
Lubrication: Grease or Oil
Tolerance Class: P4 (ABEC-7)
Weight: 0.005 kg
Matched Arrangement: No
Universal Matching Bearing: No
Preload: Not applicable
Load and Speed Dynamic Radial Load: 1780 N
Static Radial Load: 930 N
Reference Speed For Grease: 85,000 rpm
Limiting Speed For Oil: 130,000 rpm
71800 ACD/HCP4 Precision Angular Contact Ball Bearing with P4 Precision Grade and Hybrid Ceramic Balls for High Speed 130,000 rpm Applications 71800 ACD/HCP4 Precision Angular Contact Ball Bearing with P4 Precision Grade and Hybrid Ceramic Balls for High Speed 130,000 rpm Applications
Performance Features
  • Engineered for high-precision and high-performance applications
  • Very tight tolerances suitable for precise machinery
  • Ability to handle both radial and axial loads simultaneously
  • High-speed operation with stability
  • Low torque and friction for energy efficiency
  • Enhanced rigidity for accuracy under heavy loads
  • Durability with extended service life
  • Effective performance across a wide temperature range
Applications

The 71800 ACD/HCP4 bearing, a precision angular contact ball bearing, is renowned for its high rigidity and load-carrying capacity, making it essential in various industries:

  • Automotive components: front wheels, engines, and differentials
  • Railway vehicle axles, steering systems, and earthmoving machinery
  • Industrial equipment: extruders, sandblasters, waste disposal machines
  • Glass edge grinders, homogenizing devices, and metalworking rollers
  • Manufacturing of high-quality toy parts

This versatile bearing supports efficient and stable operation across automotive, railway, manufacturing, and environmental engineering sectors.

Certifications & Services
CERTIFICATE RoHS & REACH, IATF16949:2016
Feature High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service OEM&ODM Customized Services
Samples Please Contact Us
Service Online Support, Professional Service
Size Standard, For custom sizes, please contact us
Factory Manufacturer Yes
