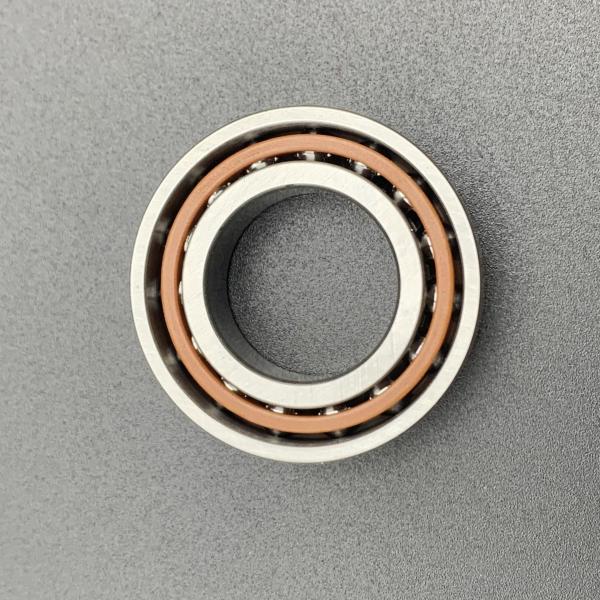

71800 ACD/P4 High Speed P4 Precision Grade Angular Contact Ball Bearing with 10 mm Bore Diameter
71800 ACD/P4 High Speed P4 Precision Grade Angular Contact Ball Bearing with 10 mm Bore Diameter
Specifications
Structure :
Angular Contact
Brand Name :
CNBTZC or OEM
Model Number :
71800 ACD/P4
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Part Number :
71800 ACD/P4 Angular Contact Ball Bearing
Lubrication :
Grease,Oil
Design :
High-capacity D
Coating :
Without
Sealing :
Without
Delivery Time :
2-3 weeks
Replaceable With :
SKF, NSK 7800A5TRP4
Seals Type :
Open (2RZ available)
Ring type :
One-piece inner and outer rings
Contact type :
Normal contact (two-point contact)
Description
71800 ACD/P4 High Precision Speed BRG Single Row Angular Contact Ball Bearing
71800 ACD/P4 - 10×19×5 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing - High Speed
The 71800 ACD/P4 bearing features a bore diameter of 10 mm, outside diameter of 19 mm, and width of 5 mm. With precise dimensions, high static load capacity, and P4 precision grade, it delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
Part Number 71800 ACD/P4
Bearing Type Angular Contact
Measurement Unit Metric
Dimensions
Inner Bore Diameter (d) 10 mm
Inner Bore Diameter Tolerance -0.004mm to 0
Outer Bore Diameter (D) 19 mm
Outer Bore Diameter Tolerance -0.005mm to 0
Width (B) 5 mm
Width Tolerance -0.2mm to 0
Specifications
Contact Angle 25° (15°, 40° Available)
Material Chrome Steel
Cage Material Phenolic
Number of Rows 1 Single Row
Seal Type Open
Temperature Range -30°C to 150°C
Lubrication Grease or Oil
Tolerance Class P4 (ABEC-7)
Weight 0.005 kg
Matched Arrangement No
Universal Matching Bearing No
Preload Not applicable
Load and Speed
Dynamic Radial Load 1780 N
Static Radial Load 930 N
Reference Speed For Grease (r/min) 70,000 rpm
Limiting Speed For Oil (r/min) 110,000 rpm
71800 ACD/P4 High Speed P4 Precision Grade Angular Contact Ball Bearing with 10 mm Bore Diameter 71800 ACD/P4 High Speed P4 Precision Grade Angular Contact Ball Bearing with 10 mm Bore Diameter
Performance Features of 71800 ACD/P4 Bearing
  • Engineered for high-precision and high-performance applications
  • Very tight tolerances suitable for precise machinery
  • Ability to handle both radial and axial loads simultaneously
  • High-speed operation with stability
  • Low torque and friction for energy efficiency
  • Enhanced rigidity for accuracy under heavy loads
  • Durability with extended service life
  • Effective performance across a wide temperature range
Applications of the 71800 ACD/P4 Bearing
The 71800 ACD/P4 bearing, renowned for its high rigidity and precision, is widely applied in various industries to ensure stable and high-performance operation. It provides essential support in:
  • Construction machinery
  • Differential pinion shafts and transmissions
  • Rolling mill gearbox housings
  • Machine tool spindles
  • Forming machines
  • Timepieces and precision instruments
  • Heavy machinery like excavators
Overall, this bearing is critical for achieving stability, efficiency, and accuracy across diverse industrial applications.
CERTIFICATE RoHS & REACH, IATF16949:2016
Feature High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service OEM & ODM Customized Services
Samples Please Contact Us
Service Online Support, Professional Service
Size Standard, For custom sizes, please contact us
Factory Manufacturer Yes
Manufacturing & Support: Factory direct manufacturer offering OEM & ODM customized services, professional online support, and sample availability upon request.
