71900 ACD/HCP4ADFA Super Precision Angular Contact Ball Bearing with 10 mm Bore Diameter P4A Precision Grade and Hybrid Ceramic Balls
71900 ACD/HCP4ADFA Super Precision Angular Contact Ball Bearing with 10 mm Bore Diameter P4A Precision Grade and Hybrid Ceramic Balls
Specifications
Contact type :
Normal contact (two-point contact)
Replaceable With :
SKF, NSK
Sealing :
Without
Design :
High-capacity D
Coating :
Without
Brand Name :
CNBTZC or OEM
Model Number :
71900 ACD/HCP4DFA
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
100000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Delivery Time :
2-3 weeks
Part Number :
71900 ACD/HCP4ADFA Angular Contact Ball Bearing
Seals Type :
Open (2RZ available)
Ring type :
One-piece inner and outer rings
Lubrication :
Grease,Oil
Structure :
Angular Contact
Description
71900 ACD/HCP4ADFA Hybrid Matched Set Of Two Super-Precision Single Row Angular Contact Ball Bearings
Product Overview

71900 ACD/HCP4ADFA 10×22×12 mm Super Precision High Capacity Two Single Row Angular Contact Ball Bearing with Ceramic Balls for High Speed Applications

The 71900 ACD/HCP4ADFA bearing features a bore diameter of 10 mm, outside diameter of 22 mm, and width of 12 mm. With precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, it delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications
Part Number 71900 ACD/HCP4ADFA
Bearing Type Angular Contact
Measurement Unit Metric
Inner Bore Diameter (d) 10 mm
Inner Bore Diameter Tolerance -0.004mm to 0
Outer Bore Diameter (D) 22 mm
Outer Bore Diameter Tolerance -0.004mm to 0
Width (B) 12 mm (2×6 mm)
Width Tolerance -0.2mm to 0
Contact Angle 25° (15°, 40° Available)
Material Hybrid (Chrome Steel Rings, Ceramic Balls)
Cage Material Phenolic
Number of Rows 2 (2×Single Row)
Seal Type Open
Temperature Range -30°C to 150°C
Lubrication Grease or Oil
Tolerance Class P4A better than P4
Weight 0.018 kg
Matched Arrangement DF Face-to-face >< 2 bearings
Universal Matching Bearing No
Preload EL/Extra Light/Class A
Dynamic Radial Load 3900 N
Static Radial Load 2120 N
Reference Speed For Grease (r/min) 85,000 rpm
Limiting Speed For Oil (r/min) 130,000 rpm

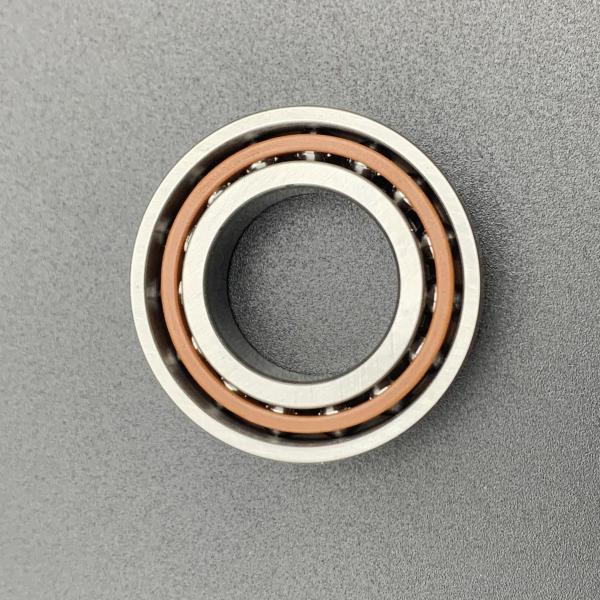

71900 ACD/HCP4ADFA Super Precision Angular Contact Ball Bearing with 10 mm Bore Diameter P4A Precision Grade and Hybrid Ceramic Balls 71900 ACD/HCP4ADFA Super Precision Angular Contact Ball Bearing with 10 mm Bore Diameter P4A Precision Grade and Hybrid Ceramic Balls
Performance Features
  • Engineered for high-precision and high-performance applications
  • Very tight tolerances suitable for precise machinery
  • Ability to handle both radial and axial loads simultaneously
  • High-speed operation with exceptional stability
  • Low torque and friction for energy efficiency
  • Enhanced rigidity for accuracy under heavy loads
  • Durability with extended service life
  • Effective performance across a wide temperature range
Applications

The 71900 ACD/HCP4ADFA precision angular contact ball bearing is widely utilized across multiple industries for its high precision and reliability:

  • Industrial Equipment: Drum scrapers, dryers, cross-cut machines, nonwoven fabric machinery, spinning machines, stud welding machines, drilling machines, and pharmaceutical manufacturing equipment
  • Construction: Bridge cranes for heavy lifting operations
  • Medical Devices: Rehabilitation, therapy, and treatment equipment requiring smooth operation
  • Aerospace: Precision equipment meeting stringent requirements
  • Consumer Appliances: Air conditioning pumps, cafe equipment, and mold ventilators
Certifications & Services
CERTIFICATE RoHS & REACH, IATF16949:2016
Feature High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service OEM & ODM Customized Services
Samples Please Contact Us
Service Online Support, Professional Service
Size Standard, For custom sizes please contact us
Factory Manufacturer Yes
