71800 CD/P4DGAVT105F2 Matched Set Of Two Super-Precision Single Row Angular Contact Ball Bearing with P4 Precision Grade and High Speed 140,000 rpm
71800 CD/P4DGAVT105F2 Matched Set Of Two Super-Precision Single Row Angular Contact Ball Bearing with P4 Precision Grade and High Speed 140,000 rpm
Specifications
Brand Name :
CNBTZC or OEM
Model Number :
71800 CD/P4DGAVT105F2
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Structure :
Angular Contact
Coating :
Without
Design :
High-capacity D
Seals Type :
Open (2RZ available)
Replaceable With :
SKF
Part Number :
71800 CD/P4DGAVT105F2 Angular Contact Ball Bearing
Lubrication :
Grease,Oil
Contact type :
Normal contact (two-point contact)
Ring type :
One-piece inner and outer rings
Sealing :
Without
Delivery Time :
2-3 weeks
Description
71800 CD/P4DGAVT105F2 Matched Set Of Two Super-Precision Single Row Angular Contact Ball Bearings 7800
Product Overview

71800 CD/P4DGAVT105F2 - 10×19×10 mm Matched Set Of Two Super-Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

The 71800 CD/P4DGAVT105F2 bearing features a bore diameter of 10 mm, outside diameter of 19 mm, and width of 10 mm. With precise dimensions, high static load capacity, and P4 precision grade, it delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications
Part Number71800 CD/P4DGAVT105F2
Bearing TypeAngular Contact
Measurement UnitMetric
Inner Bore Diameter (d)10 mm
Inner Bore Diameter Tolerance-0.004mm to 0
Outer Bore Diameter (D)19 mm
Outer Bore Diameter Tolerance-0.004mm to 0
Width (B)10 mm (2×5mm)
Width Tolerance-0.2mm to 0
Contact Angle15° (25°,40° Available)
MaterialChrome Steel
Cage MaterialPhenolic
Number of Rows2 (2× Single Row)
Seal TypeOpen
Temperature Range-30°C to 150°C
LubricationGrease or Oil
Tolerance ClassN
Weight0.010 kg
Matched ArrangementUniversal Matching 2 bearings
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings
PreloadEL/Extra Light/Class A
Dynamic Radial Load3070 N
Static Radial Load1960 N
Reference Speed For Grease (r/min)80,000 rpm
Limiting Speed For Oil (r/min)140,000 rpm

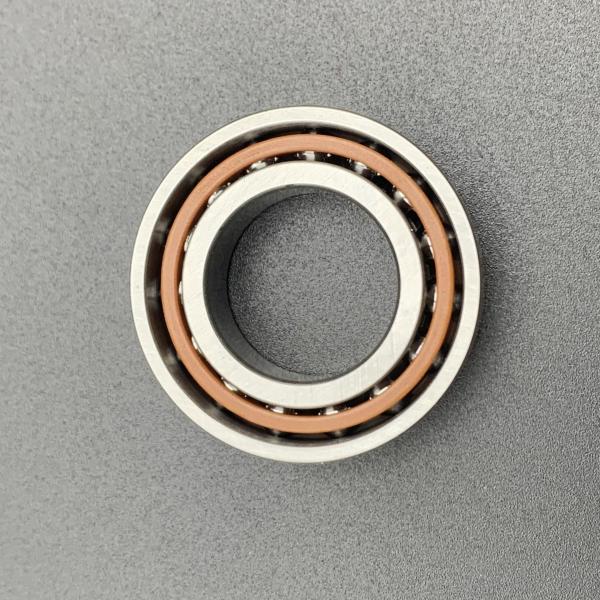

Product Images
71800 CD/P4DGAVT105F2 Matched Set Of Two Super-Precision Single Row Angular Contact Ball Bearing with P4 Precision Grade and High Speed 140,000 rpm 71800 CD/P4DGAVT105F2 Matched Set Of Two Super-Precision Single Row Angular Contact Ball Bearing with P4 Precision Grade and High Speed 140,000 rpm
Performance Features
  • Engineered for high-precision and high-performance applications
  • Very tight tolerances suitable for precise machinery
  • Ability to handle both radial and axial loads simultaneously
  • High-speed operation with stability
  • Low torque and friction for energy efficiency
  • Enhanced rigidity for accuracy under heavy loads
  • Durability with extended service life
  • Effective performance across a wide temperature range
Applications

The 71800 CD/P4DGAVT105F2 super precision angular contact ball bearing is pivotal in enhancing the performance and reliability of specialized machinery across diverse industries:

  • Materials handling equipment
  • Roots blowers for efficient airflow
  • Excavator track wheels for critical support and stability
  • Construction machinery and crushers
  • Iron and steel manufacturing
  • Mining operations
  • Audio and video equipment for precise operation
  • Stacker-reclaimers for efficient material handling
Certifications & Services
Certificates:
RoHS & REACH, IATF16949:2016
Features:
High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Services:
OEM&ODM Customized Services, Online Support, Professional Service
Sizes:
Standard, Custom sizes available
Factory Manufacturer:
Yes
Samples:
Please Contact Us
