6201 2RS C0 Deep Groove Ball Bearing Single Row 12*32*10mm for Worm Gear Reducers
6201 2RS C0 Deep Groove Ball Bearing Single Row 12*32*10mm for Worm Gear Reducers
Specifications
Type :
Ball Bearing
Brand Name :
CNBTZC or OEM
Model Number :
6201 2RS
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100000
Price :
Please contact us
Supply Ability :
1 million pcs per month
Packaging Details :
plastic tub,carton,pallet
Part Number :
6201 2RS C0 Deep Groove Ball Bearings
Vibration :
Z2,Z3, Z4
Precision :
P6, P5
Clearance :
C0,C2,C3,C4,EM
Noise :
V2,V3, V4
Structure :
Deep Groove
Number of Row :
Single Row
Description
6201 2RS C0 Deep Groove Ball Bearings Single Row 12×32×10mm OEM ODM Customized

The 6201 2RS bearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility. This bearing is specifically designed for worm gear reducers and offers excellent performance in various industrial applications.

Technical Specifications
Bearing Number Dimensions (mm) Basic Load Rating (N) Limiting Speed (rpm) Weight (Kg)
6201 2RS 12×32×10 Cr: 6800 / Cor: 3050 17000 (Grease) 0.036
Construction Details
Ring MaterialChrome Steel
Roller MaterialChrome Steel
CageNylon/Steel
LubricationGrease
Measurement UnitMetric
Seal TypeZZ (2RS, 2RZ, open types available)
Temperature Range-30°C to +150°C
CertificationsRoHS, IATF16949:2016
FeaturesLong Life, Low Noise, High Speed
Bearing TypeBall
Load DirectionRadial
ConstructionSingle Row
Tolerance ClassP6, P5
Radial ClearanceC0
Service & Support
  • OEM & ODM Customized Services
  • Online Support & Professional Service
  • Standard Sizes Available
  • Custom Sizes Upon Request
  • Factory Manufacturer
  • Samples Available - Please Contact Us

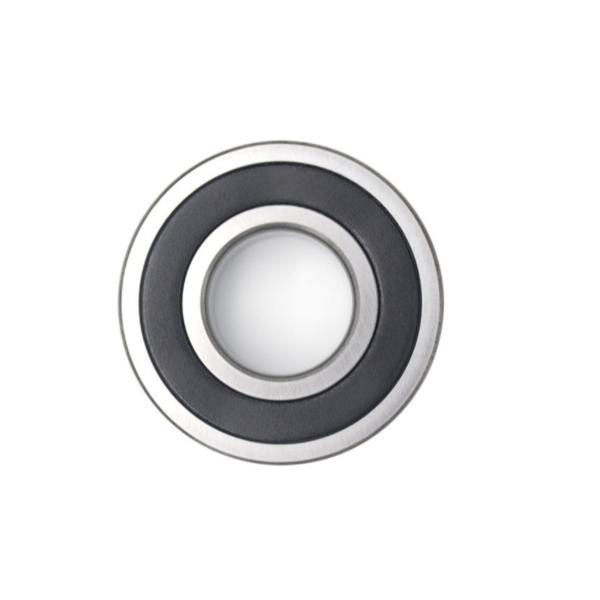

Product Images
6201 2RS C0 Deep Groove Ball Bearing Single Row 12*32*10mm for Worm Gear Reducers 6201 2RS C0 Deep Groove Ball Bearing Single Row 12*32*10mm for Worm Gear Reducers 6201 2RS C0 Deep Groove Ball Bearing Single Row 12*32*10mm for Worm Gear Reducers 6201 2RS C0 Deep Groove Ball Bearing Single Row 12*32*10mm for Worm Gear Reducers
Worm Gear Reducer Requirements

Worm gear reducers typically require 4 sets of bearings with the following specifications:

  • Low Speed Operation Capability
  • Specified Load Capacity
  • Long Service Life Performance
Performance Features in Worm Gear Reducers

The 6201 2RS bearing provides reliable performance in worm gear reducers, designed to operate effectively at low speeds while supporting specified loads. Its double rubber seals ensure effective protection against contaminants and retain lubricant, contributing to long-lasting performance and minimal maintenance. Built for durability, it offers a long service life, making it well-suited for the demanding conditions of worm gear reducer applications.

Applications

The 6201 2RS bearing is widely utilized in various applications including:

  • Rotational components of electric motors and gear reducers
  • Machine tools such as spindles and feed axes
  • Instruments and meters including tachometers and oscilloscopes
  • Home appliances including washing machines, air conditioners, and electric fans
  • Transportation vehicles such as cars, motorcycles, and aircraft

This bearing is an indispensable component across electric motors, machine tools, instruments, home appliances, and transportation sectors, providing essential rotational support.
