706 ACE/P4A Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade High Speed and High Load Capacity
706 ACE/P4A Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade High Speed and High Load Capacity
Specifications
Payment Terms :
L/C,T/T
Delivery Time :
30 days
Coating :
Without
Feature :
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Brand Name :
CNBTZC or OEM
Model Number :
706 ACE/P4A
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Supply Ability :
500000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Service :
OEM & ODM Customized Services
Seals Type :
Open (2RZ available)
Structure :
Angular Contact
Replaceable With :
SKF
Part Number :
706 ACE/P4A Angular Contact Ball Bearing
Lubrication :
Grease,Oil
Description
706 ACE/P4A Precision Single Row Angular Contact Ball Bearing Machine Tool Spindles

706 ACE/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing machine tool spindles

The 706 ACE/P4A bearing, featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications
Part Number 706 ACE/P4A
Bearing Type Angular Contact
Measurement Unit Metric
Dimensions
Inner Bore Diameter (d) 6 mm
Inner Bore Diameter Tolerance -0.004mm to 0
Outer Bore Diameter (D) 17 mm
Outer Bore Diameter Tolerance -0.004mm to 0
Width (B) 6 mm
Width Tolerance -0.2mm to 0
Specifications
Contact Angle 25° (15°,40° Available)
Material Chrome Steel
Cage Material Phenolic
Number of Rows Single Row
Seal Type Open
Temperature Range -30°C to 150°C
Lubrication Grease or Oil
Tolerance Class P4A (better than P4)
Weight 0.006 kg
Matched Arrangement No (DB,DF,DT,DG)
Preload Not Applicable (EL,L,M,H,CP,CA)
Load and Speed
Dynamic Radial Load 1510 N
Static Radial Load 490 N
Reference Speed (r/min) 127,000 rpm
Limit Speed (r/min) 195,000 rpm

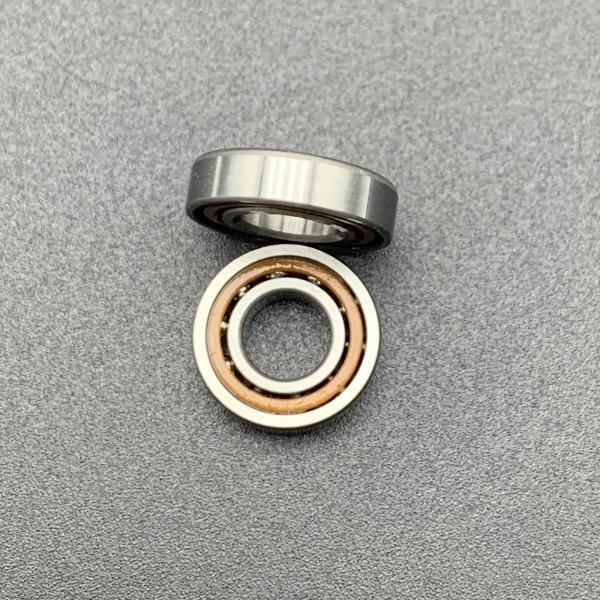

706 ACE/P4A Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade High Speed and High Load Capacity 706 ACE/P4A Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade High Speed and High Load Capacity
Performance Features of 706 ACE/P4A Bearing
  • Super Precision
  • High Speed Capability
  • High Rigidity
  • Long Service Life
  • Low Friction
  • Easy Installation and Maintenance
Applications of the 706 ACE/P4A Bearing
  • Machinery Equipment
  • Automotive Industry
  • Industrial Automation
  • Aerospace
  • Medical Devices
  • Electronics
Certificate RoHS & REACH, IATF16949:2016
Feature High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service OEM&ODM Customized Services
Samples Please Contact Us
Service Online Support, Professional Service
Size Standard, For custom sizes, please contact us
Factory Manufacturer Yes
