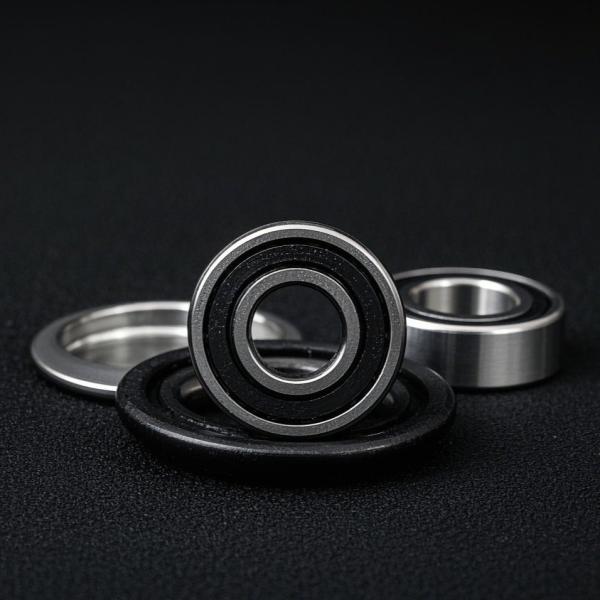

6201 2RS Deep Groove Ball Bearing 12x32x10mm with C3 Clearance and Double Rubber Seals for Electric Motors
6201 2RS Deep Groove Ball Bearing 12x32x10mm with C3 Clearance and Double Rubber Seals for Electric Motors
Specifications
Type :
Ball Bearing
Brand Name :
CNBTZC or OEM
Model Number :
6201 2RS
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100000
Price :
Please contact us
Supply Ability :
10 million pcs per month
Packaging Details :
plastic tub,carton,pallet
Part Number :
6201 2RS C3 Deep Groove Ball Bearings
Vibration :
Z3, Z4
Precision :
P6, P0
Clearance :
C0,C2,C3,C4,EM
Delivery Time :
30 days
Noise :
V3, V4
Structure :
Deep Groove
Number of Row :
Single Row
Description
Electric Motor Ball Bearing 6201 2RS Demolition Hammers Power Tool Bearings
6201 2RS C3 Deep Groove Ball Bearings Single Row 12×32×10mm Power Tool Demolition Hammers Electric Motor Ball Bearings
The 6201 2RS bearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility.
Bearing Number Dimensions (mm) Basic Load Rating (N) Limiting Speed (rpm) Weight (Kg)
Inner Diameter Outer Diameter Width Chamfer Dynamic Static Grease Oil Reference
6201 2RS 12 32 10 0.6 6800 3050 17000 / 0.036
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Nylon/Steel
Lubrication Grease
Measurement Unit Metric
Seal Type ZZ (2RS, 2RZ, open types are available)
Temperature Range -30°C ~ +150°C
CERTIFICATE RoHS, IATF16949:2016
Feature Long Life, Low Noise, High Speed
Service OEM & ODM Customized Services
Samples Please Contact Us
Service Online Support, Professional Service
Size Standard, For custom sizes, please contact us
Factory Manufacturer Yes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Tolerance Class P6, P0
Radial Clearance C3
Requirements for Bearings in Demolition Hammers (Jackhammers)
A demolition hammer (also known as an impact drill or rock drill) is used for drilling or chiseling into hard materials like concrete and masonry. Given the harsh working conditions and high performance demands, bearings in demolition hammers have specific requirements to ensure reliability and durability.
Demolition Hammers typically require 4 sets of bearings, with the following specifications:
  • High-Speed Operation: The bearings must be capable of operating at high speeds, generally exceeding 5000 RPM.
  • Oil Retention: They should ensure no oil leakage during high-speed operation.
  • Dust Protection: Provide excellent protection against dust, preventing external particles from entering the bearing interior.
  • Shock Load Resistance: Able to withstand significant impact loads.
6201 2RS Deep Groove Ball Bearing 12x32x10mm with C3 Clearance and Double Rubber Seals for Electric Motors 6201 2RS Deep Groove Ball Bearing 12x32x10mm with C3 Clearance and Double Rubber Seals for Electric Motors 6201 2RS Deep Groove Ball Bearing 12x32x10mm with C3 Clearance and Double Rubber Seals for Electric Motors 6201 2RS Deep Groove Ball Bearing 12x32x10mm with C3 Clearance and Double Rubber Seals for Electric Motors
Performance Features of 6201 2RS Bearings in Demolition Hammers
The 6201 2RS bearing offers robust performance in demolition hammers, designed to handle high-speed operation exceeding 5000 RPM while ensuring no oil leakage due to its double rubber seals. These seals also provide excellent dust protection, effectively preventing external particles from entering the bearing interior. Built to withstand significant shock loads, the bearing ensures reliable and durable operation even under the harsh conditions typical of demolition work. Its combination of high-speed capability, oil retention, dust protection, and shock load resistance makes it well-suited for the demanding applications of demolition hammers.
Applications of the 6201 2RS Bearing
The 6201 2RS bearing is widely utilized in a variety of applications, including:
  • Electric Motors and Gear Reducers: Enhancing reliability and performance in rotational components
  • Machine Tools: Supporting precision and stability in spindles and feed axes
  • Instruments and Meters: Ensuring smooth operation in tachometers and oscilloscopes
  • Home Appliances: Providing efficient, quiet support in washing machines, air conditioners, and electric fans
  • Transportation Vehicles: Ensuring durable and reliable performance in cars, motorcycles, and aircraft rotating parts
In essence, the 6201-2RS bearing is an indispensable component across electric motors, machine tools, instruments, home appliances, and transportation sectors, providing essential rotational support.
If you need more detailed information or have any other related questions, feel free to ask!
