Precision 6201 2RZ Deep Groove Ball Bearing 12x32x10mm Low Noise High-Speed Capability for Bathtub Pumps
Precision 6201 2RZ Deep Groove Ball Bearing 12x32x10mm Low Noise High-Speed Capability for Bathtub Pumps
Specifications
Type :
Ball Bearing
Part Number :
6201 2RZ C0 Deep Groove Ball Bearings
Delivery Time :
30 days
Noise :
V3, V4
Structure :
Deep Groove
Brand Name :
CNBTZC or OEM
Model Number :
6201 2RZ
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100000
Price :
Please contact us
Supply Ability :
1 million pcs per month
Packaging Details :
plastic tub,carton,pallet
Number of Row :
Single Row
Vibration :
Z3, Z4
Precision :
P6, P0
Clearance :
C0,C2,C3,C4,EM
Description

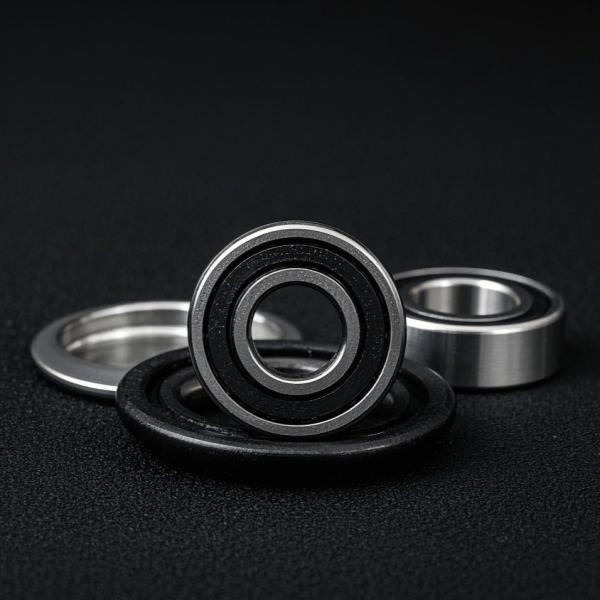

Precision 6201 2RZ Single Row Radial Ball Bearing 12X32X10 For Bathtub Pumps
Product Overview

The 6201 2RZ bearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility. This bearing features double rubber seals for effective protection against contaminants and reliable lubricant retention.

Technical Specifications
Bearing Number Inner Diameter (d) Outer Diameter (D) Width (B) Chamfer (r min) Dynamic Load (Cr) Static Load (Cor) Weight
6201 2RZ 12mm 32mm 10mm 0.6mm 6800N 3050N 0.036kg
Construction Details
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Steel
Lubrication Grease
Measurement Unit Metric
Seal Type ZZ (2RS, 2RZ, open types available)
Temperature Range -30°C to +150°C
Certifications RoHS, IATF16949:2016
Key Features
  • Long Service Life
  • Low Noise Operation
  • High Speed Capability
  • OEM & ODM Customized Services Available
  • Professional Online Support
Bathtub Pump Requirements

Bathtub pumps typically require bearings that meet the following specifications:

  • Low Noise: Ensure quiet operation to maintain a relaxing environment
  • High-Speed Capability: Operate at speeds up to 3000 RPM or higher, depending on pump design
  • Temperature Range: Function reliably within -20°C to +120°C operating range
Precision 6201 2RZ Deep Groove Ball Bearing 12x32x10mm Low Noise High-Speed Capability for Bathtub Pumps Precision 6201 2RZ Deep Groove Ball Bearing 12x32x10mm Low Noise High-Speed Capability for Bathtub Pumps Precision 6201 2RZ Deep Groove Ball Bearing 12x32x10mm Low Noise High-Speed Capability for Bathtub Pumps Precision 6201 2RZ Deep Groove Ball Bearing 12x32x10mm Low Noise High-Speed Capability for Bathtub Pumps
Performance Features in Bathtub Pumps

The 6201 2RZ bearing offers reliable performance in bathtub pumps, ensuring quiet operation to maintain a relaxing environment. It supports high-speed capability, operating efficiently at speeds up to 3000 RPM or higher as required by the pump design. The bearing functions reliably within an extensive temperature range of -20°C to +120°C, adapting well to varying thermal conditions. Its double rubber seals provide effective protection against water ingress and ensure lubricant retention, enhancing durability and reducing maintenance needs.

Applications

The 6201 2RZ bearing is widely used in:

  • Electric Tools
  • Home Appliances
  • Office Equipment
  • Industrial Machinery
  • Agricultural Equipment
  • Automotive Systems
  • Consumer Electronics
  • Medical Devices

Its double rubber seals ensure effective protection against contaminants and reliable lubricant retention, making it suitable for applications requiring smooth, quiet, and durable operation under various conditions.

Additional Information

For samples, custom sizes, or more specific information about the 6201 2RZ bearing, please contact us for professional support and customized services.
