6700 Deep Groove Ball Bearing 10mm X 15mm X 3mm Thin Section Robot Bearings 61700
6700 Deep Groove Ball Bearing 10mm X 15mm X 3mm Thin Section Robot Bearings 61700
Specifications
Brand Name :
CNBTZC or OEM
Model Number :
6700
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
50000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Delivery Time :
2-4 weeks
Packaging Details :
plastic tub/middle box,carton,pallet
Model Numbers: :
6700 Deep Groove Ball Bearing
Bearing Seals :
Open,ZZ or 2RS available
Interchange :
FAG 6700, NTN W6700 ,B6700
Clearance :
Standard
Description

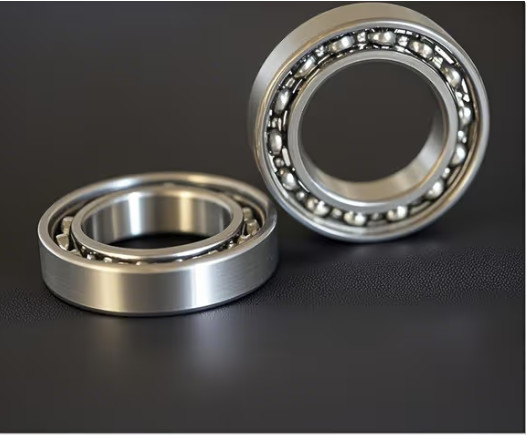

6700 Deep Groove Ball Bearings10mm X 15mm X 3mm Thin Section Robot Bearings 61700

The 6700 deep groove ball bearing, with dimensions of 10 mm inner diameter × 15mm outer diameter × 3mm width, is renowned for its compact size, high-speed capability, and low noise characteristics.


Bearing Number		 Boundary Dimensions(mm) Basic Load Rating(N) Limiting Speed(rpm) Reference(kg)
Weight
Inner Diameter Outer Diameter Width Chamfer Dynamic Static Grease Oil
d D B B1 r(min) Cr Cor Non-contact Wt ≈
61700 ZZ 10 15 3 4 0.1 800 390 34000 40000 0.00190
61701 ZZ 2RS 12 18 4 4 0.2 910 530 32000 38000 0.00310
61702 ZZ 2RS 15 21 4 4 0.2 850 490 28000 32000 0.00360
61703 ZZ 2RS 17 23 4 4 0.2 960 610 26000 30000 0.00400
61704 ZZ 2RS 20 27 4 4 0.2 1030 720 23000 28000 0.00590
61705 ZZ 2RS 25 32 4 4 0.2 1090 830 19000 23000 0.00700
61706 ZZ 2RS 30 37 4 4 0.2 1170 980 16000 19000 0.00830
61707 ZZ 2RS 35 44 5 5 0.3 1850 1630 14000 17000 0.01500
61708 ZZ 2RS 40 50 6 6 0.3 2519 2234 12000 15000 0.02300
61709 ZZ 2RS 45 55 6 6 0.3 2577 2401 9000 13000 0.02500
61710 ZZ 2RS 50 62 6 6 0.3 2666 2636 7000 10000 0.03400
61711 ZZ 2RS 55 68 7 7 0.3 2880 3070 5000 8000 0.05500

6700 Ball Bearings 10X15X3mm Specifications & Dimensions

Universal 6700
Type Deep Groove Ball
Inner/Outer Ring/ Ball Material Chrome Steel
Cage Material Steel/Nylon
CageType Punching
Precision P0,P6
Inner Dimension d(Ø)(mm) 10
Outer Dimension D(Ø)(mm) 15
Width B (or T)(mm) 3
Lubrication Grease
Load Direction Radial
Specifications/Environment Standard
Number of Raceway Ring Rows Single Track
Size Standards Metric Series

The 6700 deep groove ball bearing is widely used across various specialized fields due to its compact size and high precision. Application areas include:

1. Automotive and Transportation Equipment

  • Used in automotive motors, transmission systems, suspension systems, and braking systems, supporting high-speed operation and lightweight design.

  • Thin-wall design bearings are suitable for lightweight bicycles, improving transmission efficiency.

2. Industrial Equipment and Mechanical Manufacturing

  • Commonly found in CNC machinery, textile machinery, gear reducers, vacuum chucks, air hammers, and other equipment, capable of bearing radial and axial loads.

3. Medical and Precision Instruments

  • Used in surgical devices, diagnostic instruments, optical equipment, etc., relying on their high precision, low noise, and corrosion resistance.

  • In micro motors and encoders, 6700 bearings support high-speed and stable operation.

4. Home Appliances and Consumer Electronics

  • Found in washing machines, power tools, cooling fans, and other products, where thin-wall designs save space and extend service life.

  • Smart locks, remote control toys, and other small appliances depend on their wear resistance and low friction characteristics.

5. Special Environments and High-End Fields

  • Applied in aerospace, robotics, energy equipment, and other advanced sectors.
